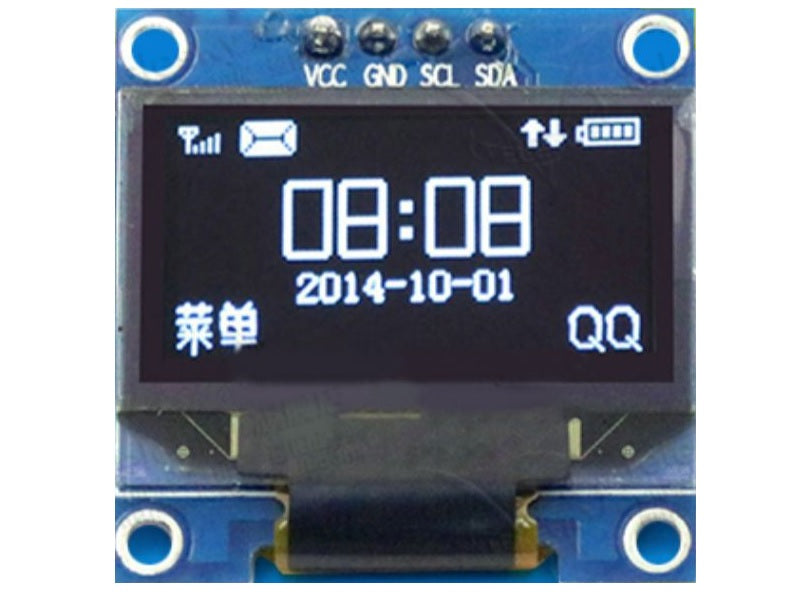

OLED-0.96'-WHITE
Add a compact white OLED to your project.
Show text, icons and sensor readings on a 0.96-inch, 128 × 64 white OLED. The SSD1306 display uses I2C and a compact 27 × 27 mm footprint for embedded interfaces.
Before you order: Check the display interface, power and pinout against your host. Use the appropriate driver or library for this display.
Features
- White monochrome display for text, icons and graphics.
- I2C interface for a compatible host controller
- Arduino library available for the SSD1306 controller.
| Compact footprint | 27 × 27 mm |
|---|---|
| Operating supply | 3.3–5 V |
| Display area | 21.744 × 10.864 mm |
| Resolution | 128 × 64 pixels |
Specifications
| Screen size | 0.96 inch |
|---|---|
| Interface | I2C |
| Dimensions | 27x27mm |
| Resolution | 128x64 pixels |
| Display area | 21.744x10.864mm |
| Working voltage | 3.3V-5V |
| Pixel color | white |
| Contrast ratio | 2000:1 |
| Driver IC | SSD1306 |
| Display mode | Passive Matrix OLED (PMOLED) |
Trade information
| HSCODE | 8543709990 |
|---|---|
| USHSCODE | 8517620090 |
Getting started
- Confirm the display interface, pinout and supply.
- Connect a suitable host and install the relevant driver or library.
- Start with a simple text or display-test example before adding your application.
Frequently asked questions
What do I need to drive the display?
Use a compatible controller and the interface described above. Depending on the display, this can require a software library, display driver or suitable segment-driving circuitry.
Is this a color display?
This version uses white monochrome pixels.
Documentation & downloads
Custom projects & bulk orders
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request. Longan Labs also provides Product Customization Services for suitable electronics projects.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
