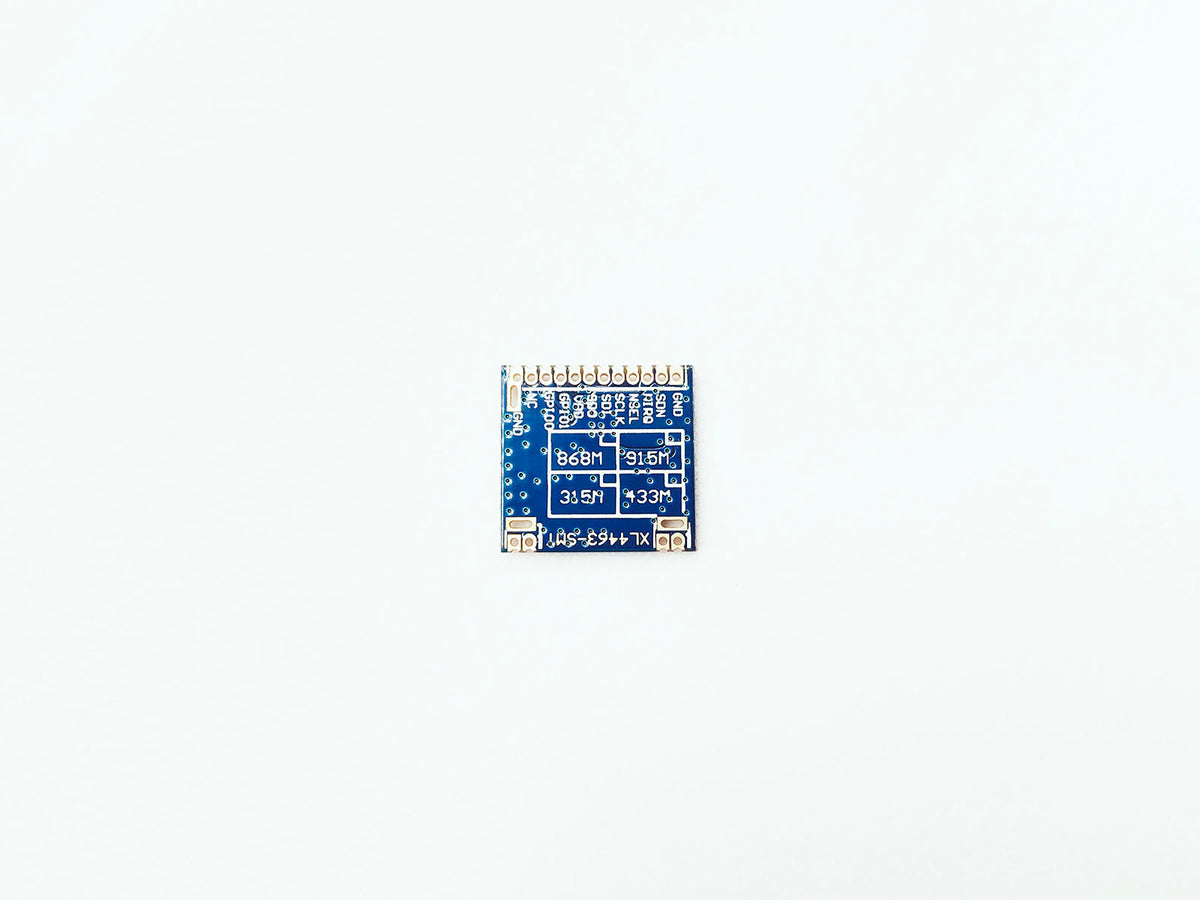

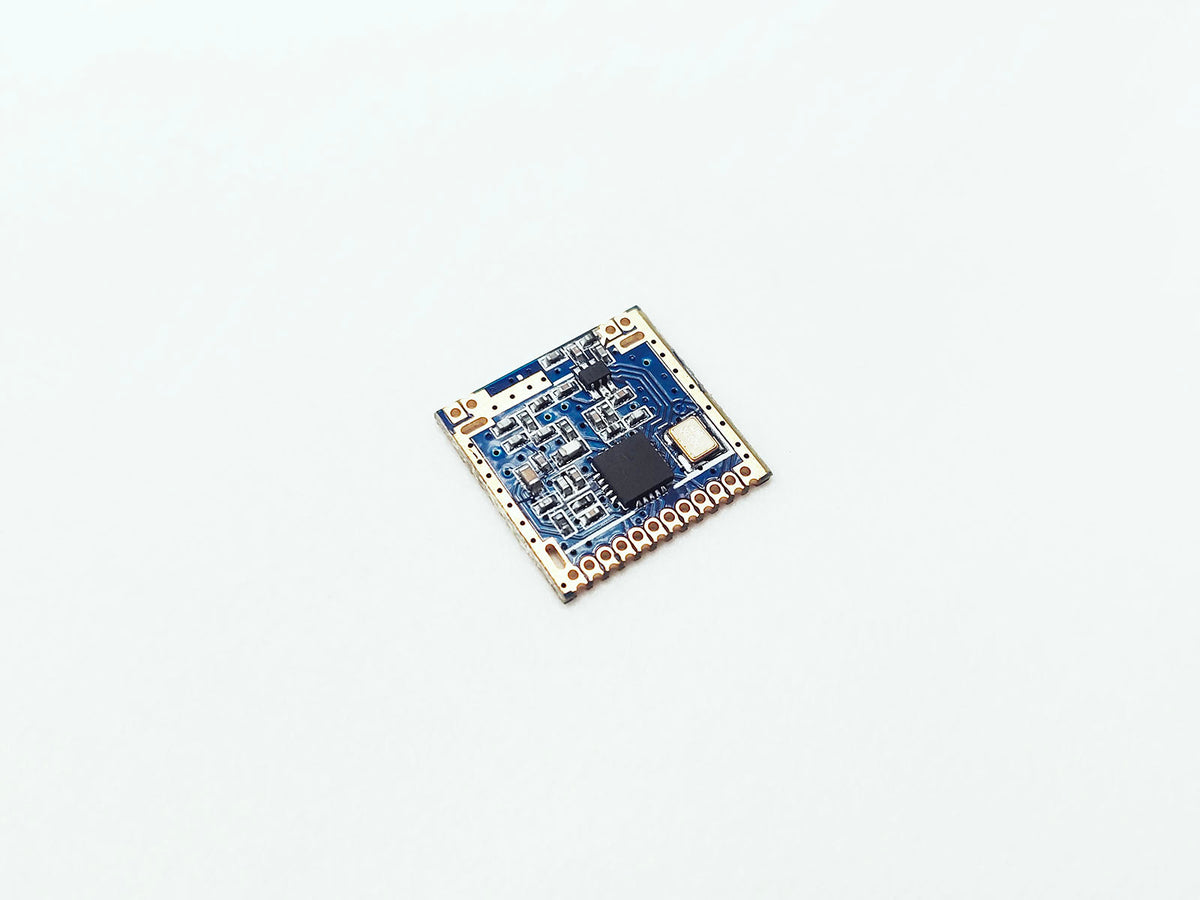

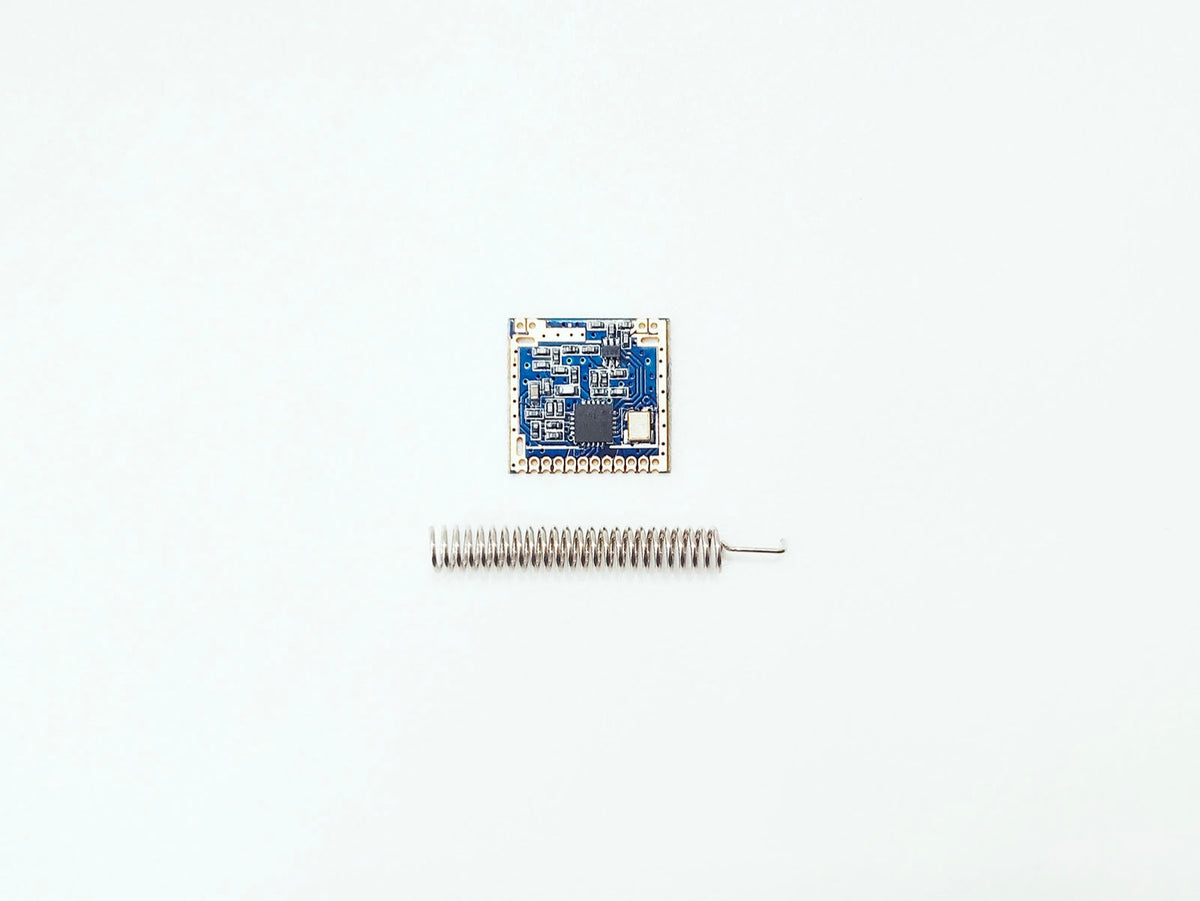

XL4432-SMT WIRELESS TRANSCEIVER
Build a sub-GHz wireless communication link.
Use an Si4432-based XL4432-SMT transceiver module for a custom wireless link. The listed module band is 410–440 MHz, with FSK, GFSK and OOK modulation options.
Before you order: Check the physical interface, power and signal levels for your host. Match the communication settings at both ends.
Features
| Input voltage | 1.8~3.6V |
|---|---|
| Frequency | 410~440MHz |
| Modulation mode | FSK, GFSK, OOK |
| Sensitivity | -120~-121dBm(1.2Kbps) |
| Maximum output power of wireless transmission | 20dBm(1.2Kbps, 433MHz) |
| Data transfer rate | 0.123~256kbps |
| Size | 17x16.6mm |
Pinout & connections
Frequently asked questions
Does the connector guarantee host compatibility?
Check the signal standard, logic levels, firmware or driver and communication settings. Matching physical connectors alone is not sufficient.
Documentation & downloads
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
XL4432-SMT Wireless Transceiver
SKU: 2120003
