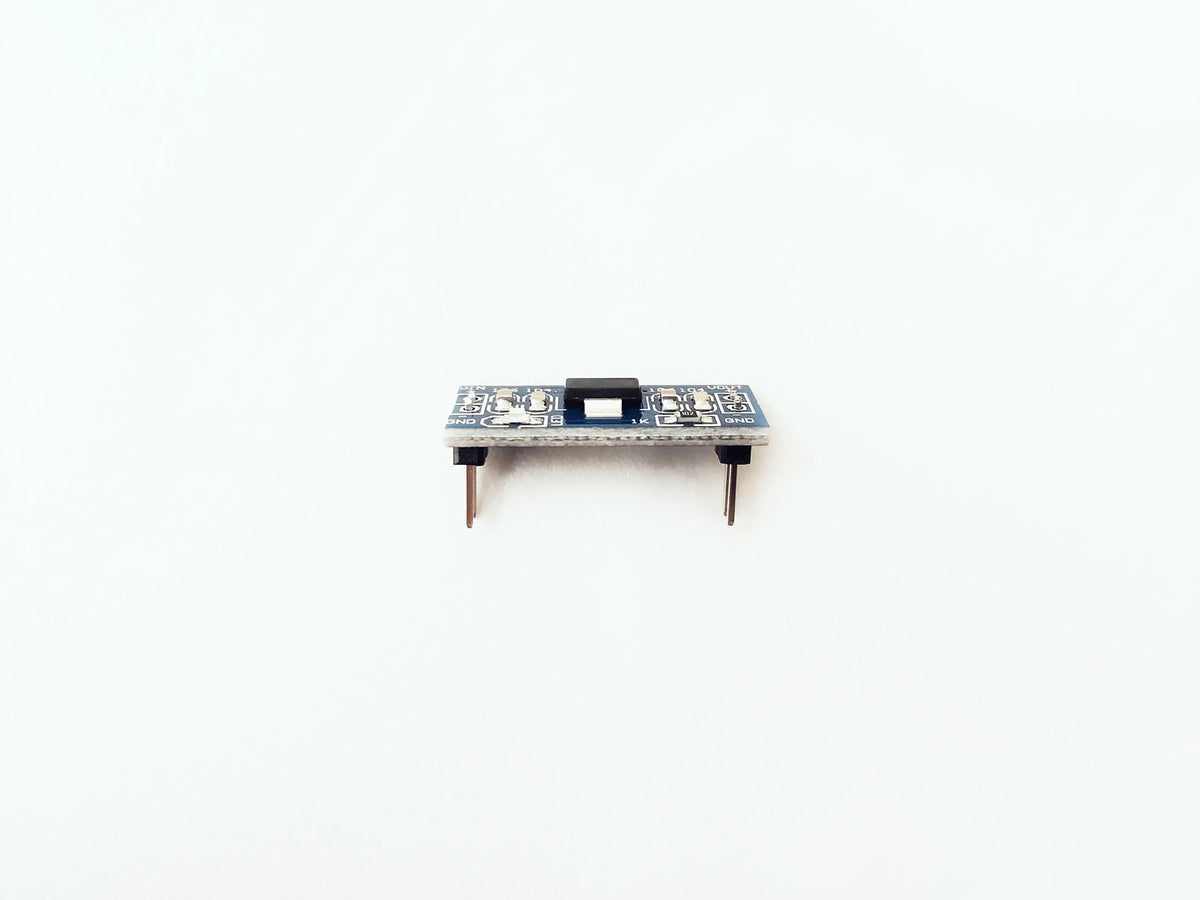

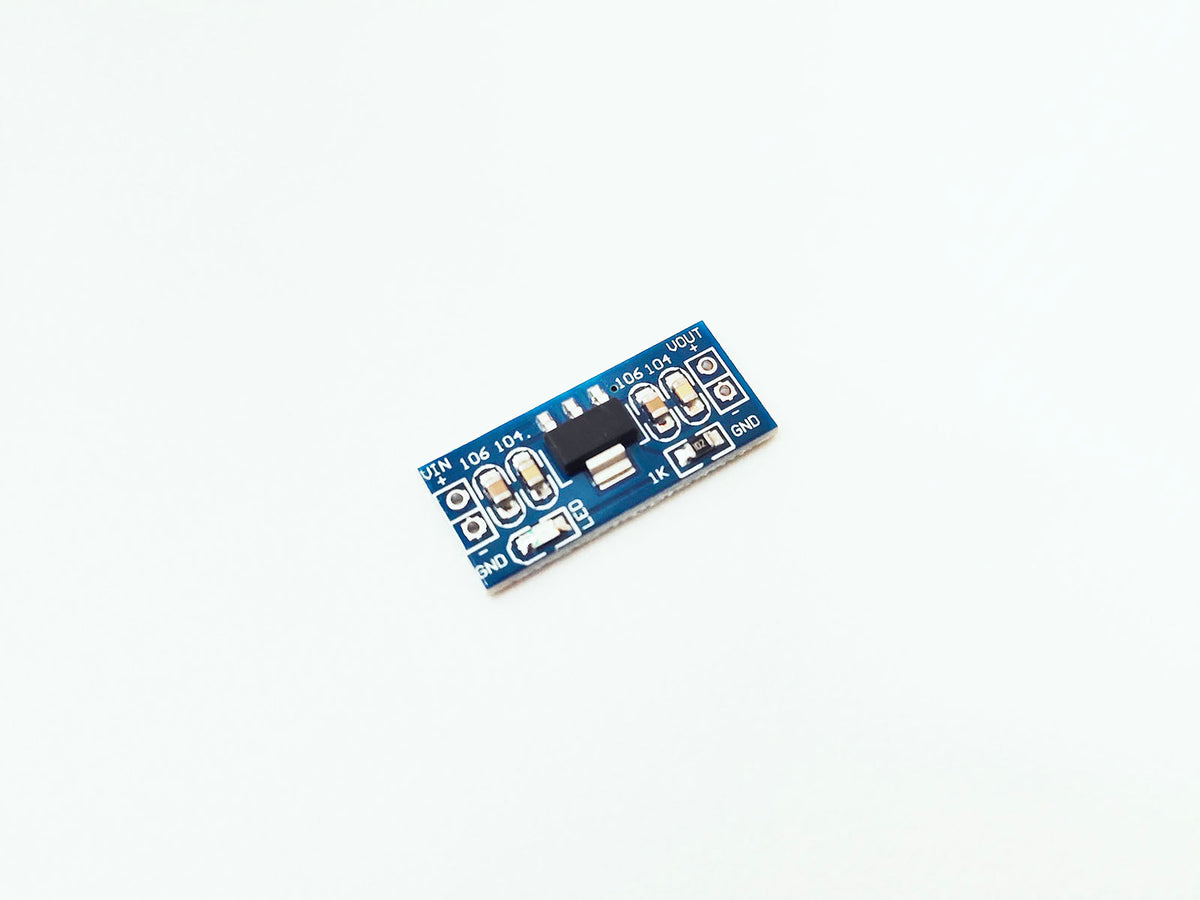

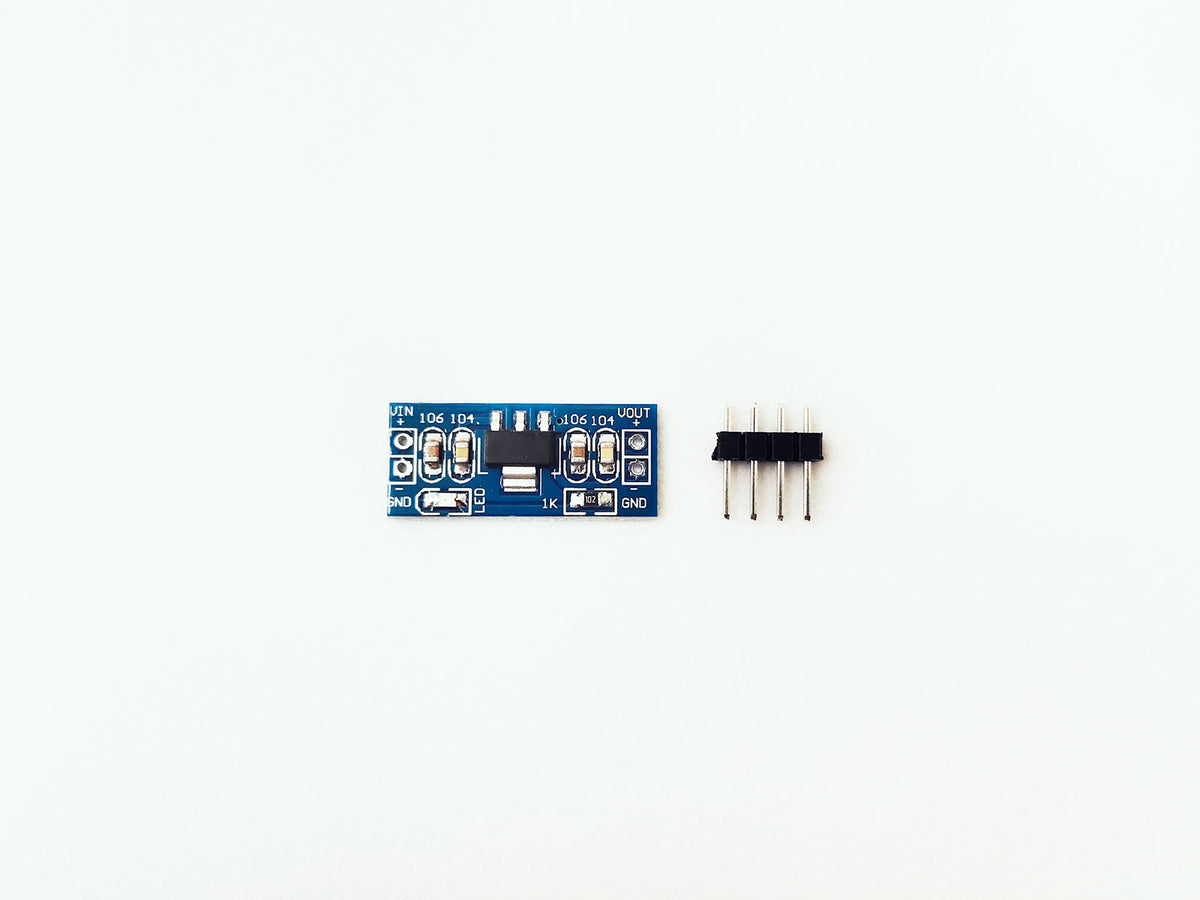

AMS1117-3.3 STEP-DOWN CONVERTER
Provide a regulated 3.3 V rail.
Use an AMS1117-3.3 linear-regulator module to supply a 3.3 V circuit from a higher DC input. Check voltage drop, load current and heat dissipation for your application.
Before you order: This is a power-conversion module. Set and measure the output before connecting a load, and allow for current and thermal limits.
Features
| Input voltage | 4.5~7V |
|---|---|
| Output voltage | 3.3V |
| Output current | 0.8A(Max); allow for the thermal limits of the assembled module. |
| Size | 8.6x12.3mm |
Reference:
Getting started
- Verify input polarity and connect a suitable DC source.
- Set or confirm the output voltage using a meter.
- Connect the load and check voltage and temperature under the expected current.
Frequently asked questions
Can I use the maximum listed current continuously?
Available continuous current depends on the input/output voltage, cooling and load. Check temperature and output stability under the expected operating conditions.
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
