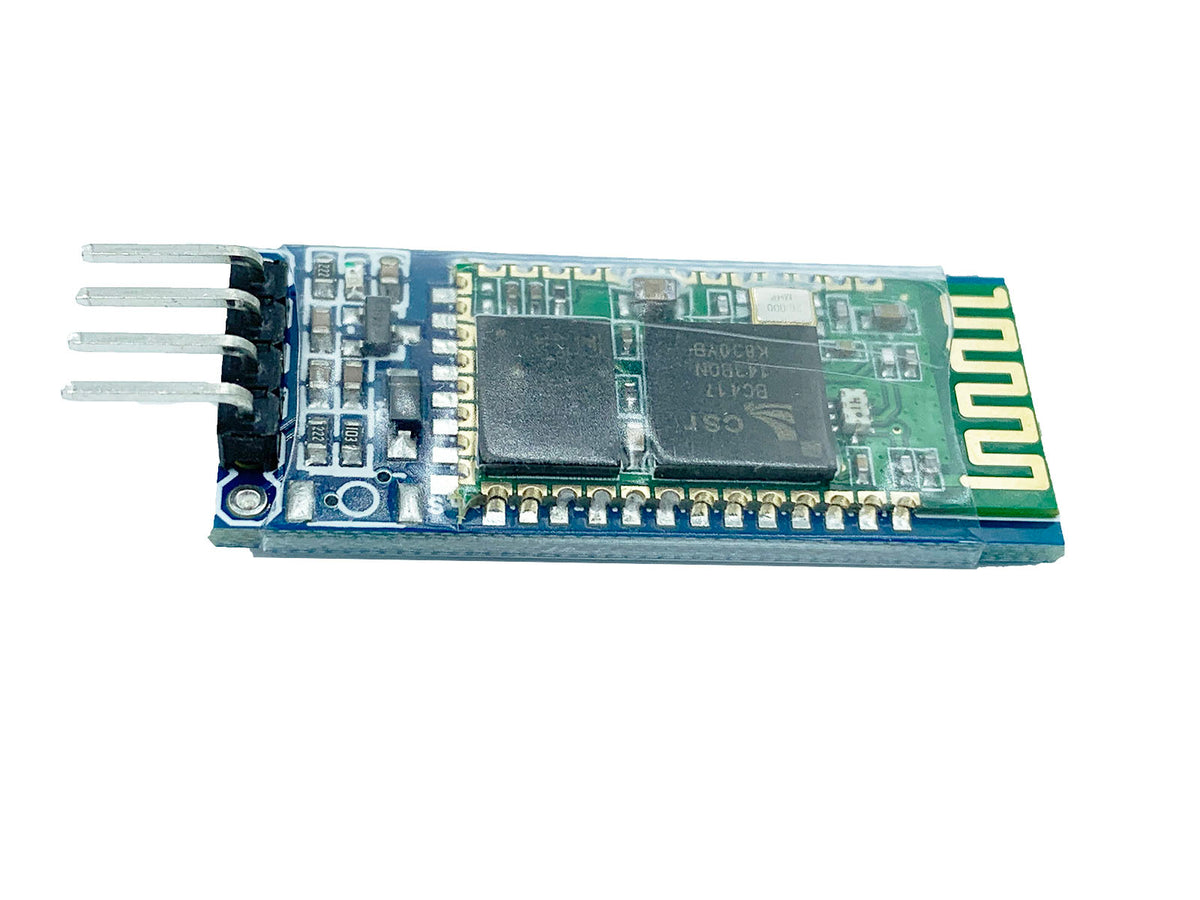

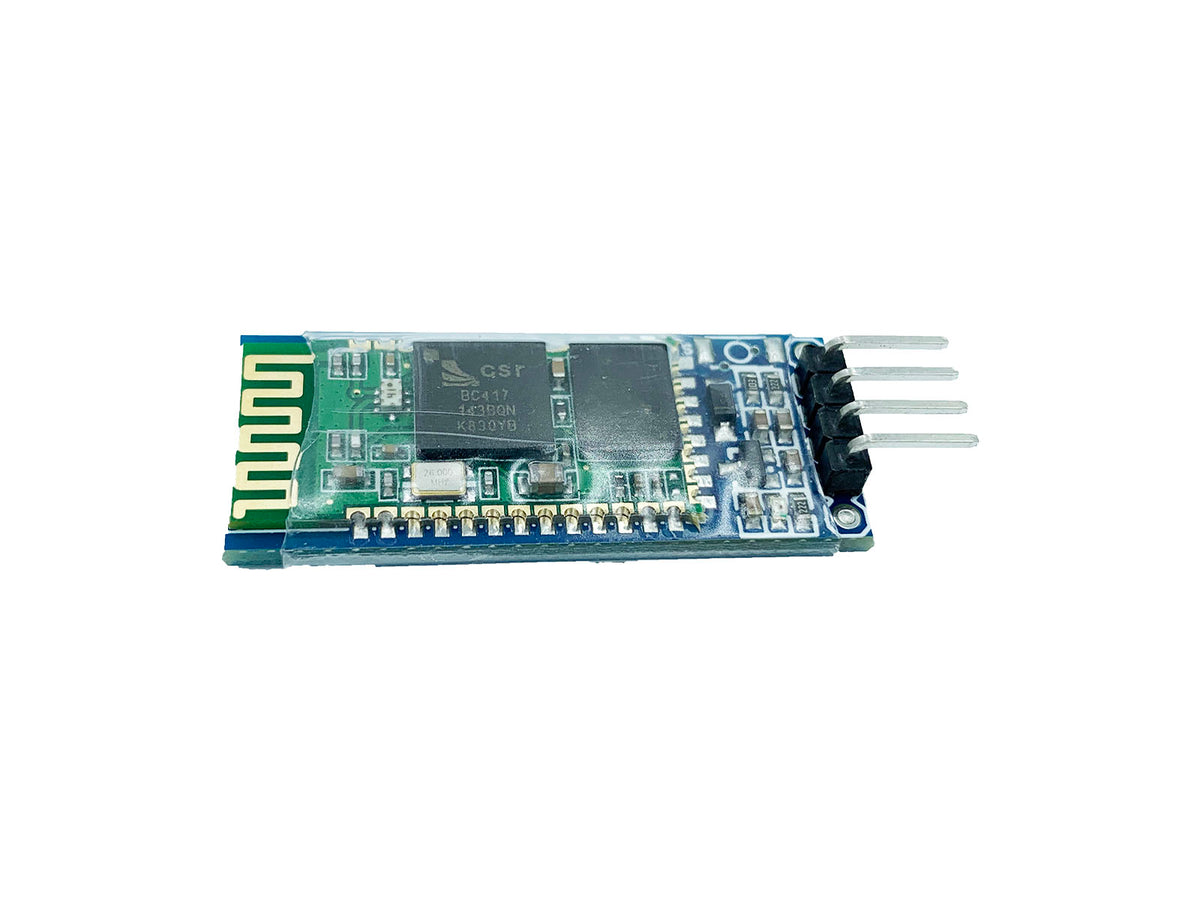

HC-06 SERIAL BLUETOOTH MODULE
Add a Bluetooth serial link to your MCU.
Connect an HC-06 module to a compatible UART host for wireless serial communication. Start with the documented default of 9600 baud and verify the host signal levels.
Before you order: Check the physical interface, power and signal levels for your host. Match the communication settings at both ends.
Features
| Input voltage | 3.6~6V |
|---|---|
| Communication distance | 10m; actual range depends on the installation and environment. |
| Default baudrate | 9600 |
| Bluetooth protocol | 2.0 |
| Size | 37.3x15.5mm |

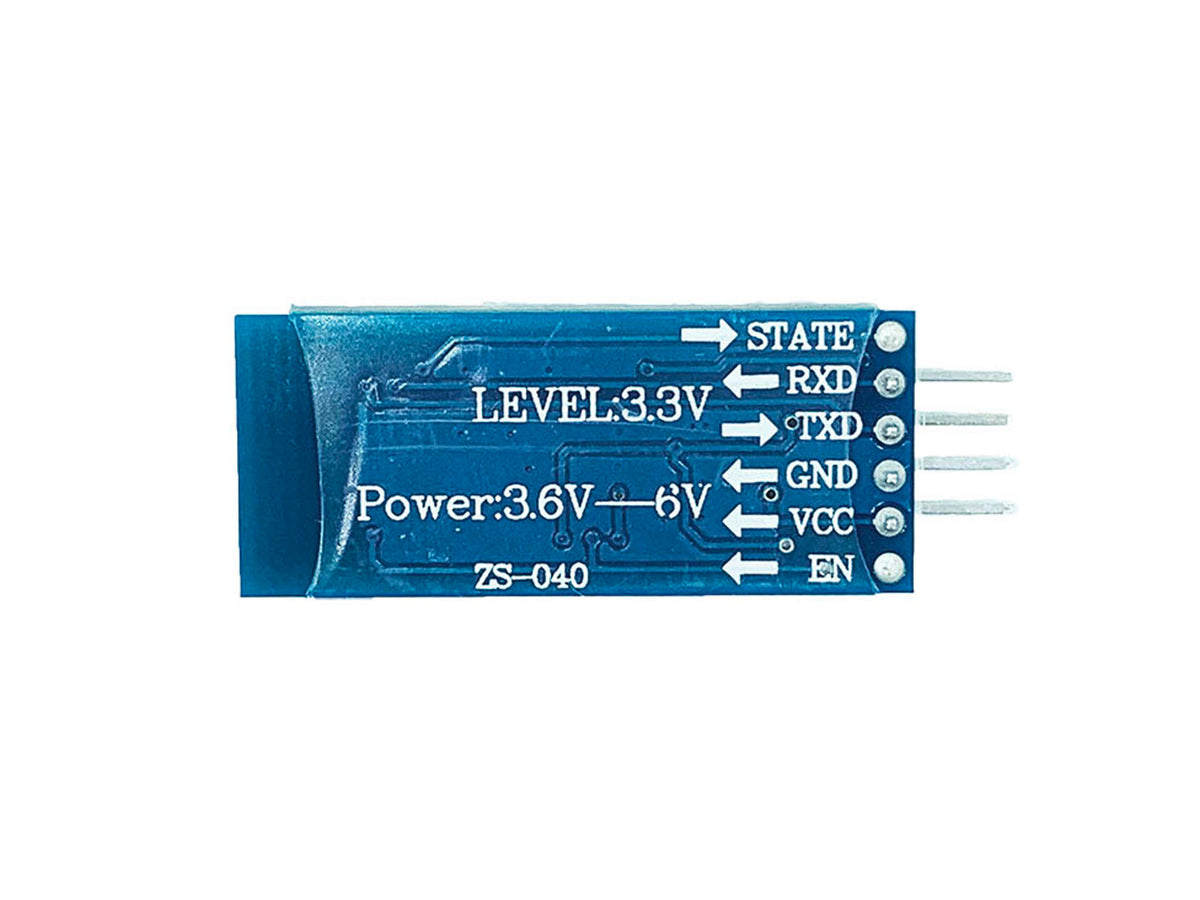

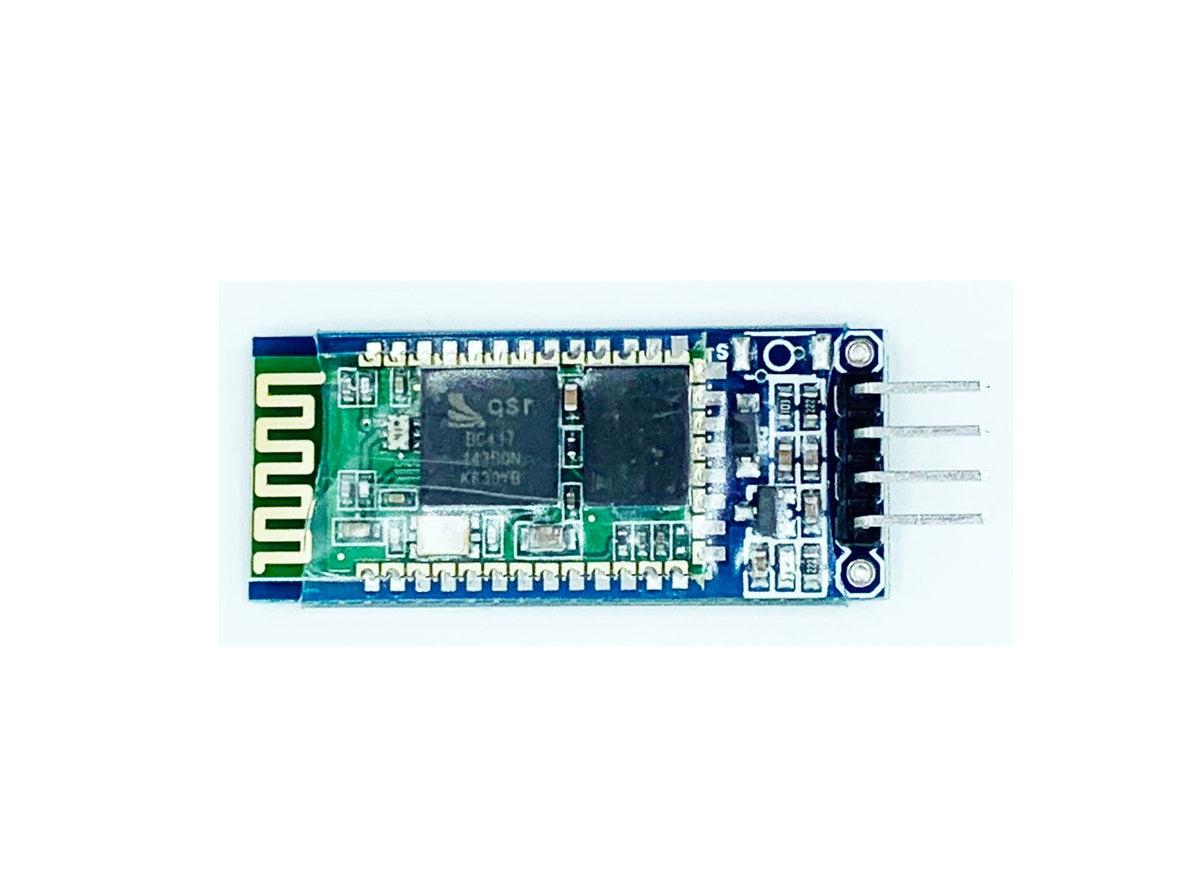

Pinout & connections
| VCC | Positive power supply, 3.6~6V |
|---|---|
| GND | Power negative |
| RXD | The Bluetooth module receives data from other devices |
| TXD | Bluetooth module sends data to other devices via TXD |
| EN | Connect to 3.3V to enter into AT mode |
AT commands
- Test ting
- Modify the baud rate
- Modify Bluetooth name
- Modify Bluetooth pairing password
- Get AT Command version
I n the case of not completing the pairing, the module works in AT mode. The default baud rate is 9600, the module Bluetooth name linvor, password 1234
Send: AT
Return: OK
Send: AT+BAUD1
Return: OK1200
1: 1200
2: 2400
3: 4800
4: 9600(default)
5: 19200
6: 38400
7: 57600
8: 115200
9: 230400
A: 460800
B: 912600
C: 1382400
Send: AT+NAMEname
Return: OKname
name is the current name to be set, within 20 characters.
eg:
Send: AT+NAMElongan_labs
Return:OKlongan_labs
Send: AT+PINxxxx
Return: OKsetpin
Send: AT+VERSION
Return: LinvorV1.n
Frequently asked questions
Does the connector guarantee host compatibility?
Check the signal standard, logic levels, firmware or driver and communication settings. Matching physical connectors alone is not sufficient.
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
