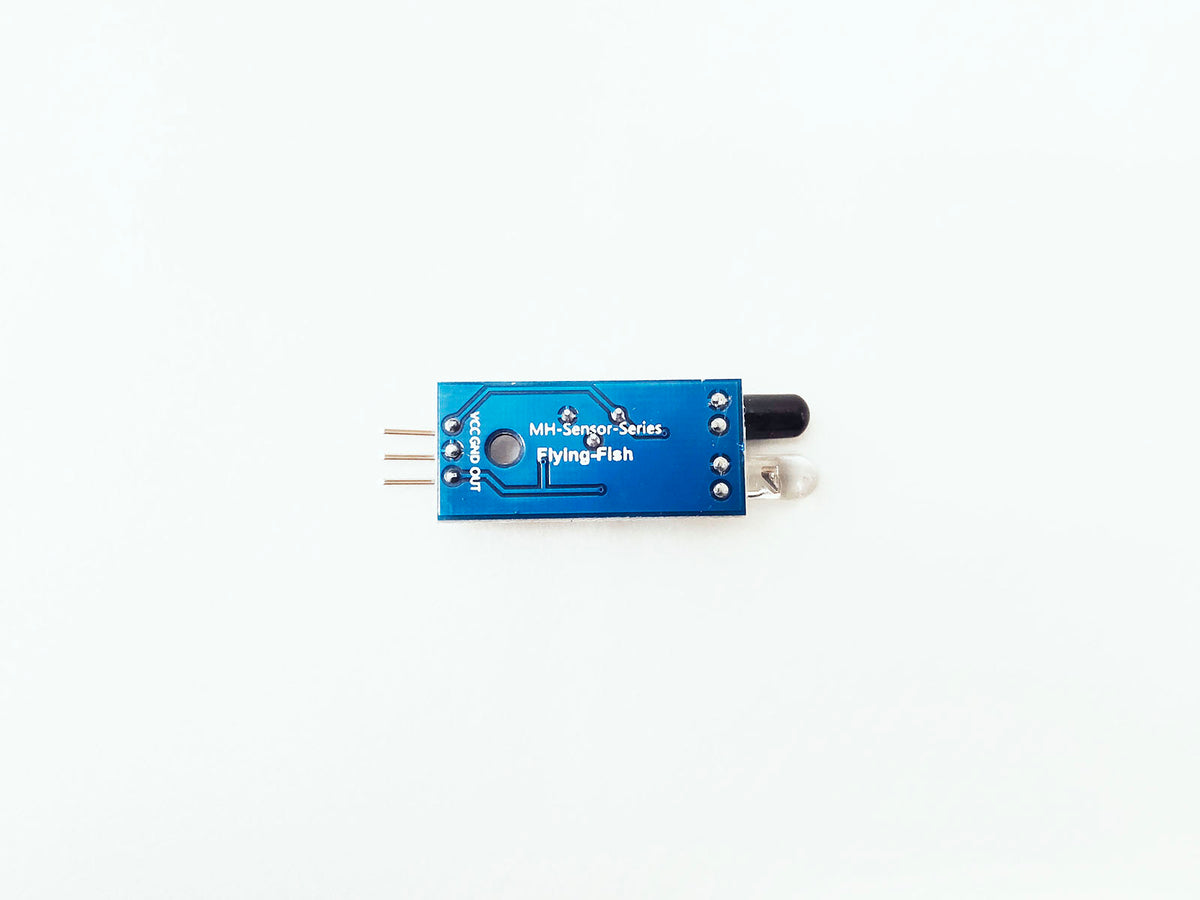

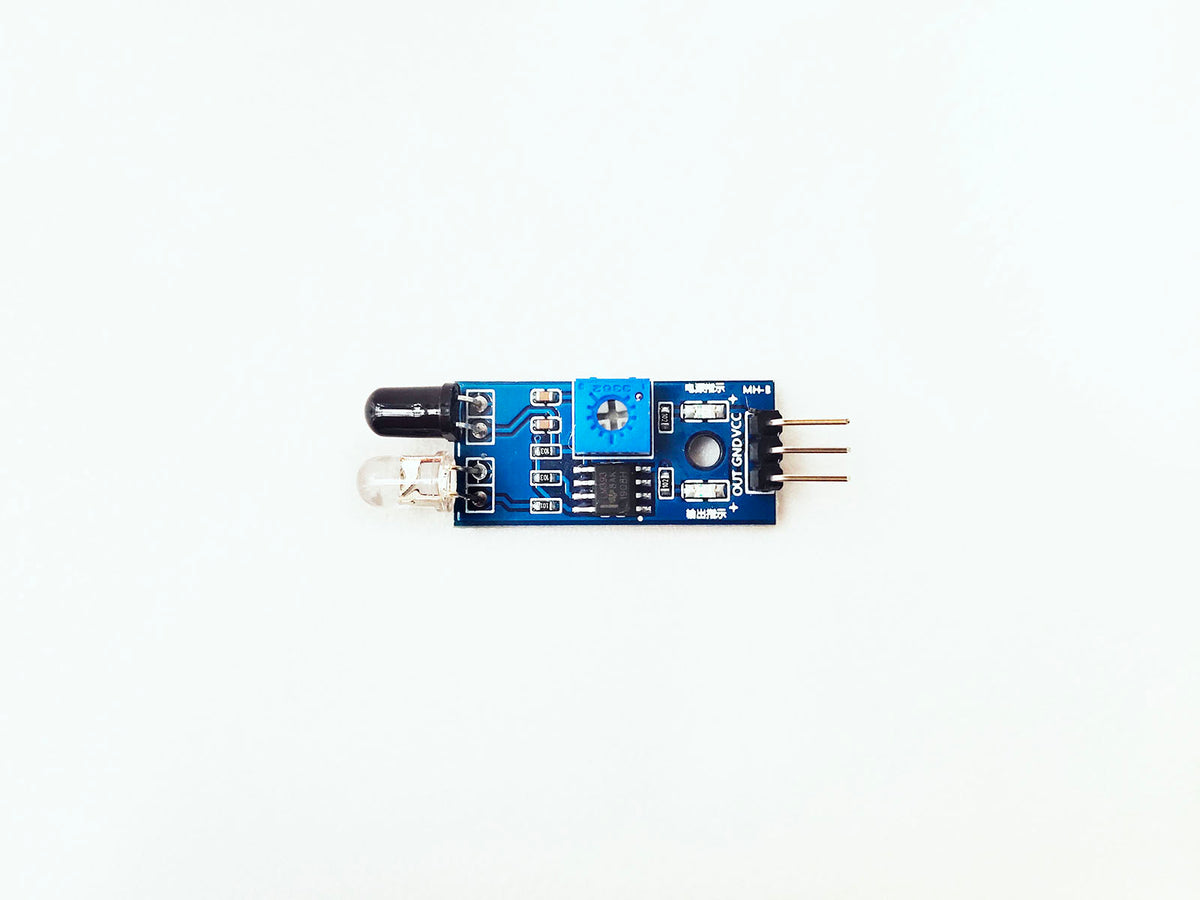

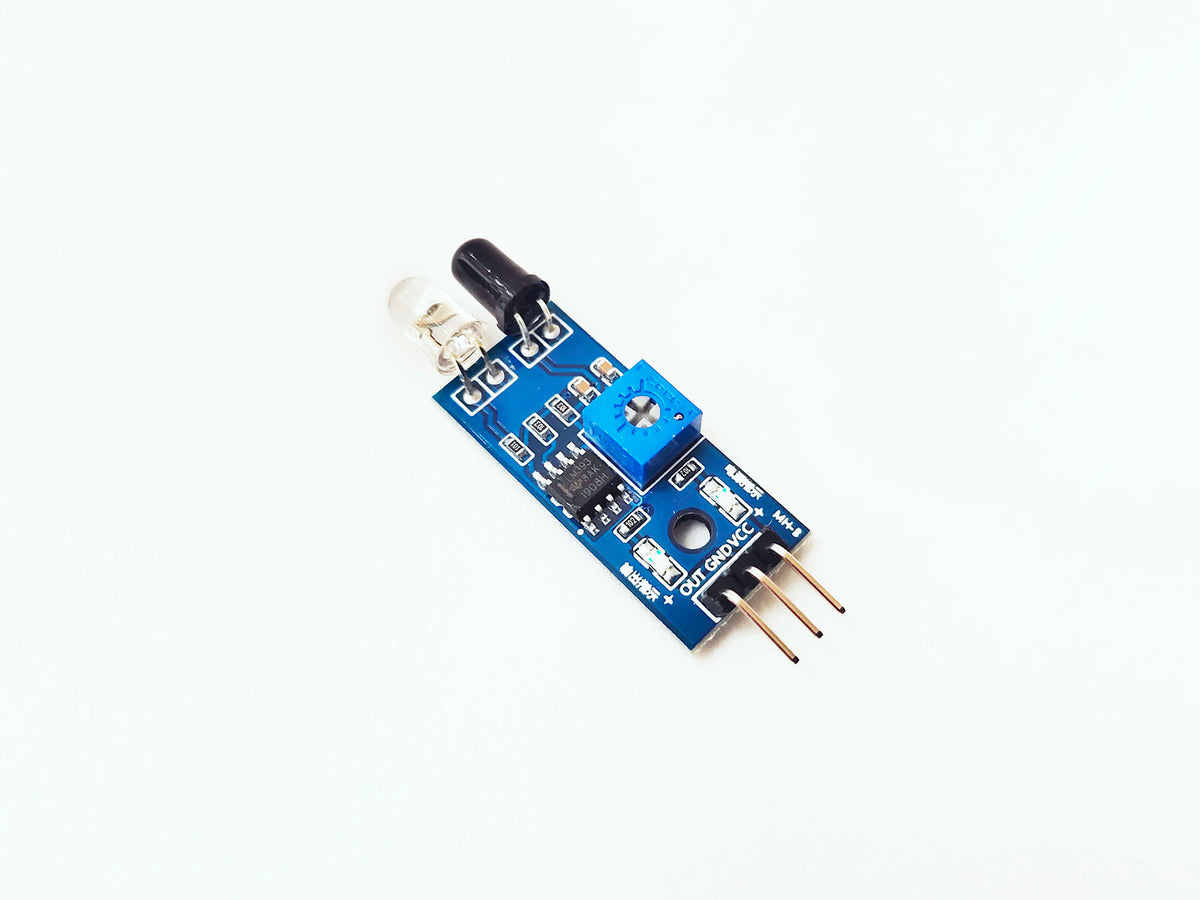

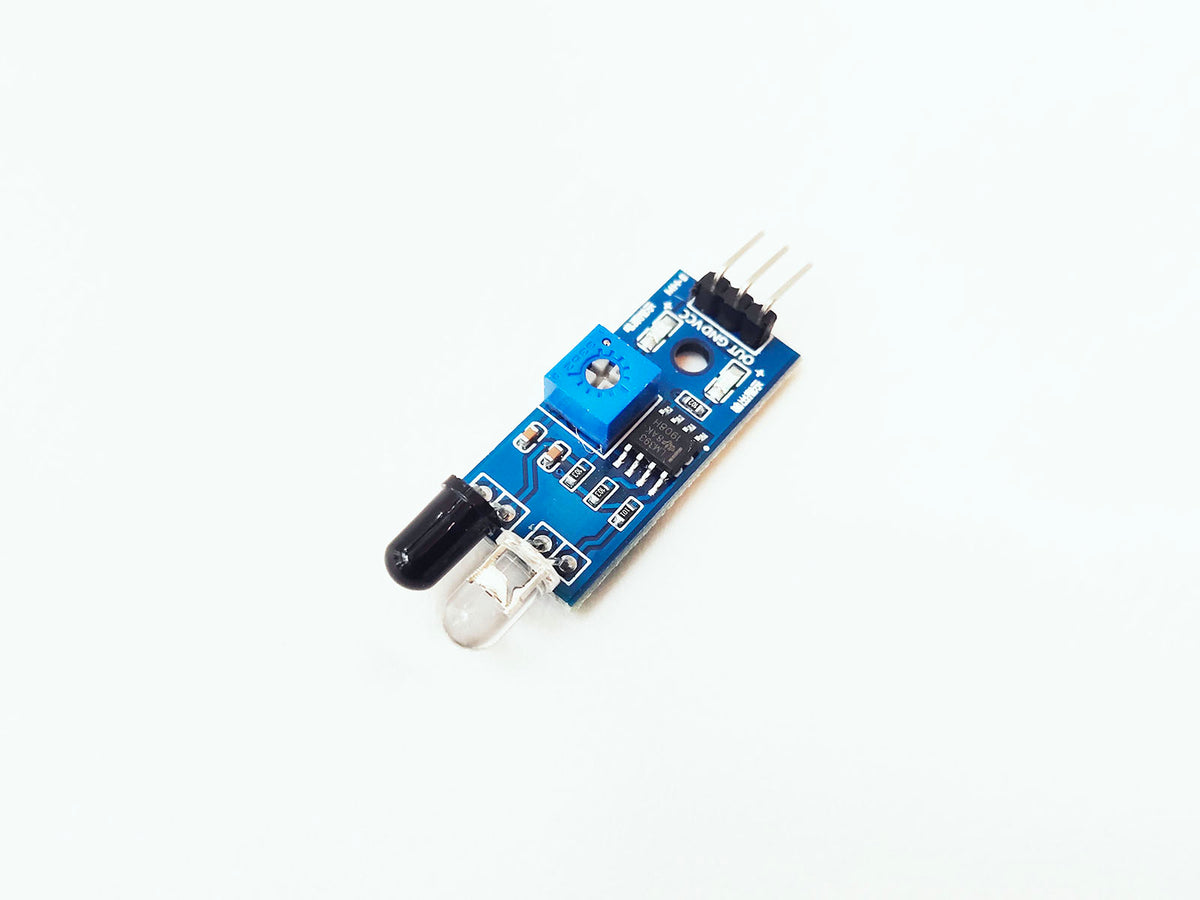

TCRT5000 INFRARED SENSOR
Detect a nearby reflective surface.
Use a TCRT5000-based reflective infrared sensor for line detection and object-sensing experiments. Adjust the sensitivity for the material, distance and lighting in your setup.
Before you order: Match power, signal levels and the connector pinout to your host before connecting the module.
Features
- TCRT5000 infrared sensor
- Adjustable sensitivity
| Input voltage | 3.3/5V |
|---|---|
| Size | 35x14mm |
How to Use
- VCC connected to 3.3V or 5V
- GND connected to GND
- OUT connected to MCU (such as Arduino)
Getting started
- Confirm the power, ground and signal pinout.
- Connect to a suitable input or bus on your controller.
- Read a basic sample and check its response in the intended environment.
Frequently asked questions
Can I use the reading directly in my application?
Check the response with your host and the conditions where it will be used. Analog signals and threshold outputs require different processing from digital measurements.
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
