DS18B20 DIGITAL TEMPERATURE PROBE WATER-PROOF STAINLESS STEEL
Read temperature with a stainless-steel probe.

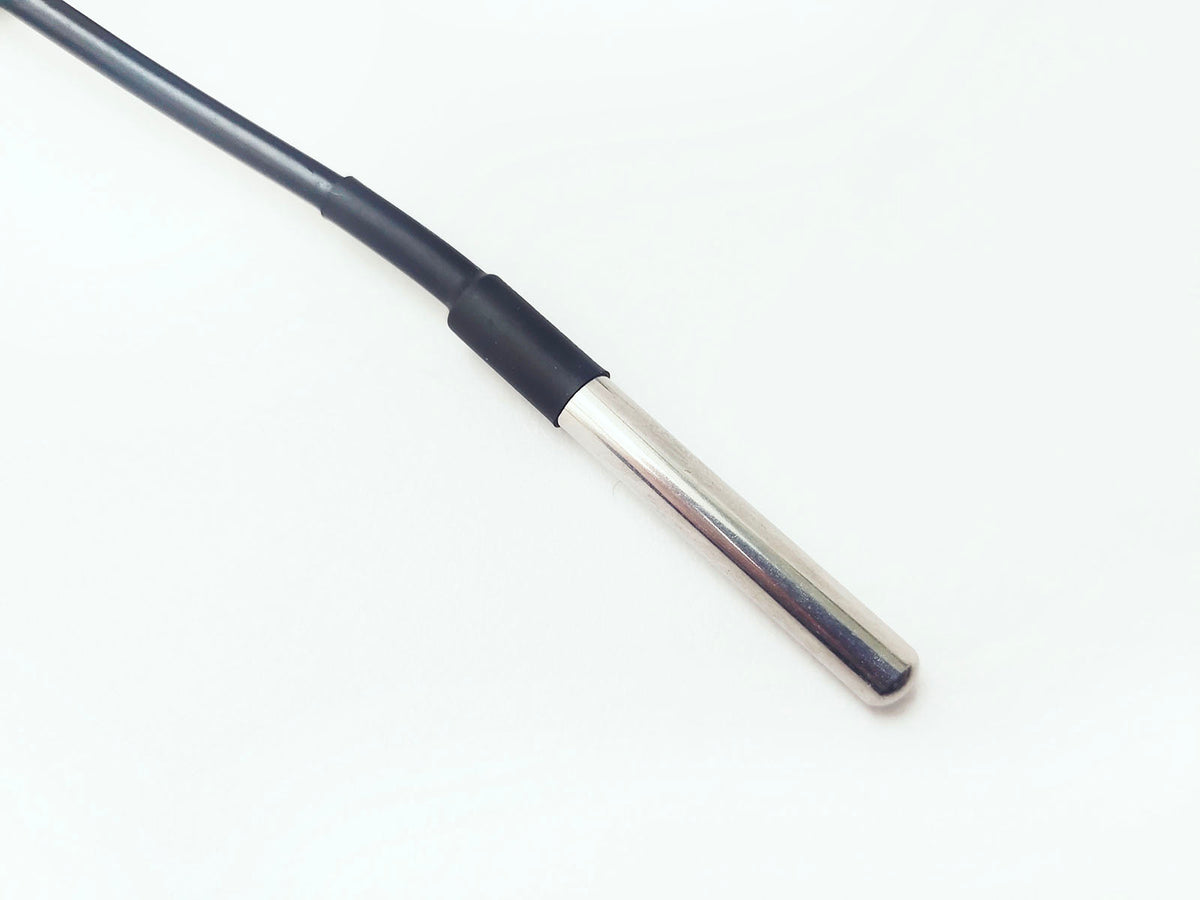

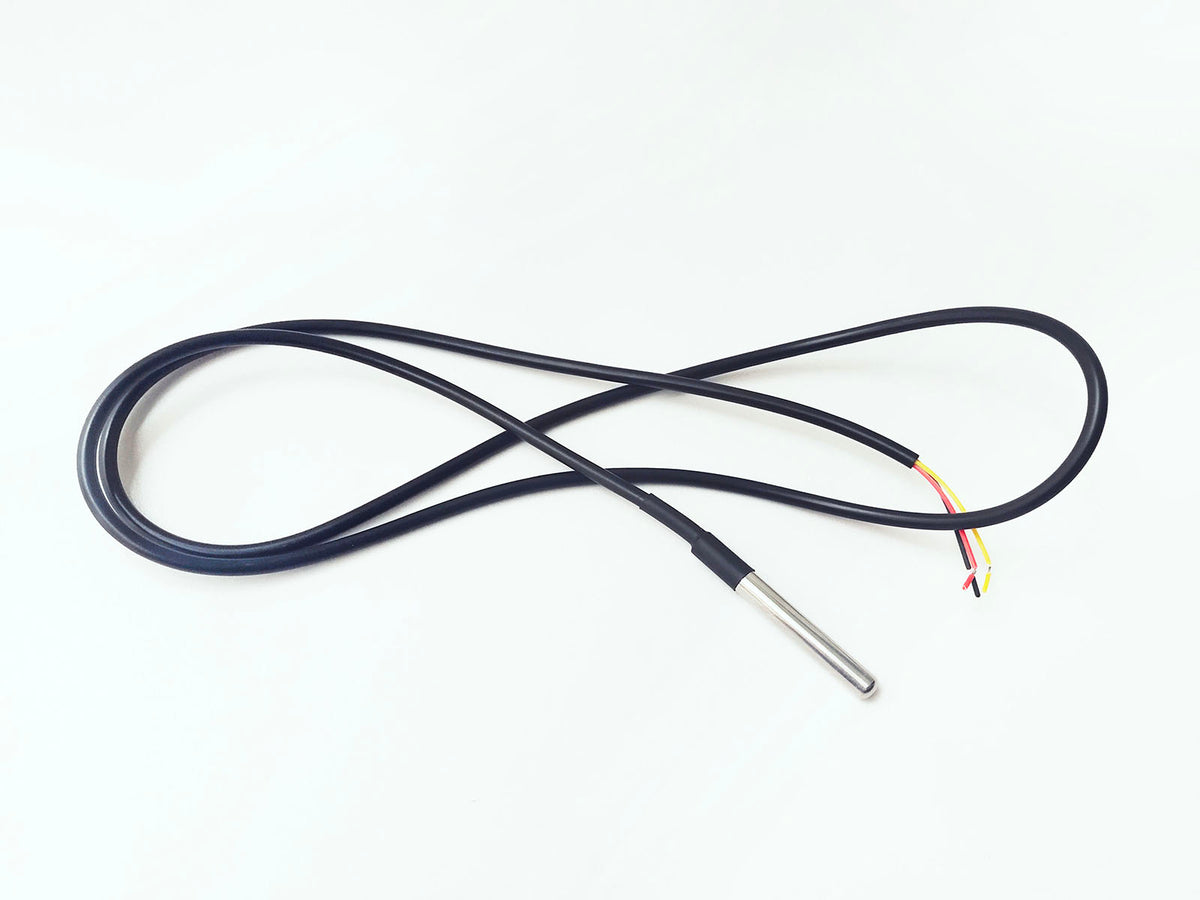

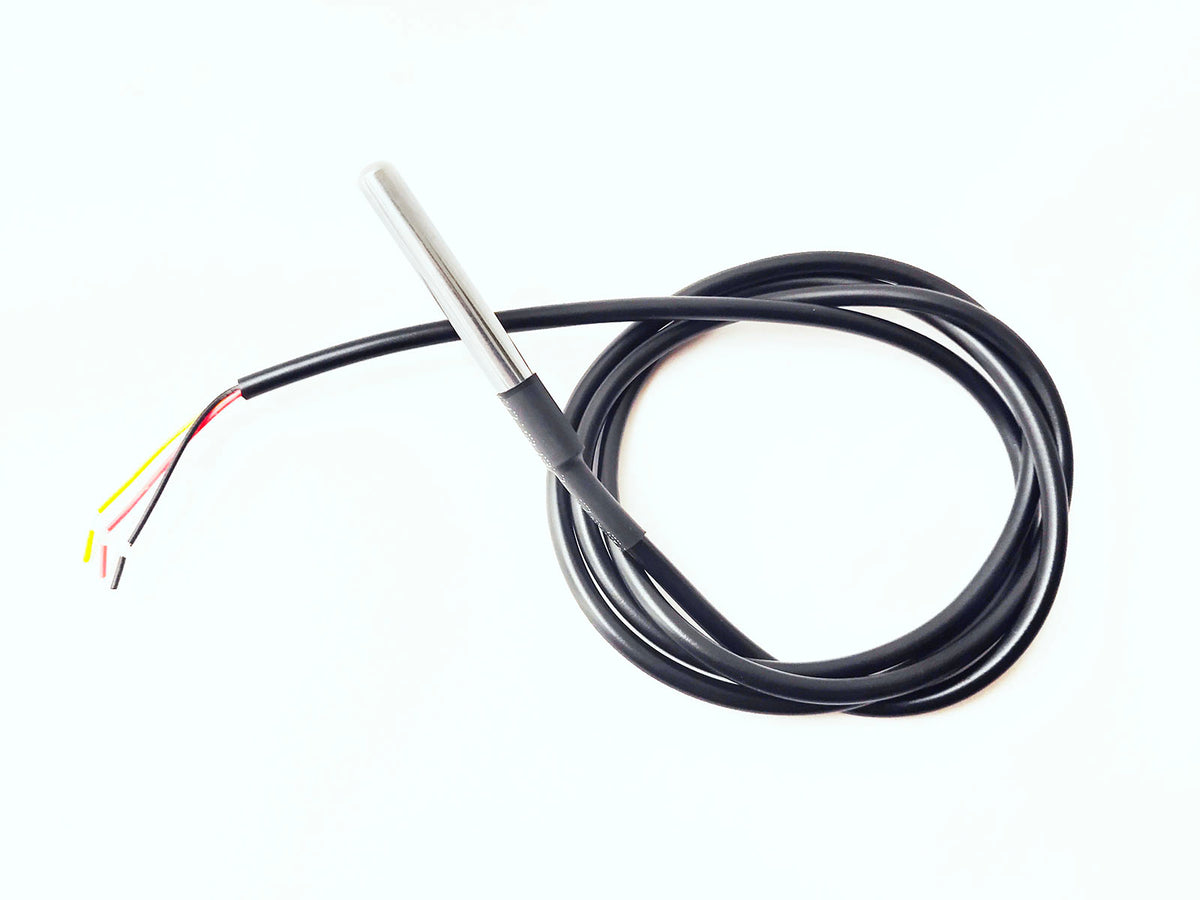

Use a DS18B20 digital probe with a one-meter cable for remote temperature measurements. The stainless-steel probe connects through VCC, data and ground wires.
Before you order: Match power, signal levels and the connector pinout to your host before connecting the module.
Features
| Length | 1m |
|---|---|
| Supply voltage | 3.0~5.5V |
| Working temperature | -55℃~125℃ |

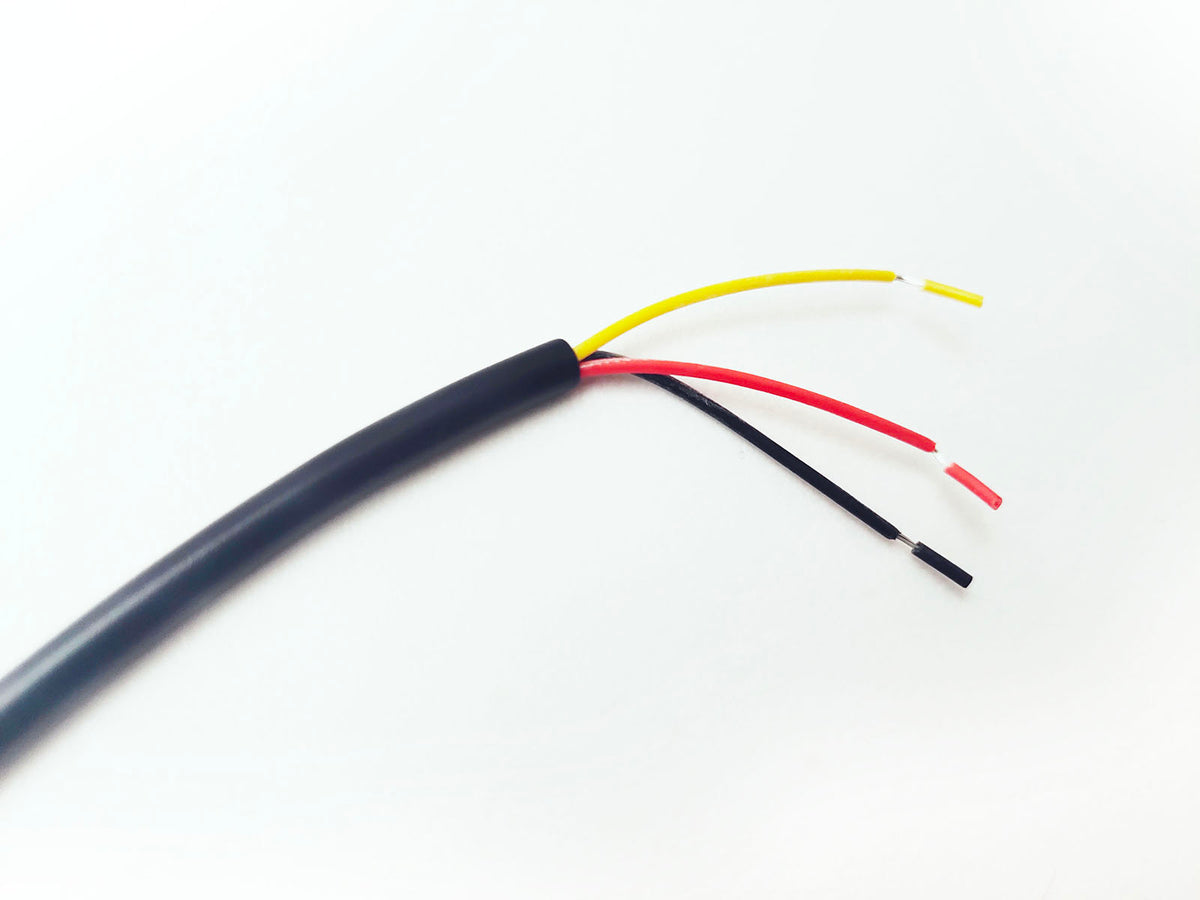

| Wire | Red(VCC), Yellow(DATA), Black(GND) |
Additional technical details
- DS18B20 accuracy: ±0.5 °C from −10 °C to +85 °C. Installation and thermal contact affect the probe response.
- Each DS18B20 has a unique identifier for host addressing.
Getting started
- Confirm the power, ground and signal pinout.
- Connect to a suitable input or bus on your controller.
- Read a basic sample and check its response in the intended environment.
Frequently asked questions
Can I use the reading directly in my application?
Check the response with your host and the conditions where it will be used. Analog signals and threshold outputs require different processing from digital measurements.
Documentation & downloads
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
