MAX7219 8X8 LED MATRIX - GREEN
Display a pattern on an 8 × 8 LED matrix.

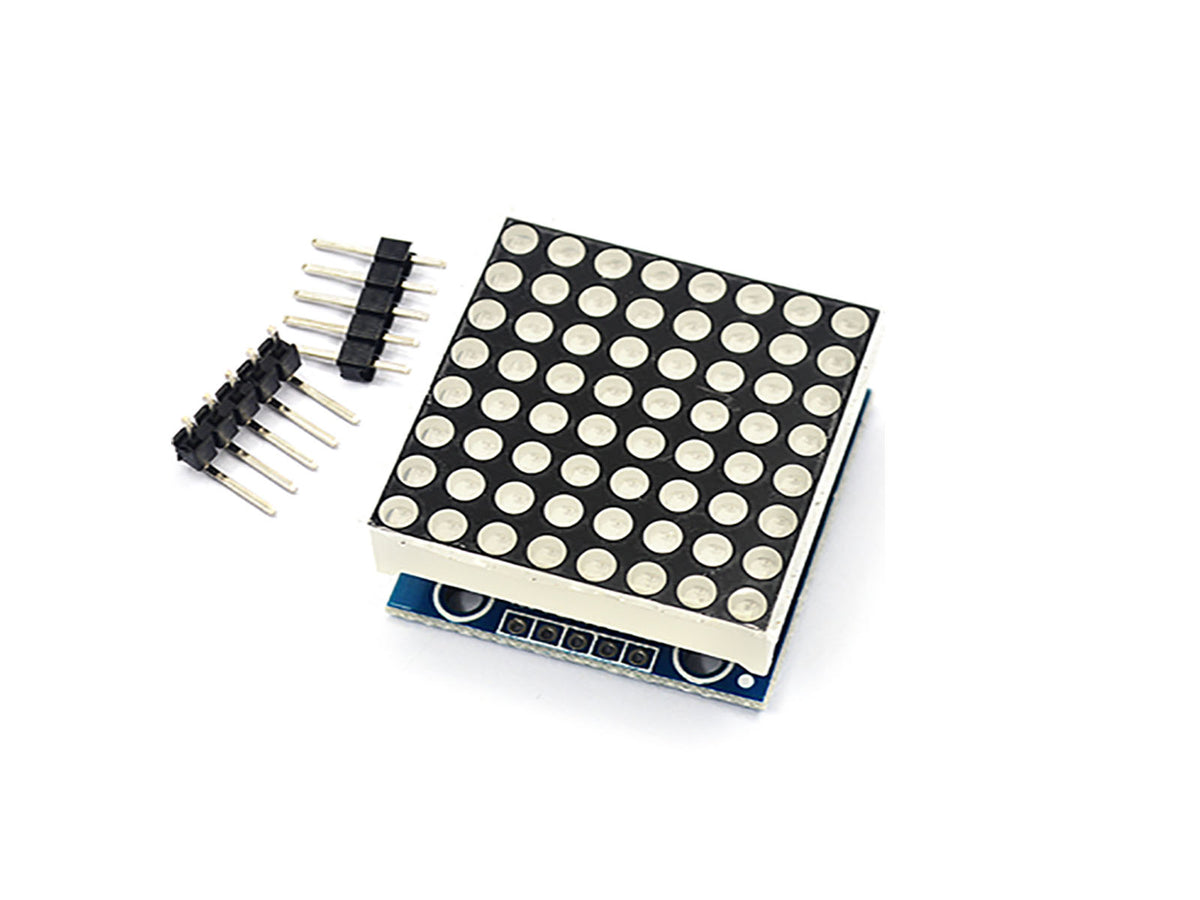

Add a green LED matrix with an integrated MAX7219 display driver. Use one module or a compatible chained arrangement to show patterns, symbols and scrolling displays.
Before you order: Check the display interface, power and pinout against your host. Use the appropriate driver or library for this display.
Features
| Input voltage | 5V |
|---|---|
| Size | 32x32x13mm |
| Color | Green |

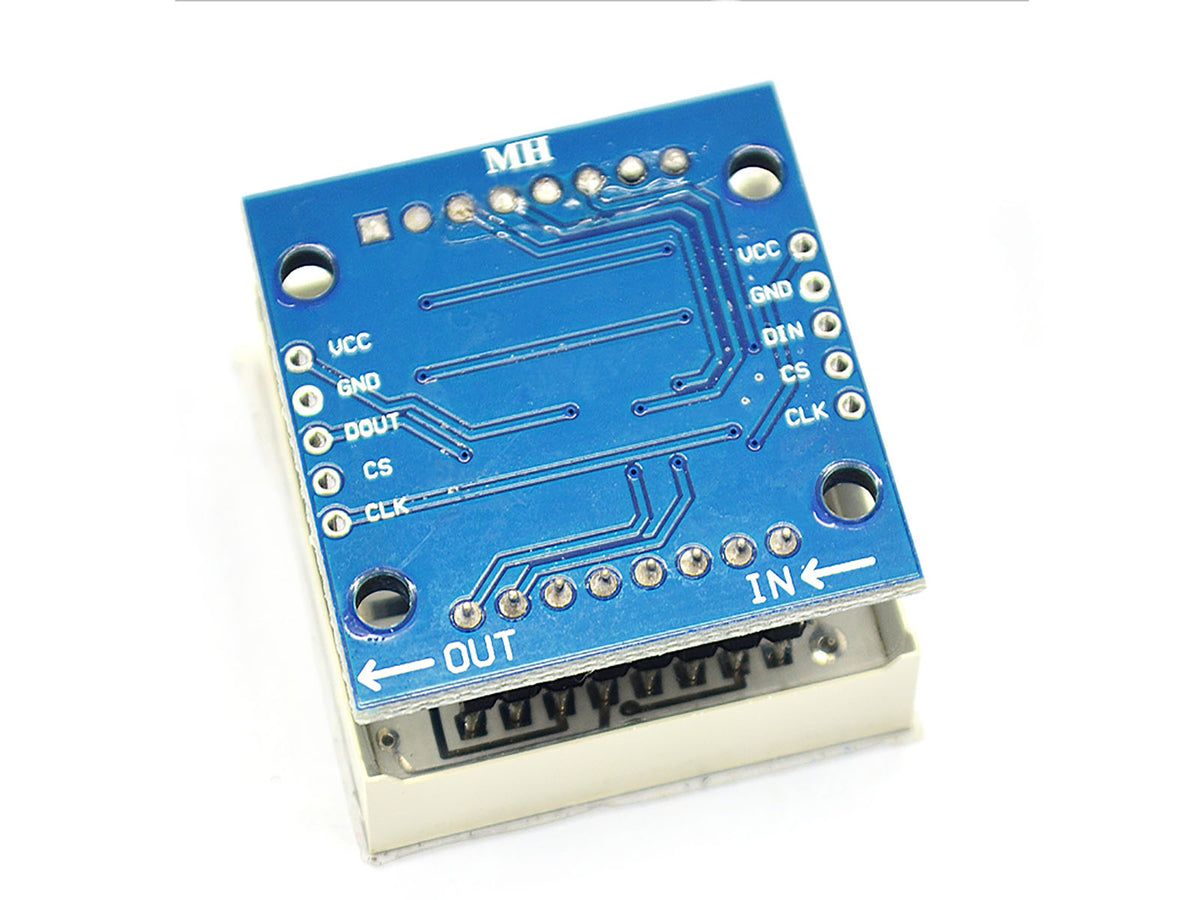

Pinout & connections
- VCC – 5V
- GND – Ground
- DIN – Data in
- DOUT – Data out
- CS – Chip select
- CLK – Clock
Getting started
- Confirm the display interface, pinout and supply.
- Connect a suitable host and install the relevant driver or library.
- Start with a simple text or display-test example before adding your application.
