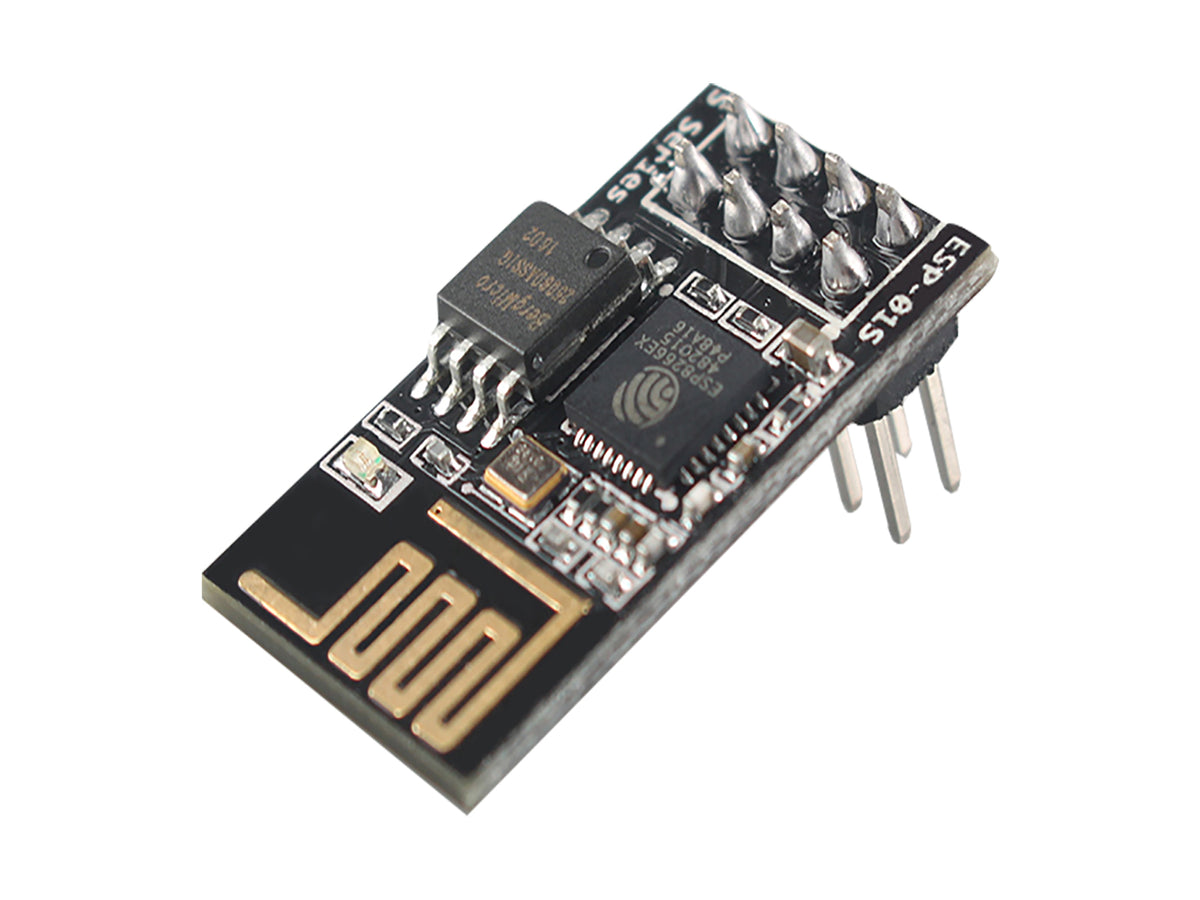

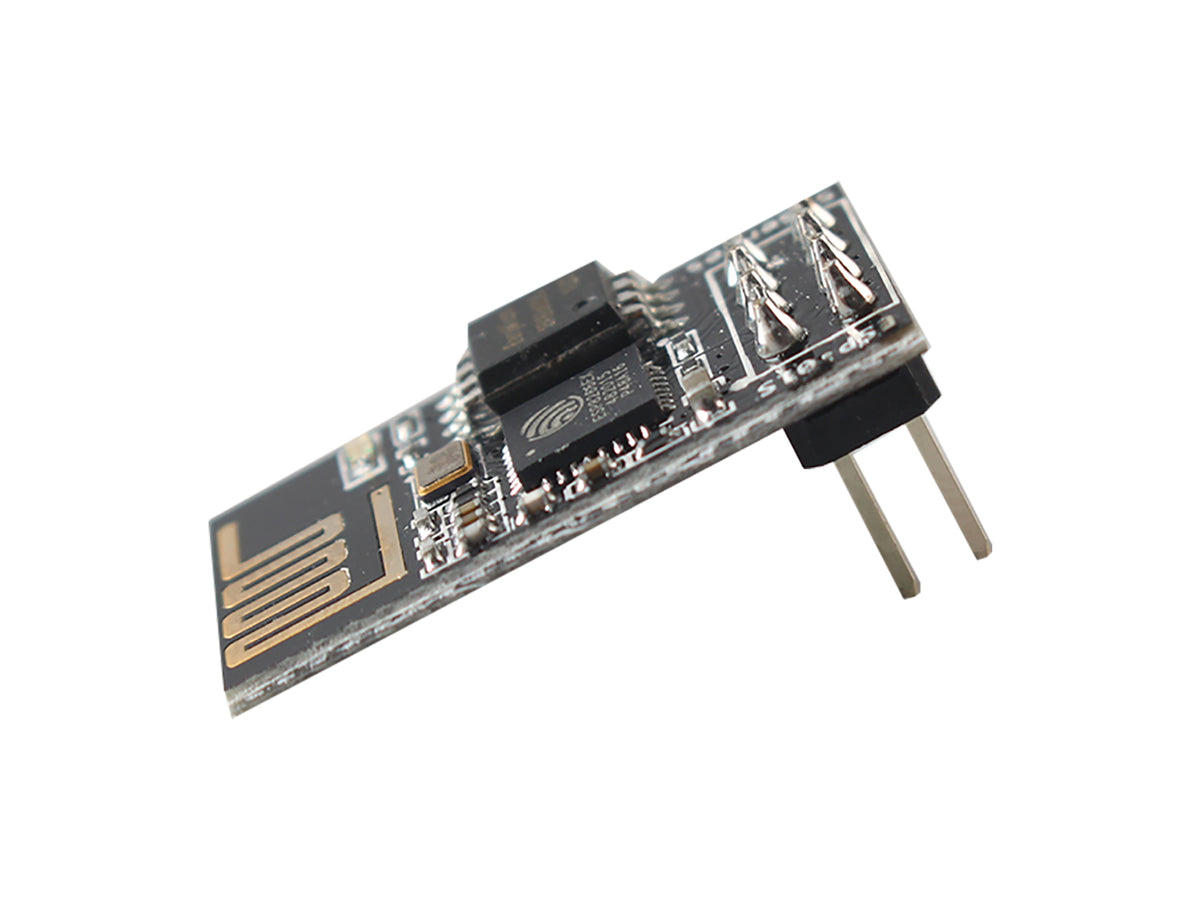

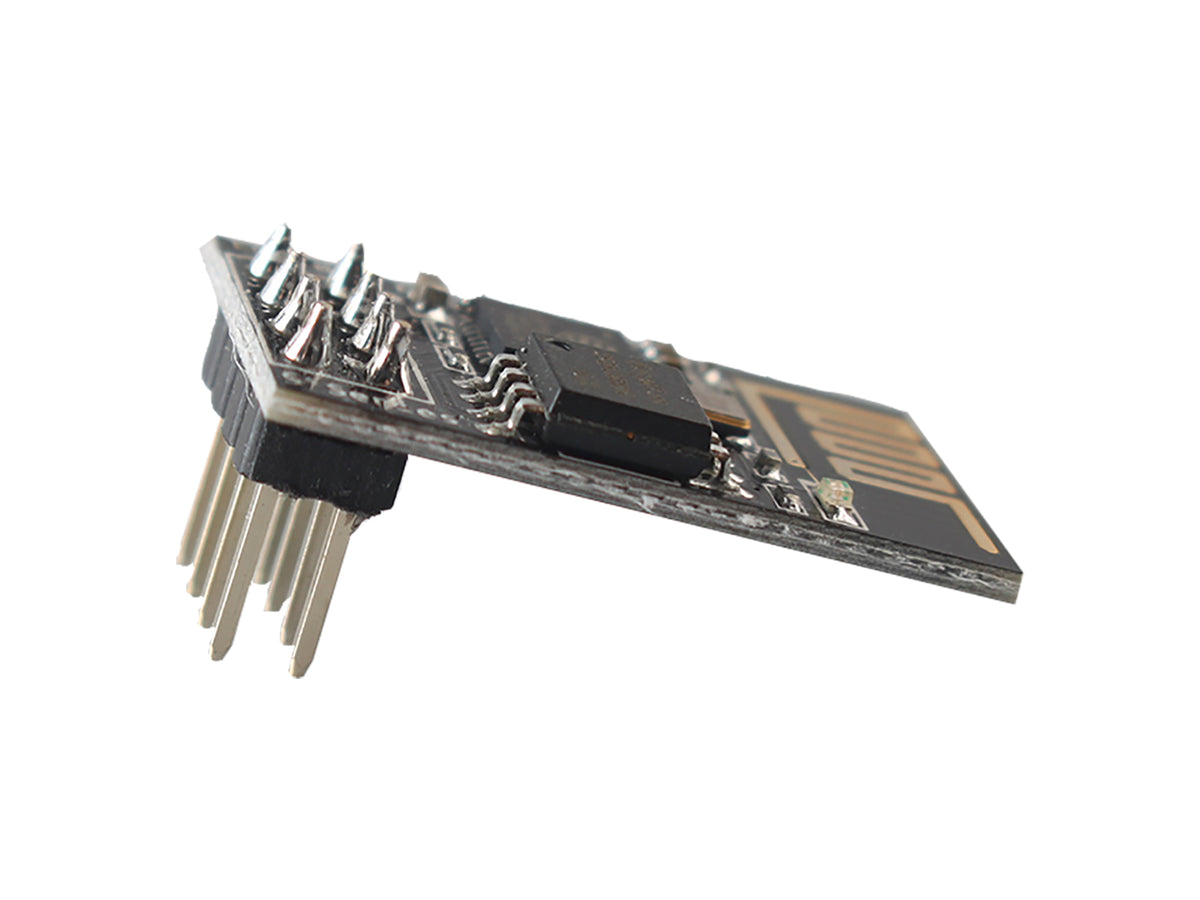

ESP8266 MODULE - ESP-01S
Add ESP8266 Wi-Fi to an embedded design.
Use an ESP-01S ESP8266 module for a custom Wi-Fi-enabled controller or serial-connected project. Check the module footprint, antenna arrangement, boot configuration and firmware against your design.
Before you order: Check the module footprint and pinout. Provide a suitable 3.3 V supply and use matching logic levels and boot settings.
Specifications
| Item | Value | Description |
|---|---|---|
| Size | 24.7x14.4x11mm | ±0.2mm |
| SPI Flash | 8Mbit | |
| Interface | — | UART/GPIO |
| GPIO | 2 | |
| Baud rate | 115200 | Support 300~4608000bps |
| Frequency | 2.4GHz | 2412~2482MHz |
| Antenna | On board | 2dBi |
| Transmit Power | 16±2dBm | 802.11b/g/n |
| Safety Certificate | WEP/WPA-PSK/WPA2-PSK | |
| Power Supply | 3.3V | |
| Working Temperature | -20~85℃ |
Hardware connections
Application ideas
- Industrial manufacturing
- Smart home
- Smart Farm
- IoT
Getting started
- Plan the module footprint, supply and boot-strapping pins.
- Use a suitable UART or programming interface and matching logic levels.
- Load or configure firmware and test communication before integrating your application.
Frequently asked questions
Can I use it like a USB development board?
This is an embedded module. Plan the programming interface, power supply, boot pins and any carrier hardware required by your design.
Documentation & downloads
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
