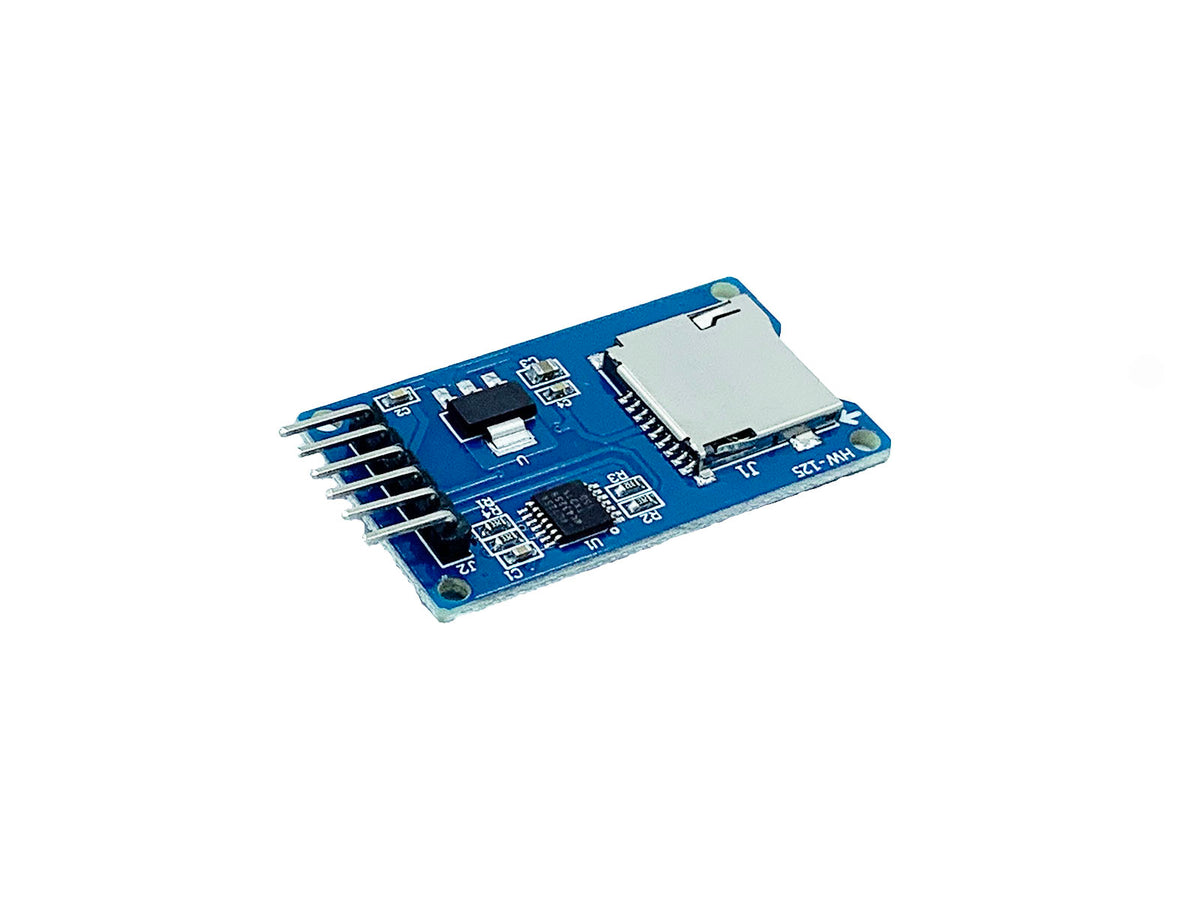

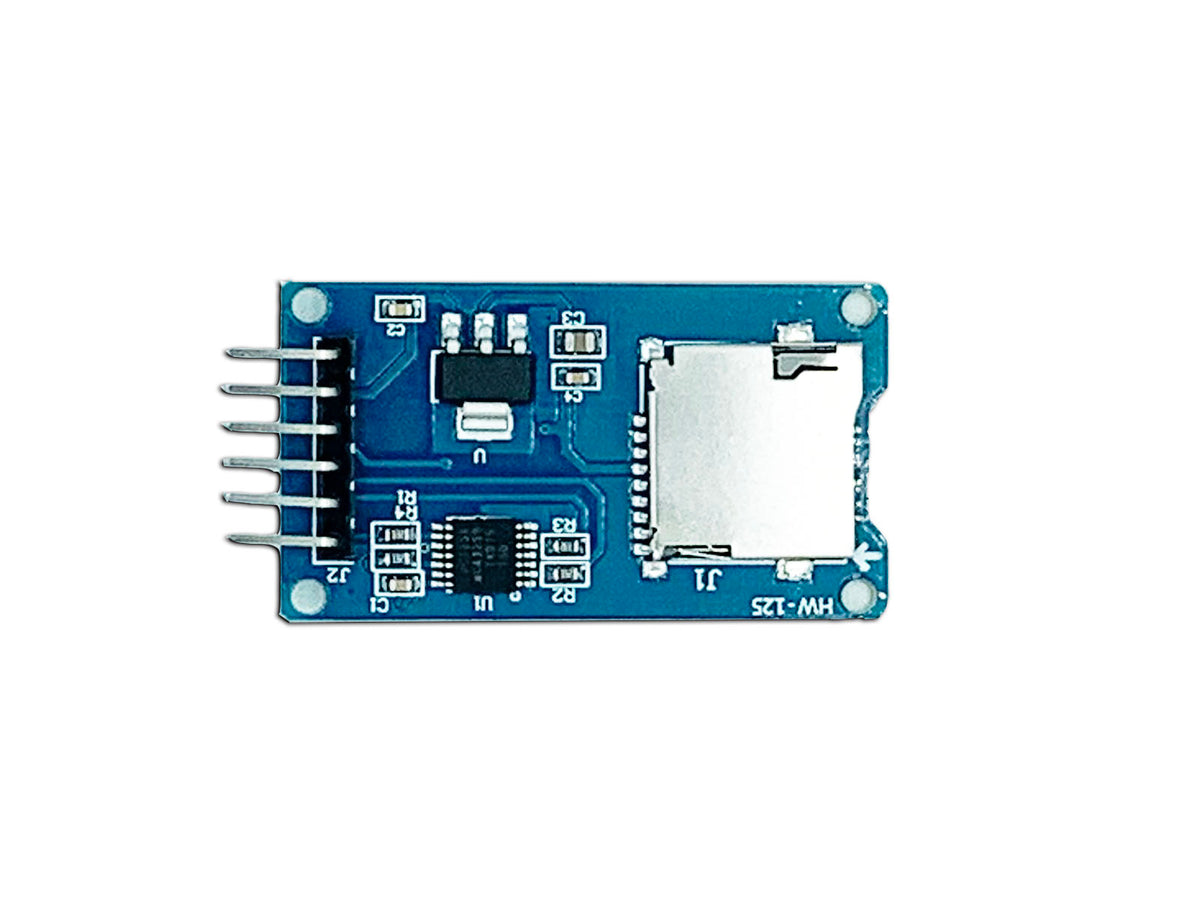

MICRO SD READER
Read and write microSD files over SPI.
Add removable storage to an MCU project using this microSD interface module. Connect it over SPI and start with the SD examples available in the Arduino IDE.
Before you order: Check the listed supply, connections and mechanical fit for your project.
Features
- Micro SD Card
- SPI interface
| Input voltage | 5V |
|---|---|
| IO Level | 3.3/5V |
| Size | 42x24x12mm |

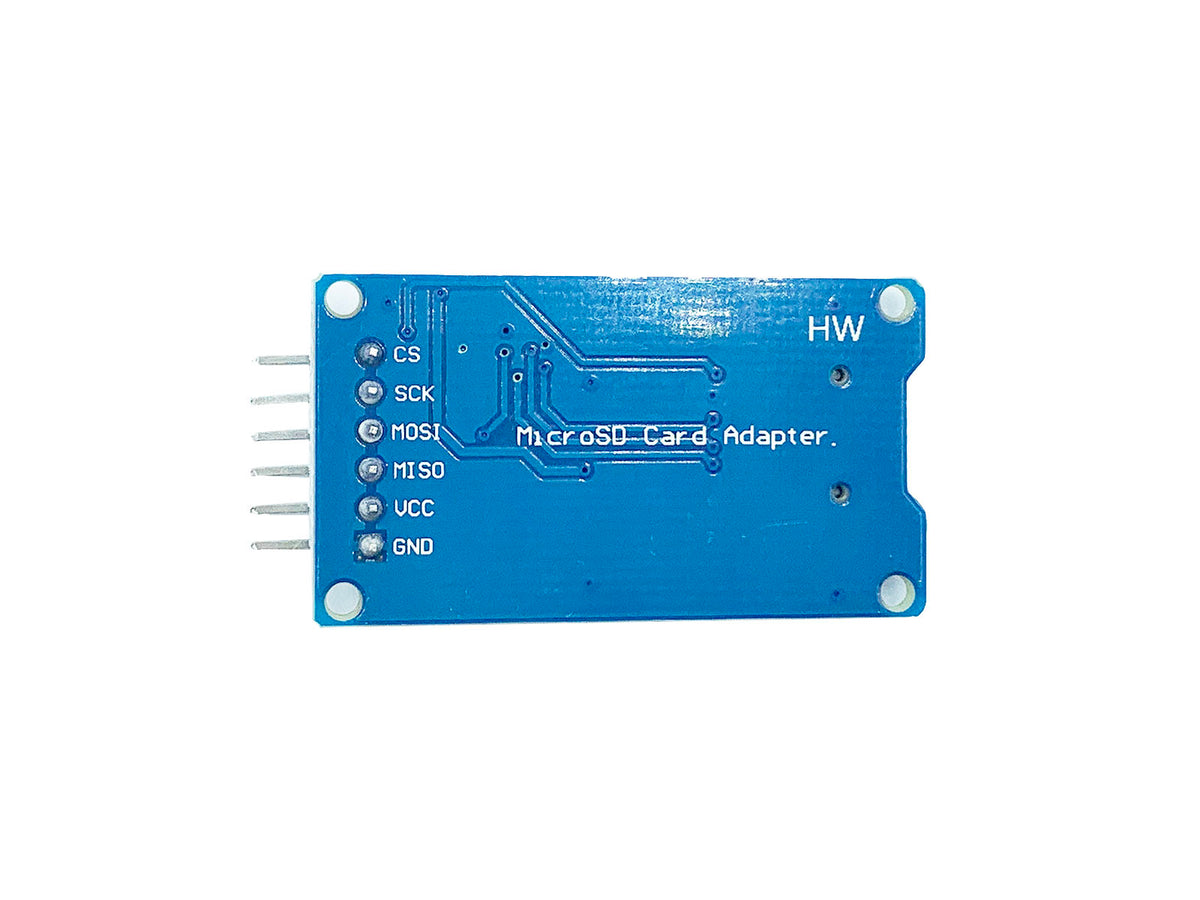

Pinout & connections
- MISO SPI
| CS | CS of SPI |
|---|---|
| SCK | Clock of SPI |
| MOSI | SPI |
| VCC | 5V |
| GND | GND |
