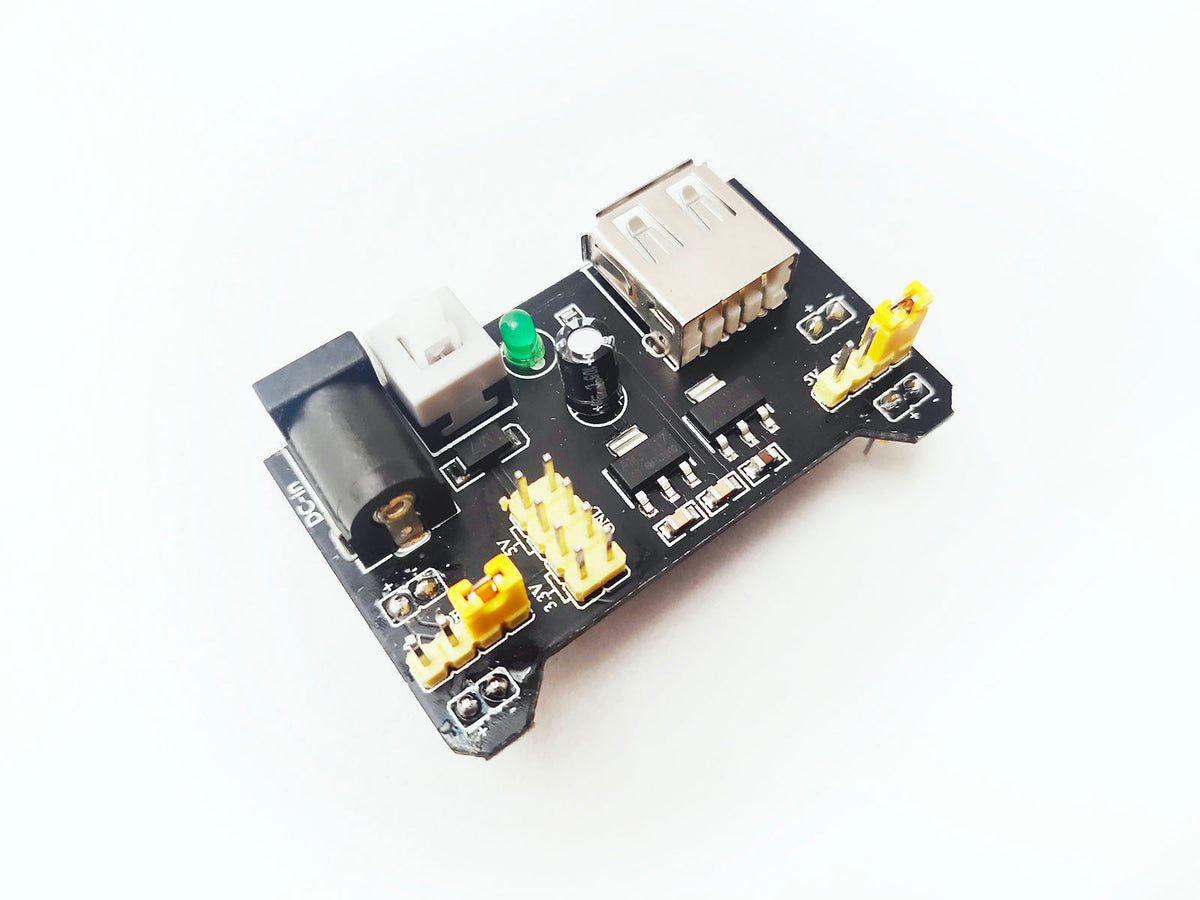

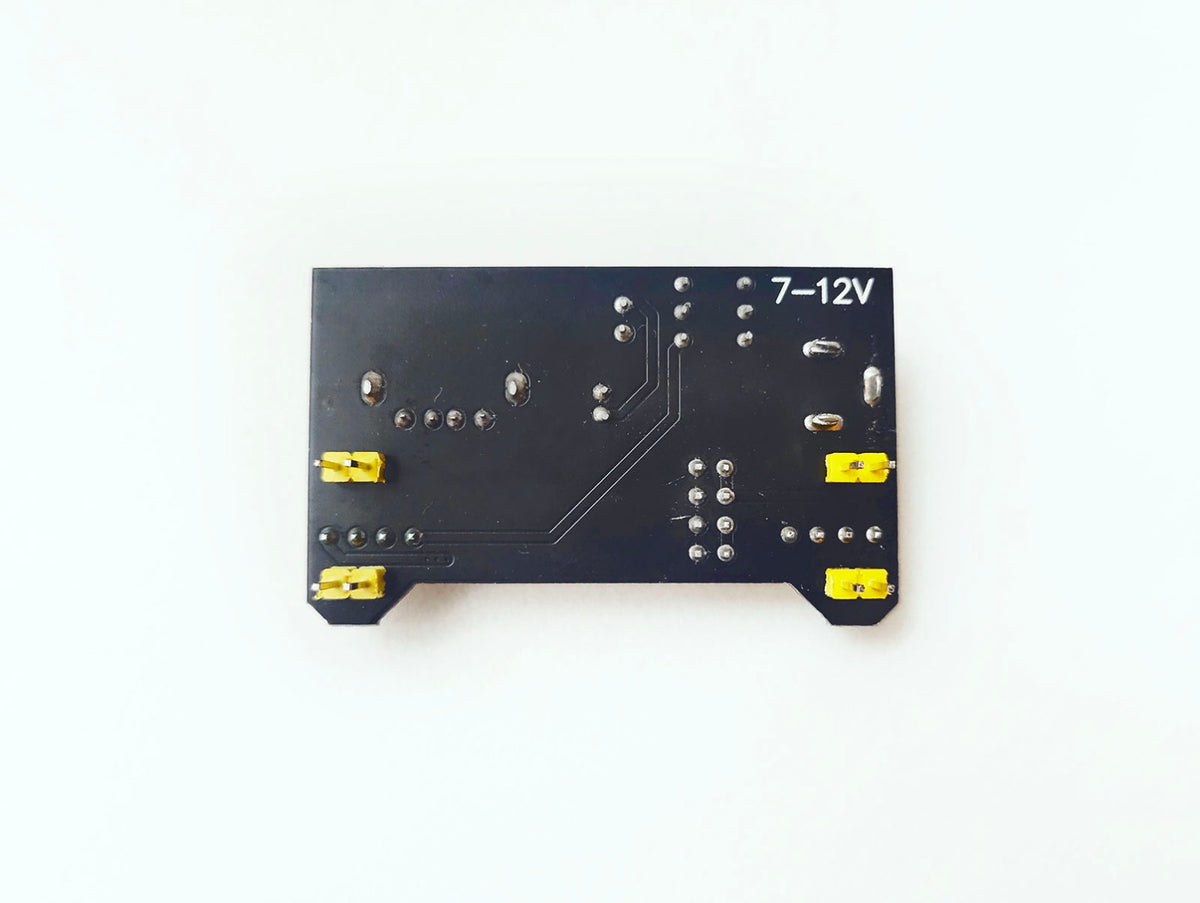

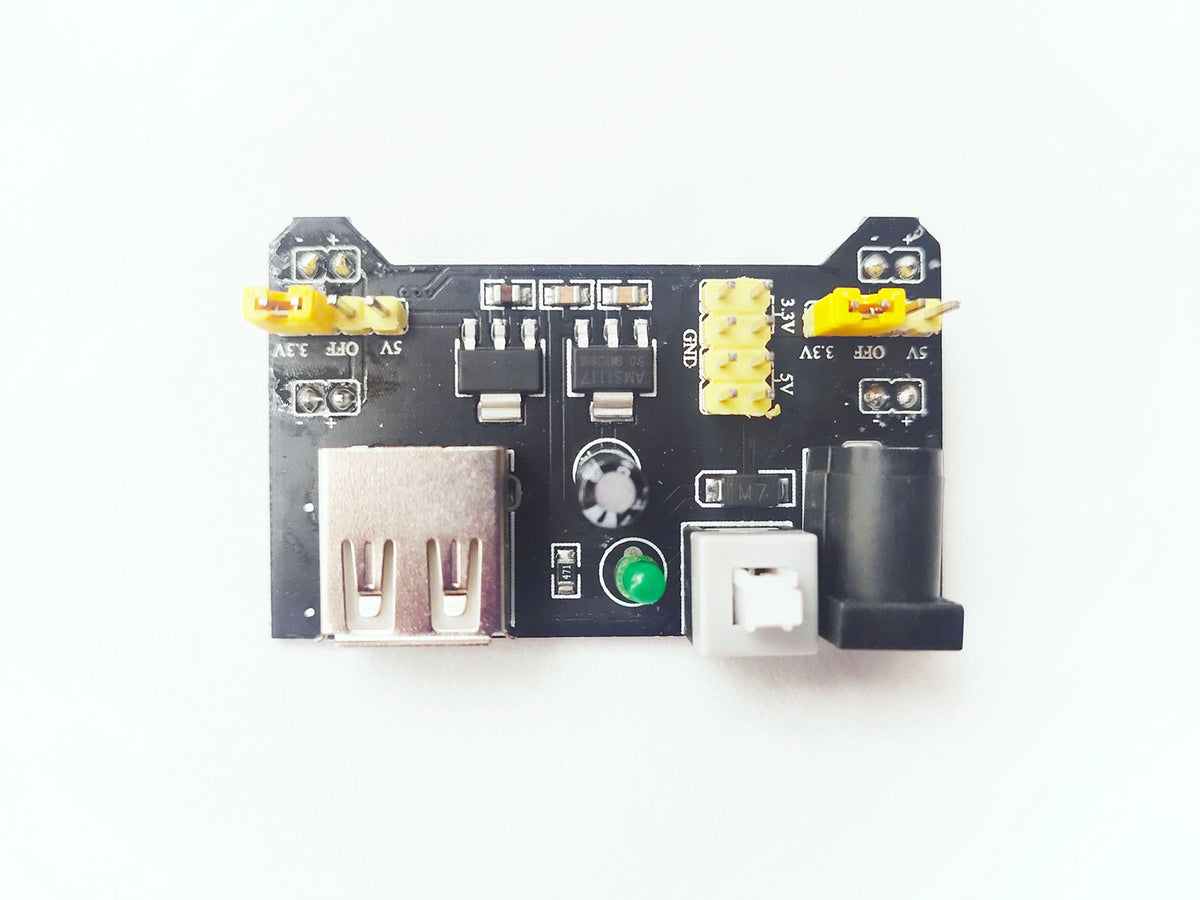

MB-102 POWER PANEL FOR BREAD BOARD
Power both rails of a breadboard project.
Use an MB-102 power module to supply 3.3 V or 5 V to a compatible breadboard. Configure the two output channels for your circuit and check the input connection before powering it.
Before you order: This is a power-conversion module. Set and measure the output before connecting a load, and allow for current and thermal limits.
Features
- USB-A output
- 2 Channel output
| Input voltage | 7-12V |
|---|---|
| Output Voltage | 3.3/5V |
| Output current | 700mA(Max); allow for the thermal limits of the assembled module. |
Reference:
Getting started
- Verify input polarity and connect a suitable DC source.
- Set or confirm the output voltage using a meter.
- Connect the load and check voltage and temperature under the expected current.
Frequently asked questions
Can I use the maximum listed current continuously?
Available continuous current depends on the input/output voltage, cooling and load. Check temperature and output stability under the expected operating conditions.
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
