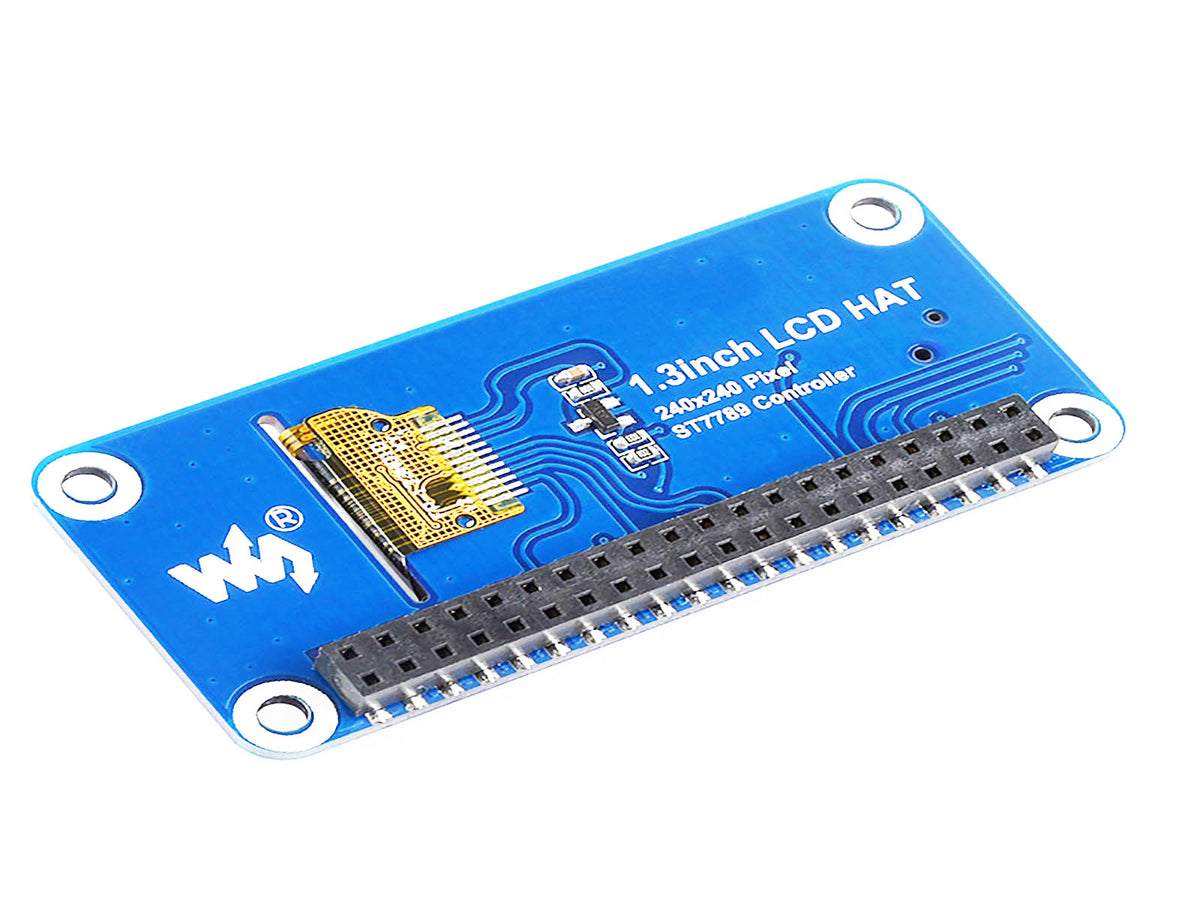

1.3' IPS DISPLAY FOR RASPBERRY PI4
Build a small color display interface.

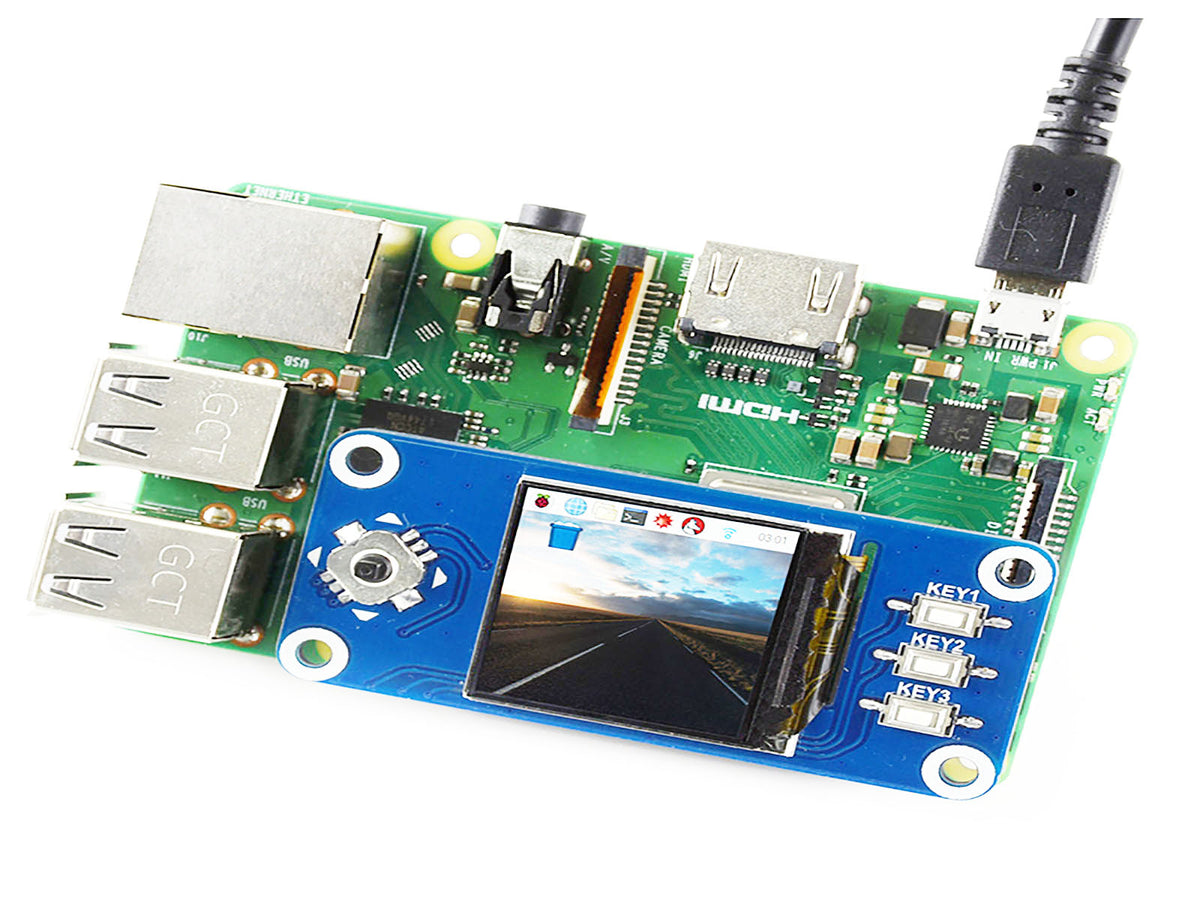

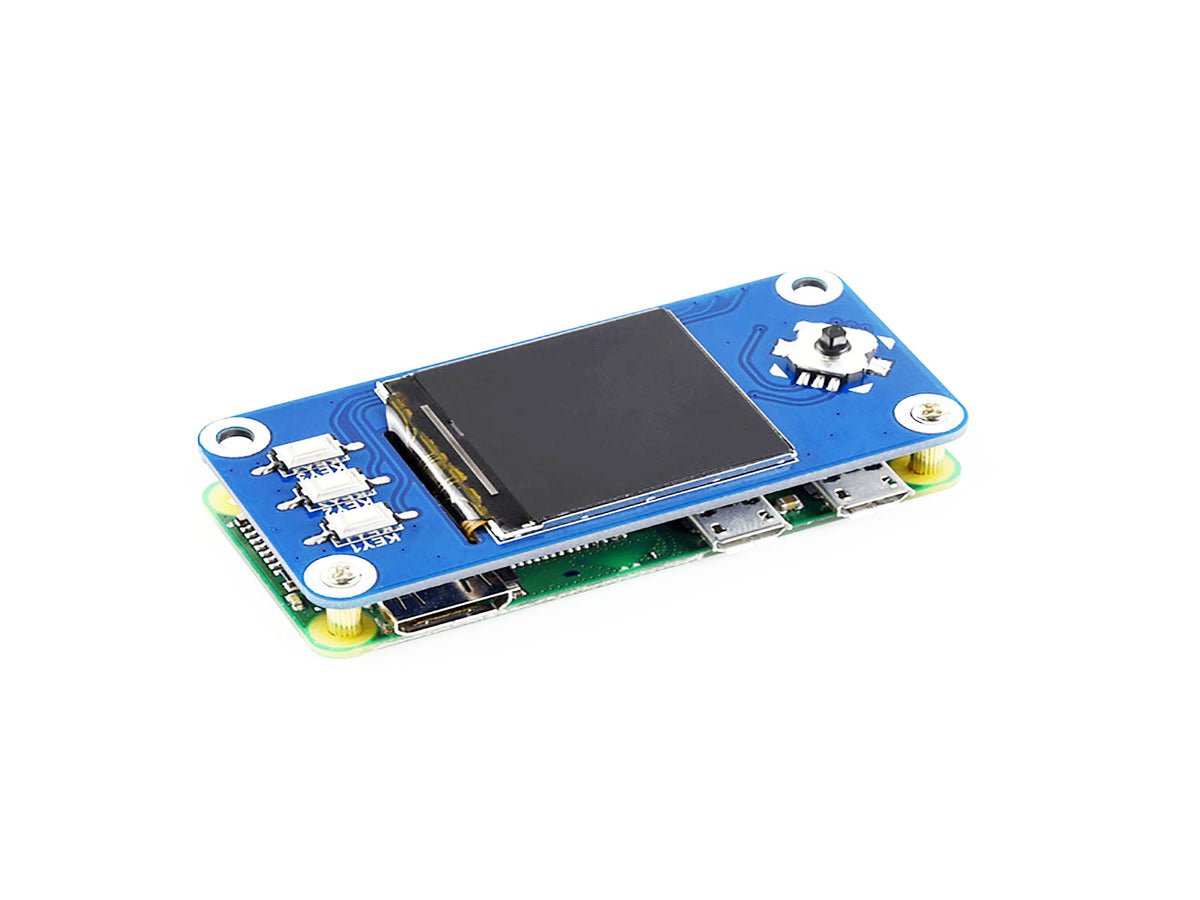

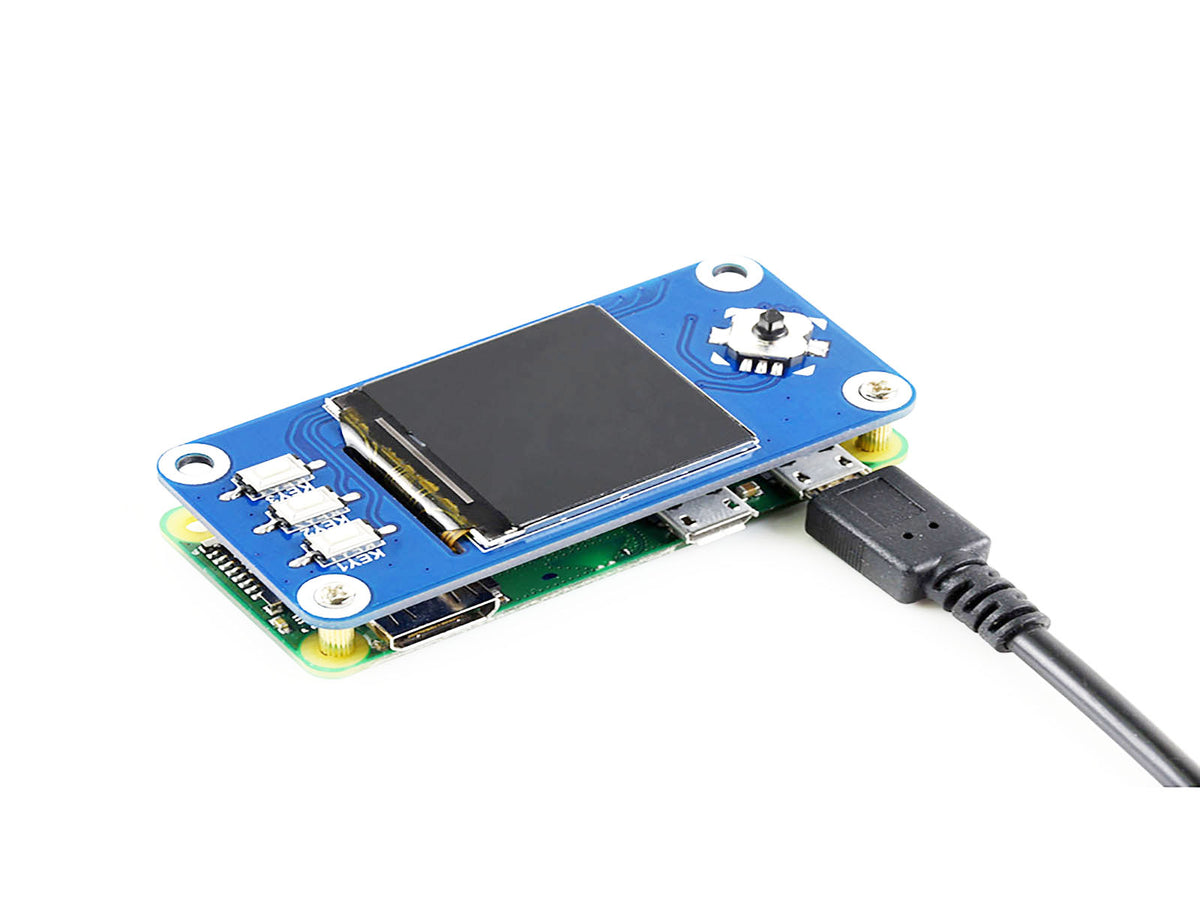

Use a 1.3-inch, 240 × 240 IPS display for text, graphics and local feedback in Raspberry Pi projects. The SPI-connected module also includes a joystick and buttons.
Before you order: Check the listed Raspberry Pi models, interface and connector arrangement for your setup. The host computer is supplied separately.
Features
- Available for 4B / 3B+ / Zero
- IPS screen with wide viewing angle and outstanding display effect
- Small size, high resolution, and high definition display
- Onboard joystick and buttons
Pinout & connections
| Pins | IO of Pi | Description |
|---|---|---|
| KEY1 | P21 | Button1 |
| KEY2 | P20 | Button2 |
| KEY3 | P16 | Button3 |
| Up | P6 | UP of joystick |
| Down | P19 | DOWN of joystick |
| Right | P26 | RIGHT of joystick |
| Left | P5 | LEFT of joystick |
| Press | P13 | PRESS of joystick |
| SCLK | P11/SCLK | Clock of SPI |
| MOSI | P10/MOSI | MOSI of SPI |
| DC | P25 | Data/Cmd, Low for Cmd |
| CS | P8 | CS of SPI |
| RST | P27 | Reset |
| BL | P24 | Backlight |
Getting started
- Check the supported Raspberry Pi model and connector arrangement.
- Connect the module using the documented interface and power arrangement.
- Enable or install the required software and test the module before integrating it.
Frequently asked questions
Does it fit every Raspberry Pi model?
Connector types and software setup vary between models. Use the compatibility information on this page and check your board before ordering.
Documentation & downloads
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
