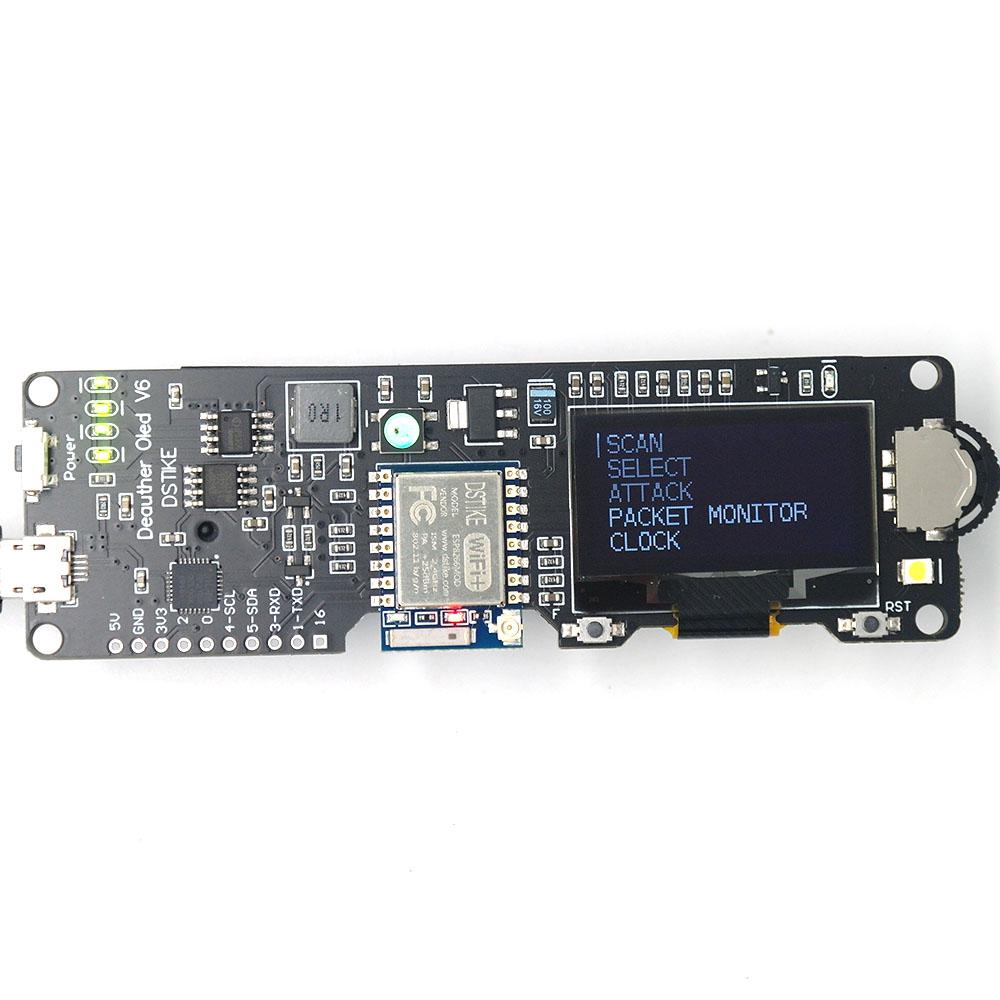

DSTIKE WIFI DEAUTHER OLED
Explore an ESP8266 development platform.
Use a battery-ready ESP8266 board with the supplied firmware for development and authorized wireless testing. Review the controls, power arrangement and included accessories below.

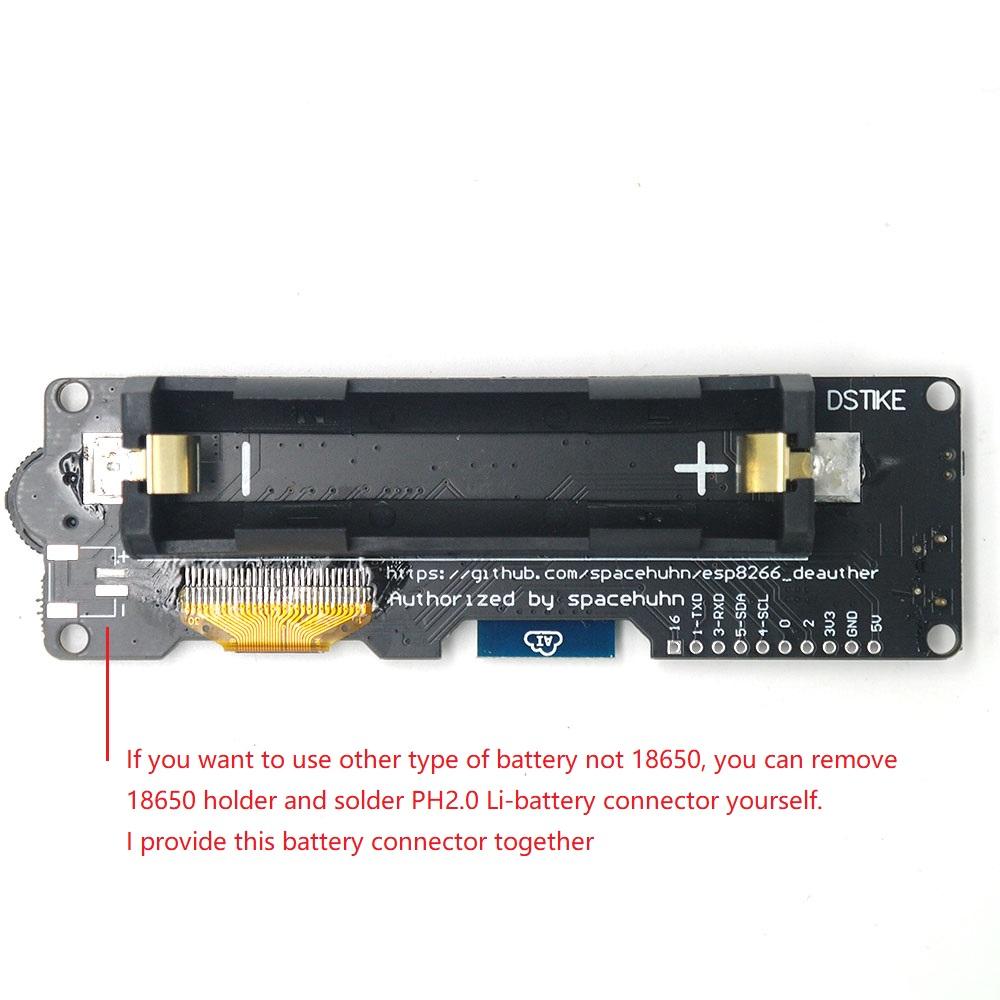

Before you order: An 18650 battery is not included. Check the required cell format, polarity and charging arrangement.
Features
- Only ~80mA power usage
- Up to 35h of battery life with a 3500mAh 18650 cell

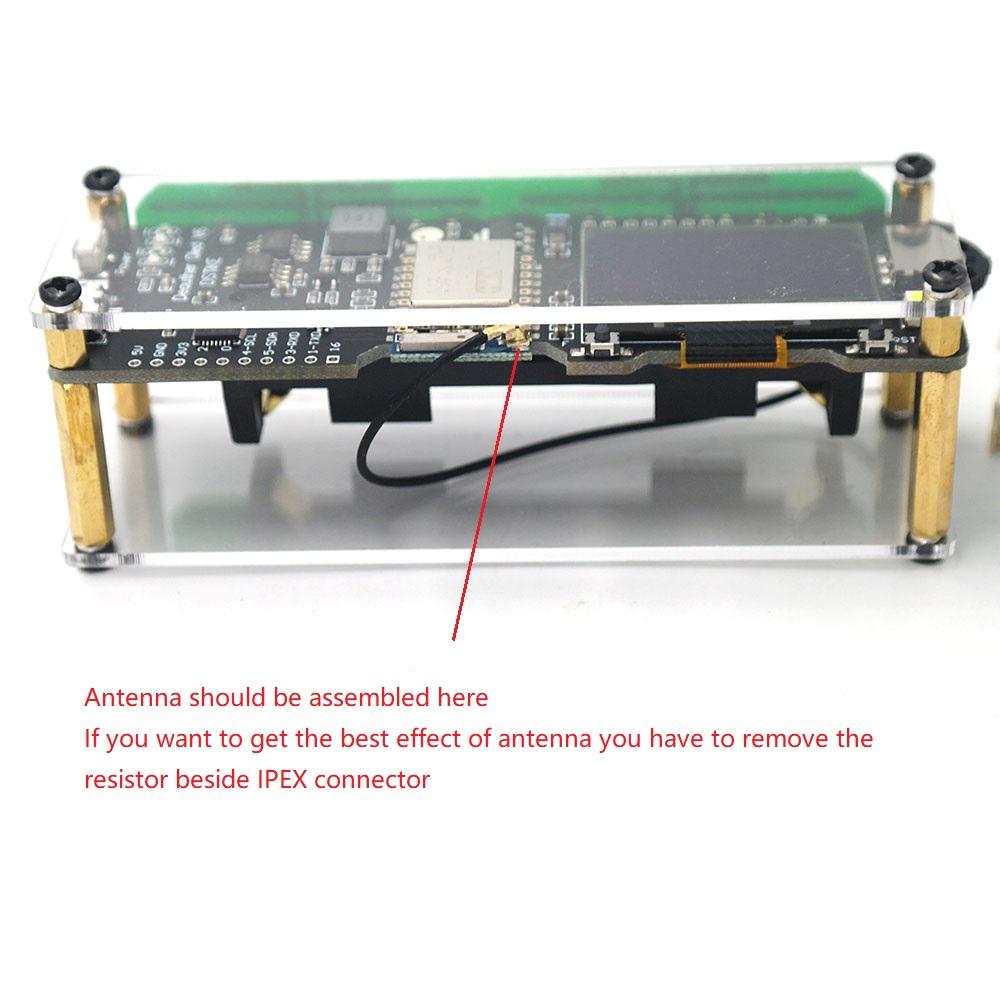

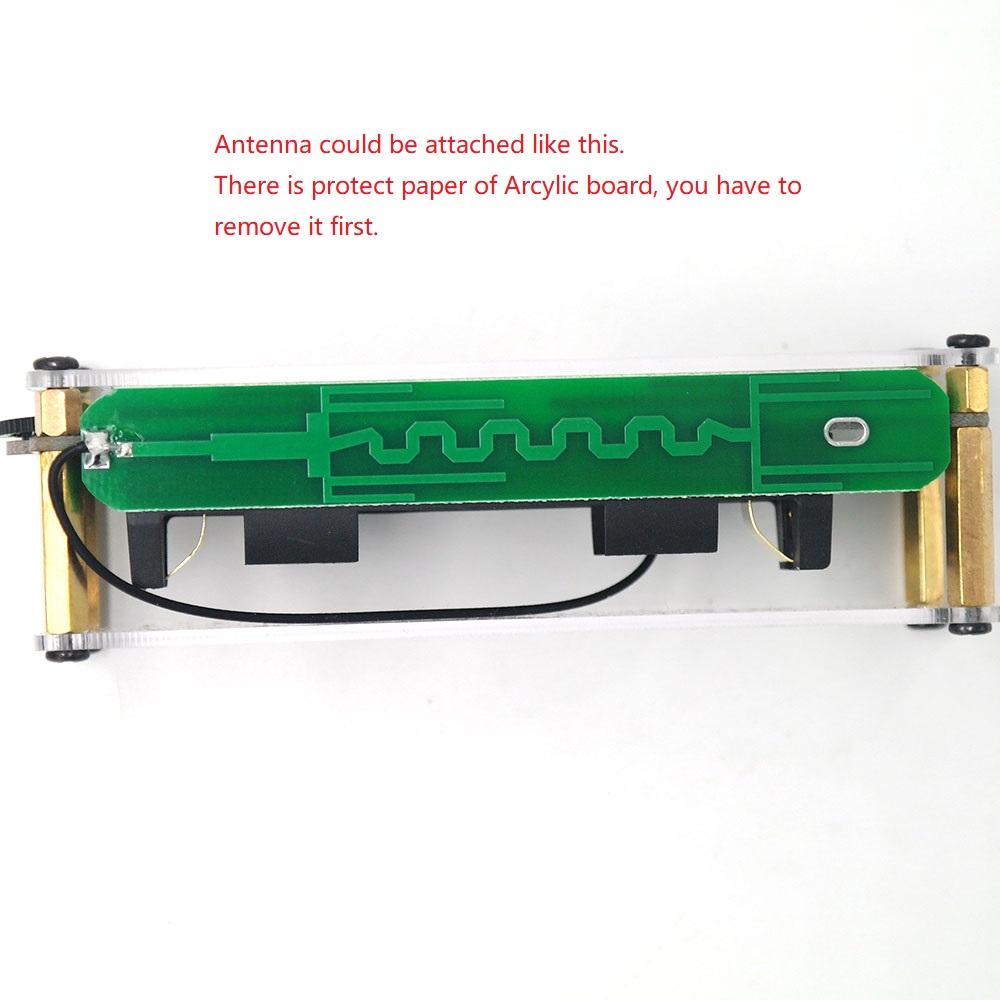

- Included 8dB antenna
- Included 2 acrylic case
- 7 GPIO breakouts and 3.3 and 5V output
- 4 LEDs to indicate battery status in real time
| Charging current | 500mA |
|---|---|
| Power button | Click to turn on, double click to turn off |
| Protection | short, over charging, over discharging, temperature, polarity |

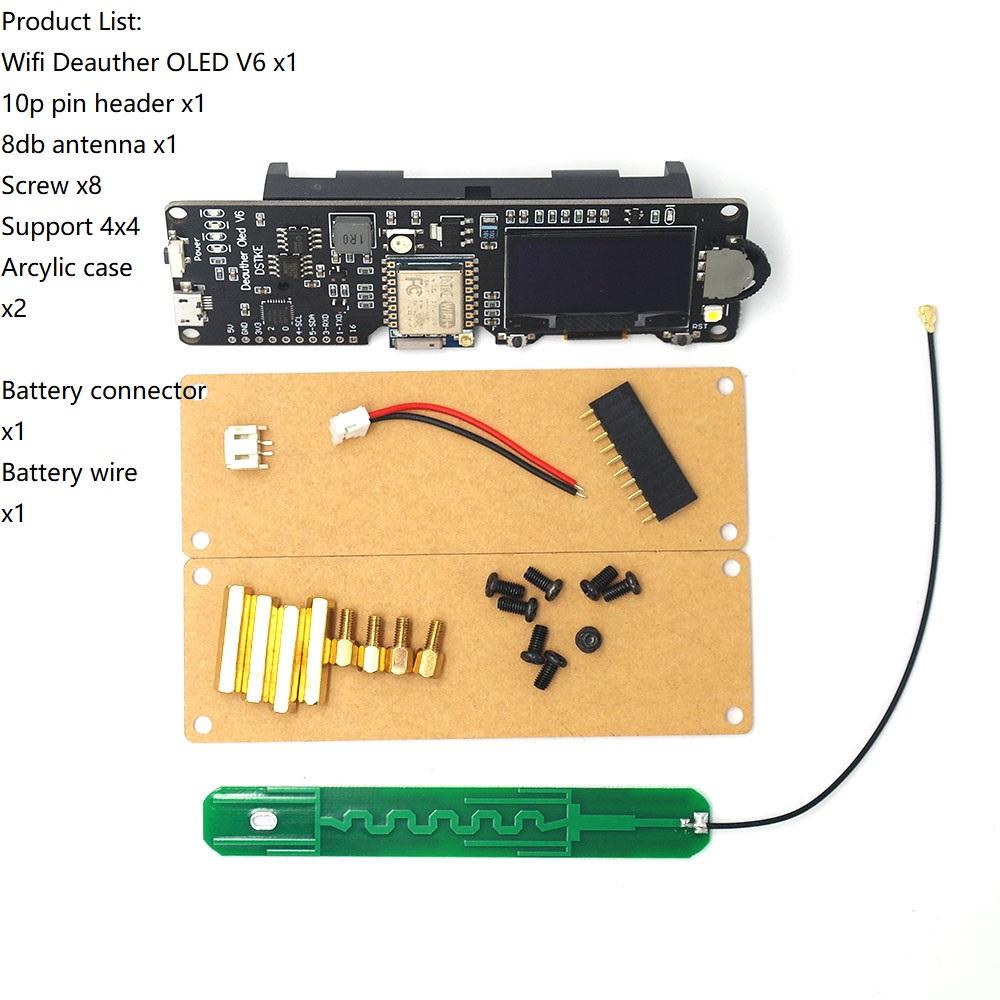

What's included
- Wifi Deauther OLED x1
- 10pin header x1
- 8db antenna x1
- Screw x8
- Copper support x4
- Acrylic case x2
- Li-battery connector x1

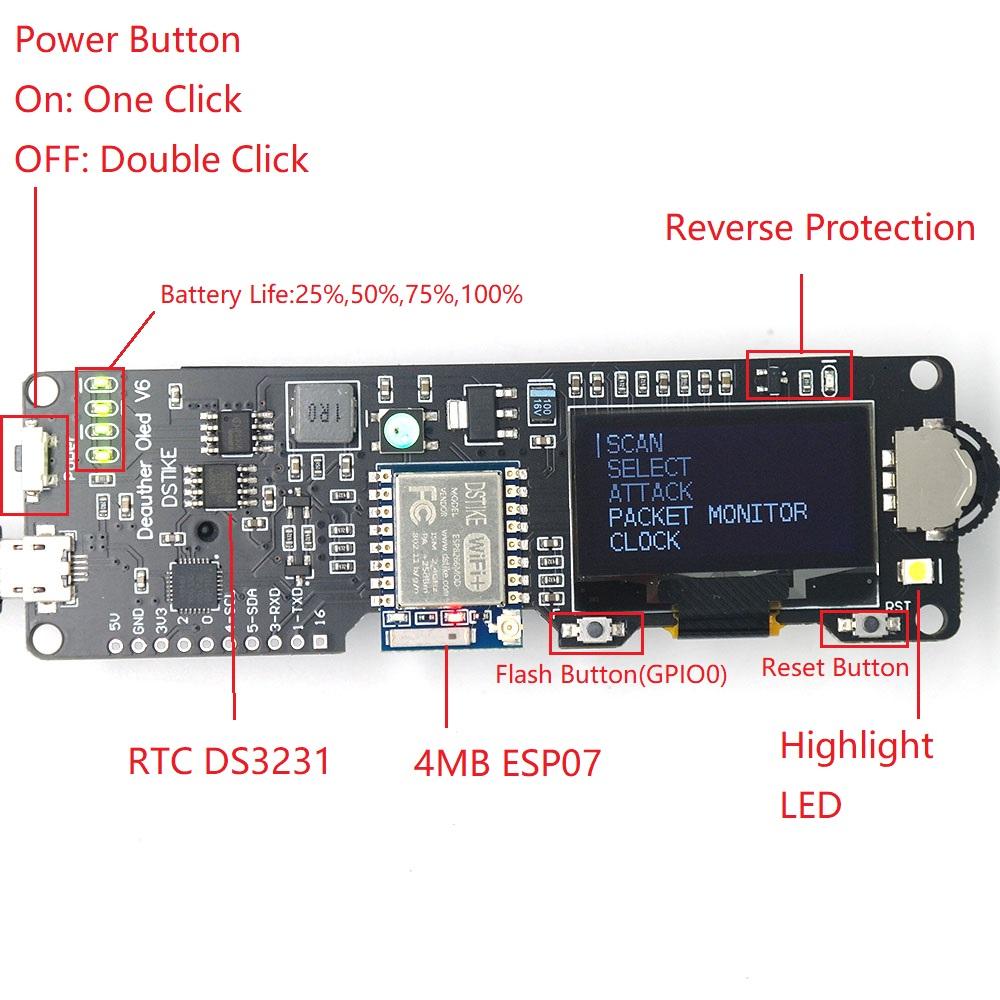

GPIO & hardware connections
| Display | SH1106 1.3" OLED |
|---|---|
| Display SDA | GPIO 5 (D1) |
| Display SCL/SCK | GPIO 4 (D2) |
| WS2812b LED | GPIO 15 (D8) |
| Button Up | GPIO 12 |
| Button Down | GPIO 13 |
| Button Select | GPIO 14 |
| High Light LED | GPIO16 |
| Breakout Pins | - GPIO-16 - GPIO-3(RXD) - GPIO-1(TXD) - GPIO-5(SDA) - GPIO-4(SCL) - GPIO-0 - GPIO-2 - 3.3V - GND - 5V |
Use conditions
- Only for testing and educational purposes against your own devices.
- Please check the legal regulations for your country to make sure you don't violate any laws.
Additional technical details
- Listed operating current is approximately 80–100 mA; battery runtime depends on the cell, display and operating conditions.
The ESP8266 radio supports 2.4 GHz Wi-Fi.
Project video
Documentation & downloads
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
