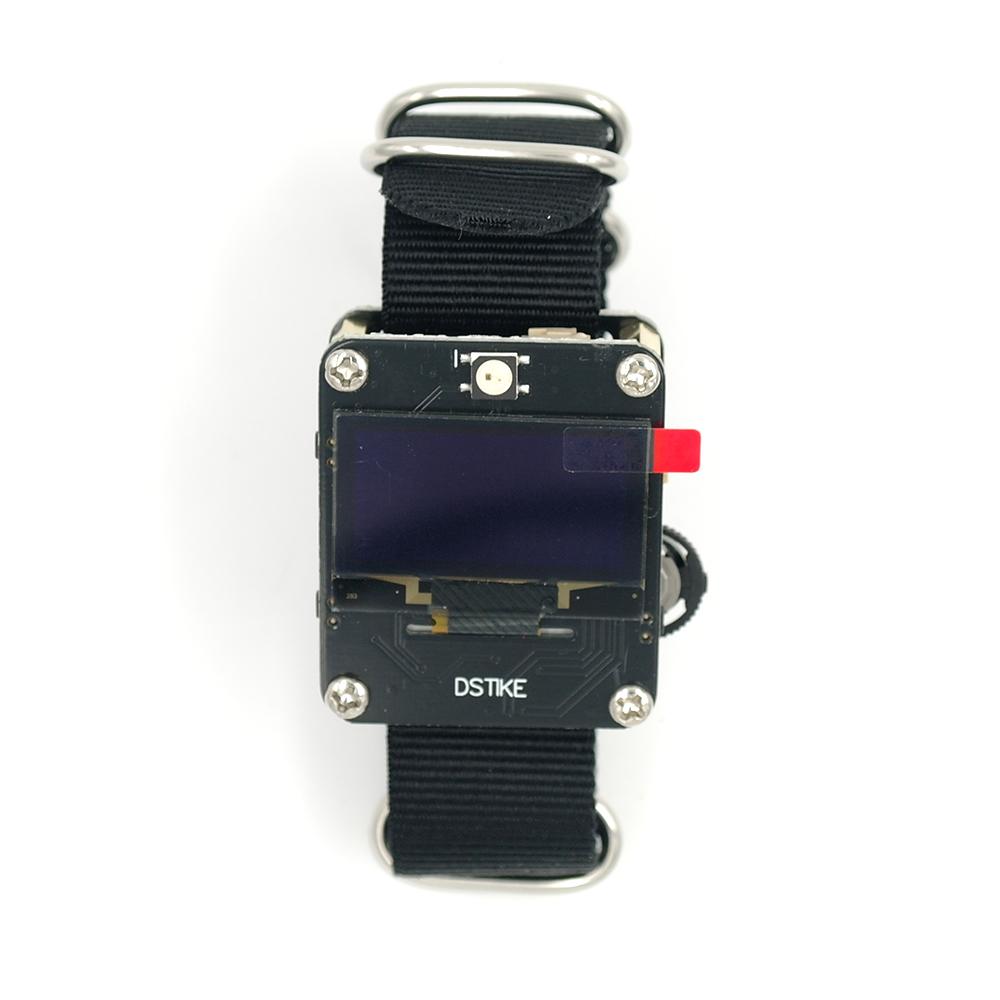

DSTIKE DEAUTHER WRISTAND
Explore an ESP8266 development platform.
Use a wearable ESP8266 board with the supplied firmware for development and authorized wireless testing. Review the controls, power arrangement and included accessories below.
Before you order: Use the supplied software only for educational development and authorized testing on equipment you own or have permission to test.
Features
- Only ~80mA power usage
- Up to around 7h work time
- Indicate charging LED (Red means charging, off means full)
- Included 8dB antenna and 2dB antenna
- Power Switch (Strongly recommend turn it off when charging)
| Charging current | 200mA |
|---|---|
| Protection | short, over charging, over discharging, temperature |

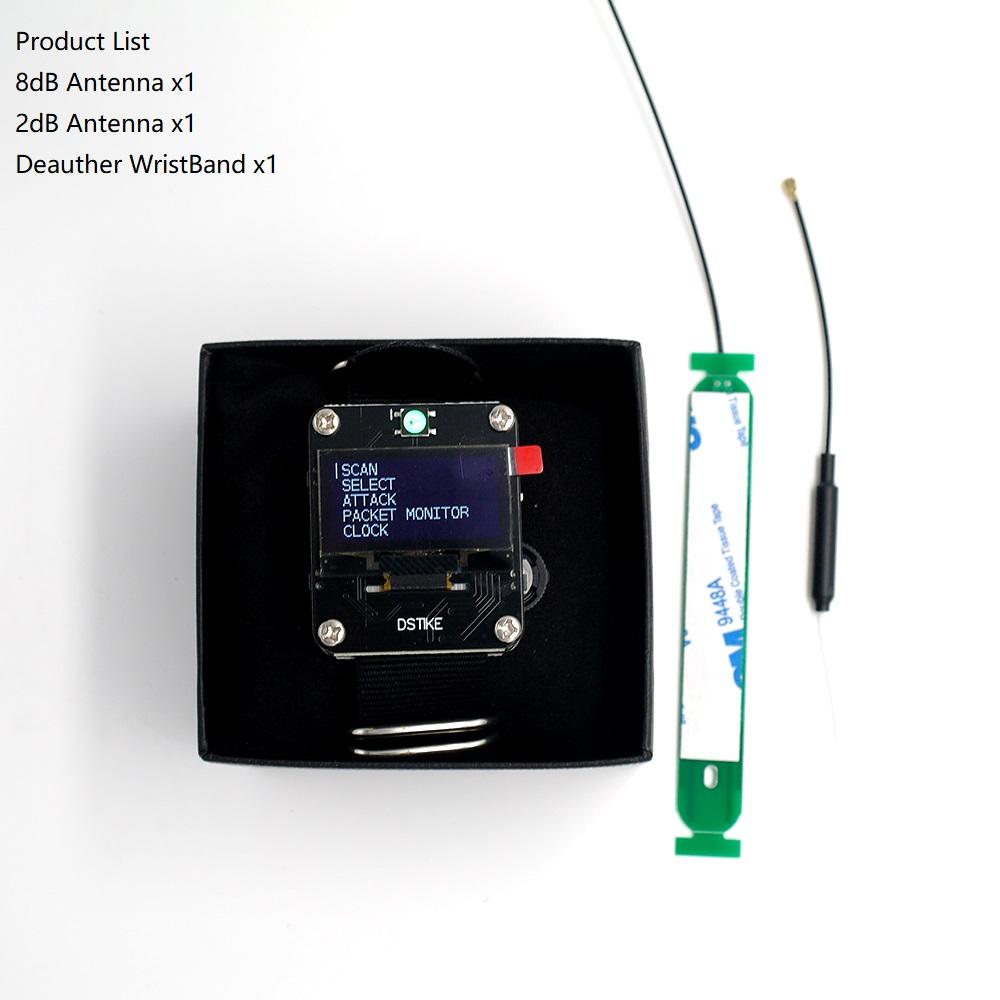

What's included
- Deauther Wistbank x1
- 8db antenna x1
- 2db antenna x1

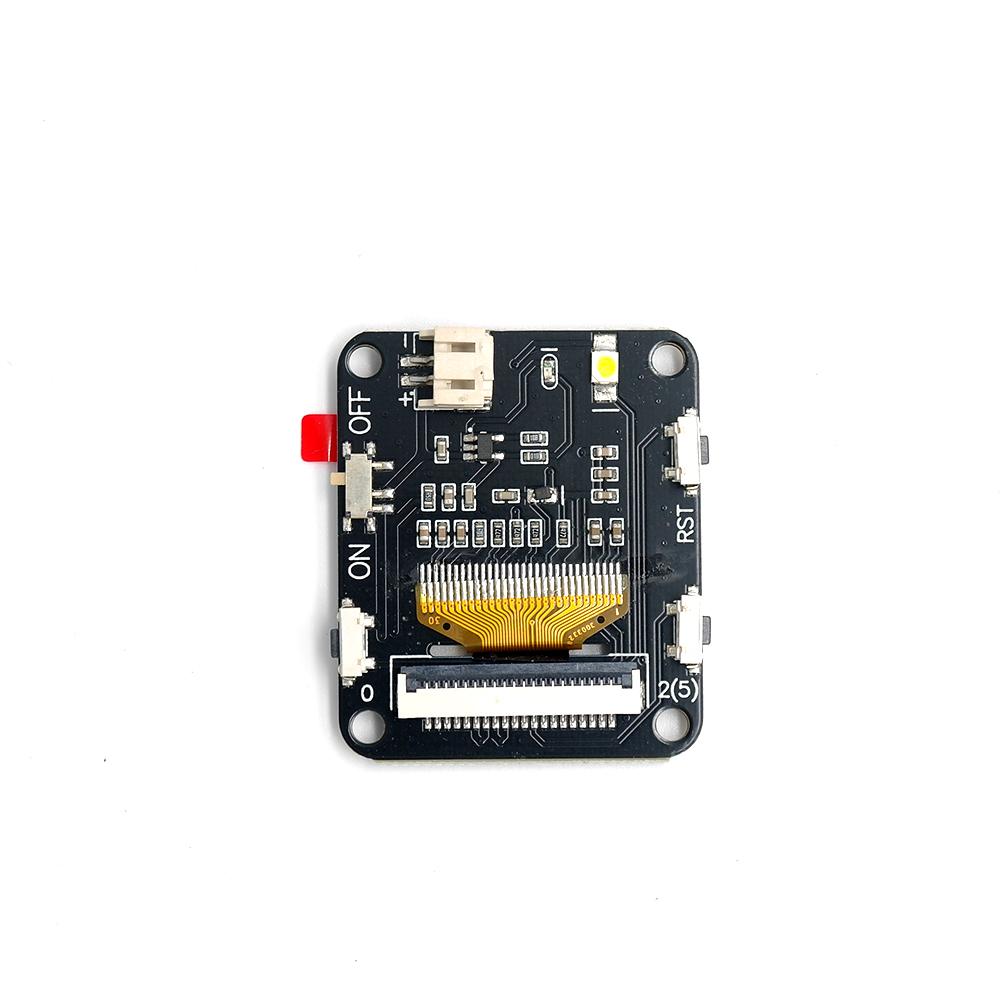

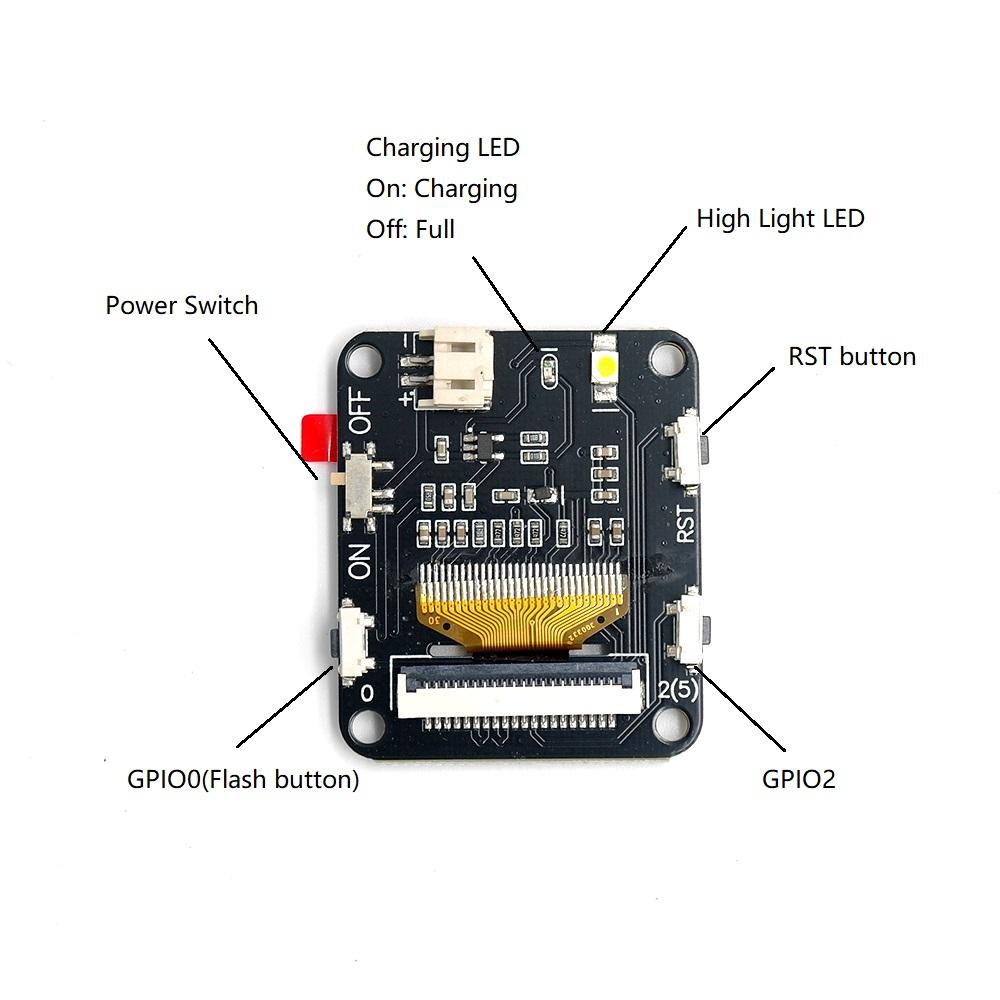

GPIO & hardware connections
| Display | SH1106 1.3" OLED |
|---|---|
| Display SDA | GPIO 5 (D1) |
| Display SCL/SCK | GPIO 4 (D2) |
| WS2812b LED | GPIO 15 (D8) |
| Button Up | GPIO 12 |
| Button Down | GPIO 13 |
| Button Select | GPIO 14 |
| High Light LED | GPIO16 |
| Side Button | GPIO0,GPIO2,RST |
Use conditions
- Only for testing and educational purposes against your own devices.
- Please check the legal regulations for your country to make sure you don't violate any laws.
Additional technical details

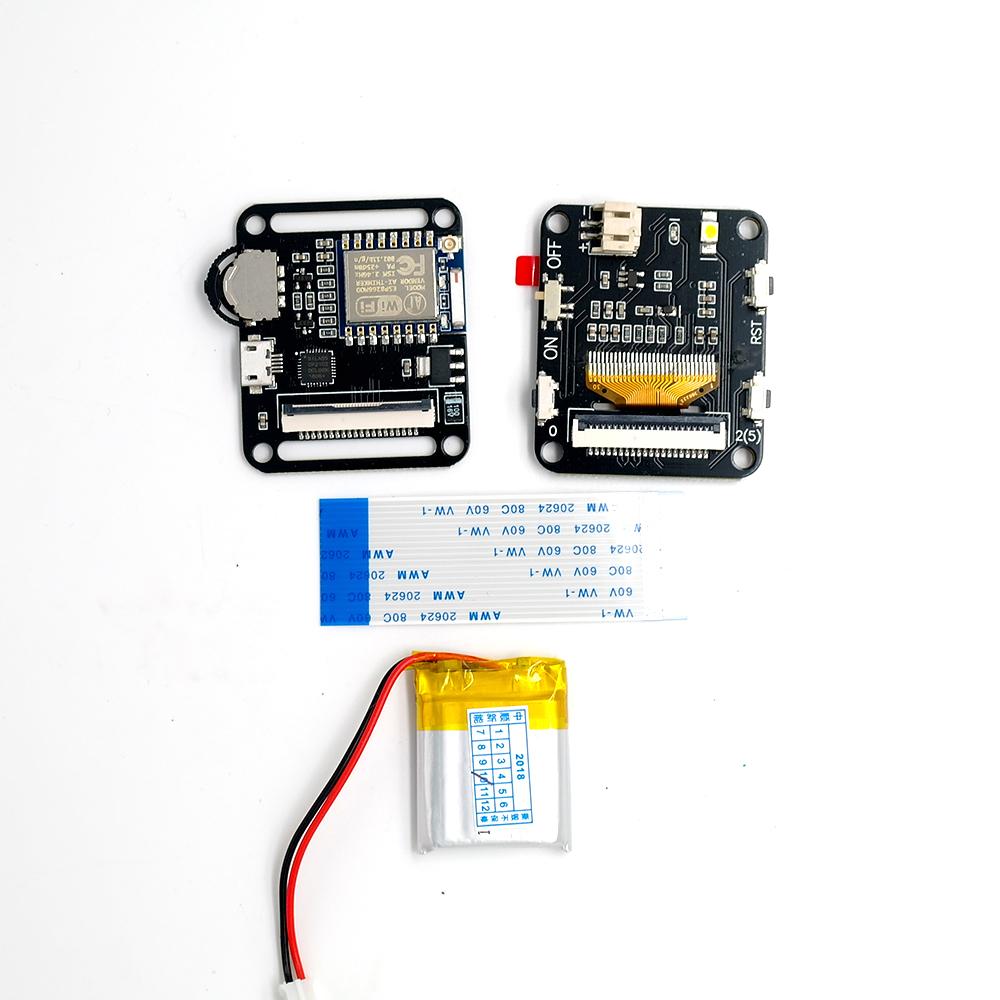

- Includes a 600 mAh battery and a three-way momentary slide switch.
The ESP8266 radio supports 2.4 GHz Wi-Fi.
Project video
Documentation & downloads
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
