TPS3116D2 HIGH-POWER DIGITAL POWER AMPLIFIER MODULE
Build a two-channel audio amplifier.
Use a TPA3116D2-based amplifier module for a custom speaker project. Audio can be supplied through a 3.5 mm input or terminal connection, with a suitable DC power supply and speakers.
Before you order: Use suitable speakers and a power supply for the required output. An audio decoder may also need a separate amplifier.
Features
| Input voltage | 4.5~27V |
|---|---|
| Output power | 50W x 2; depends on supply voltage, speaker load and operating conditions. |
| SNR | 102dB |
| Channel | 2 |
| Size | 63x51x22mm |
| Weight | 50g |

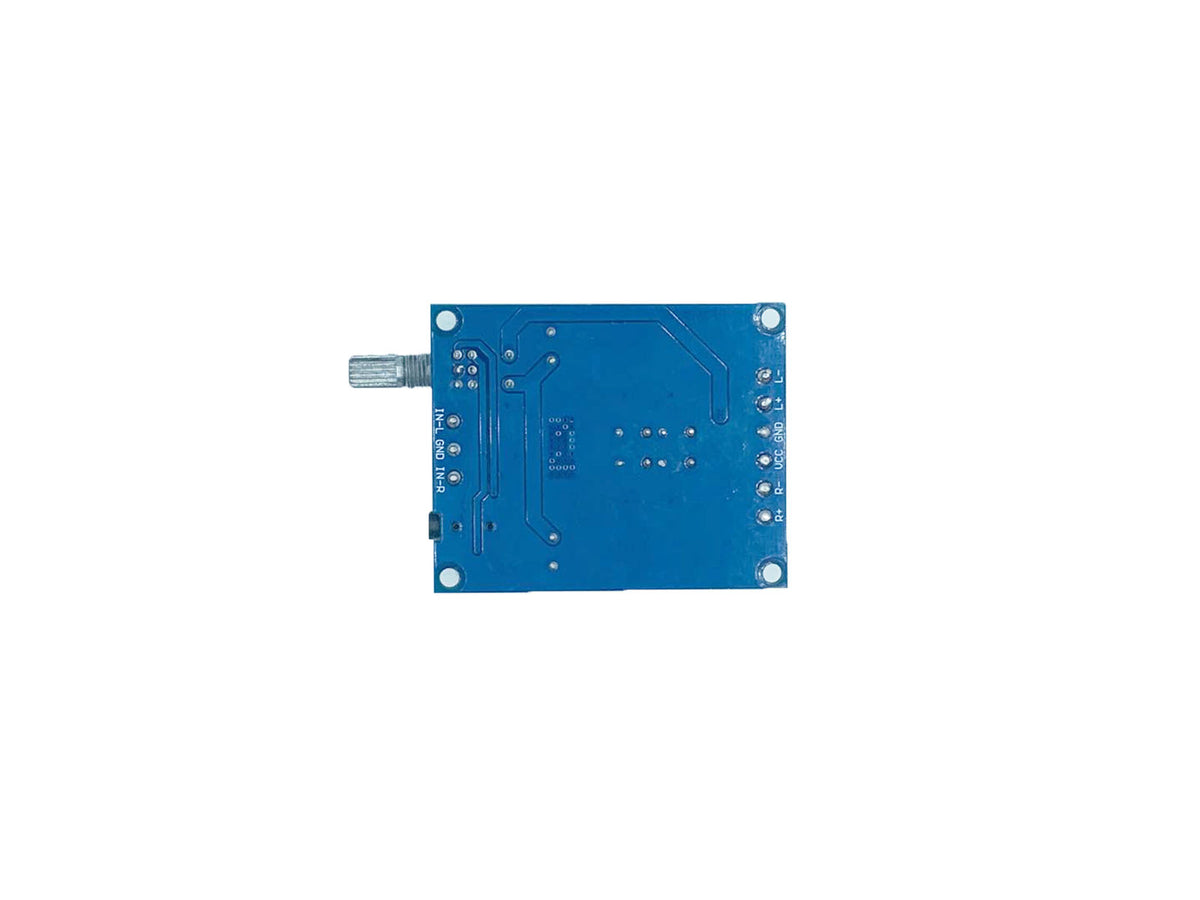

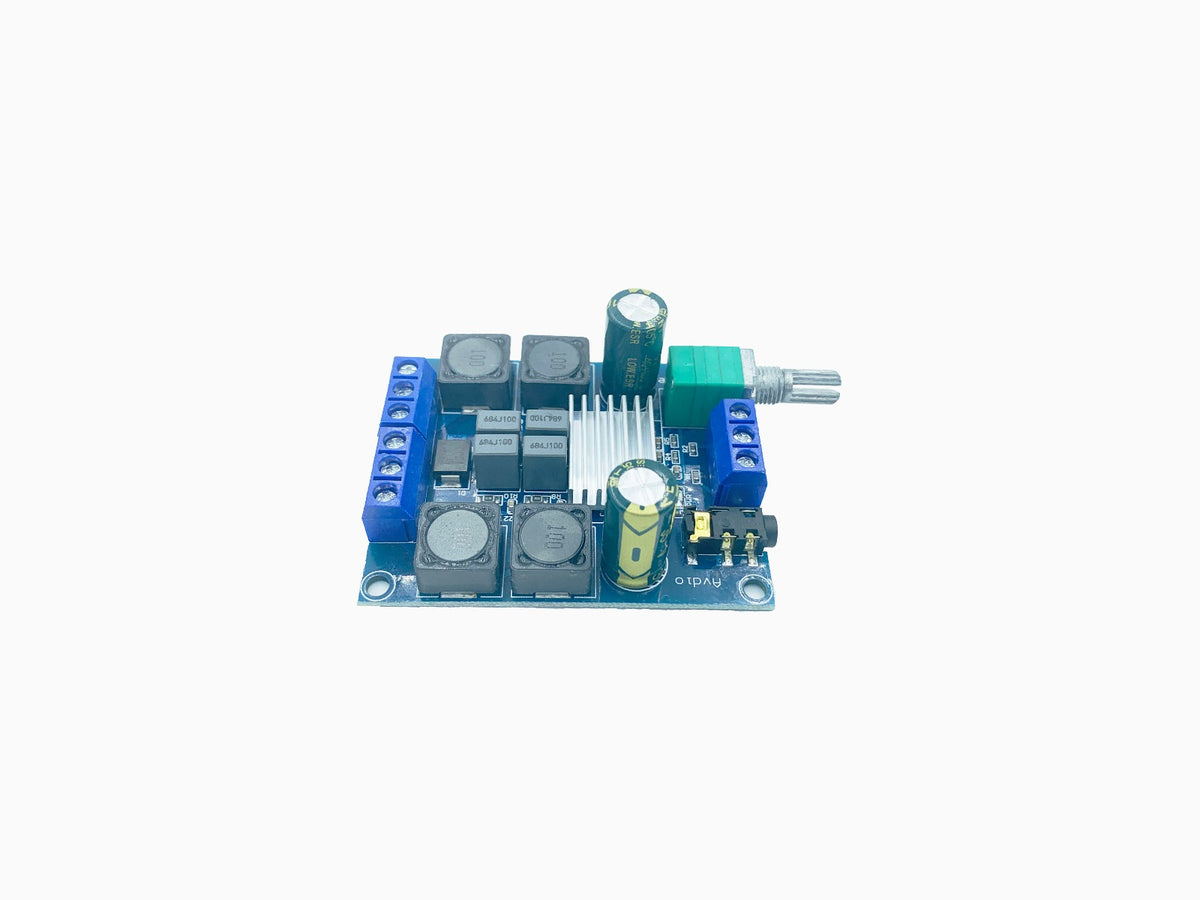

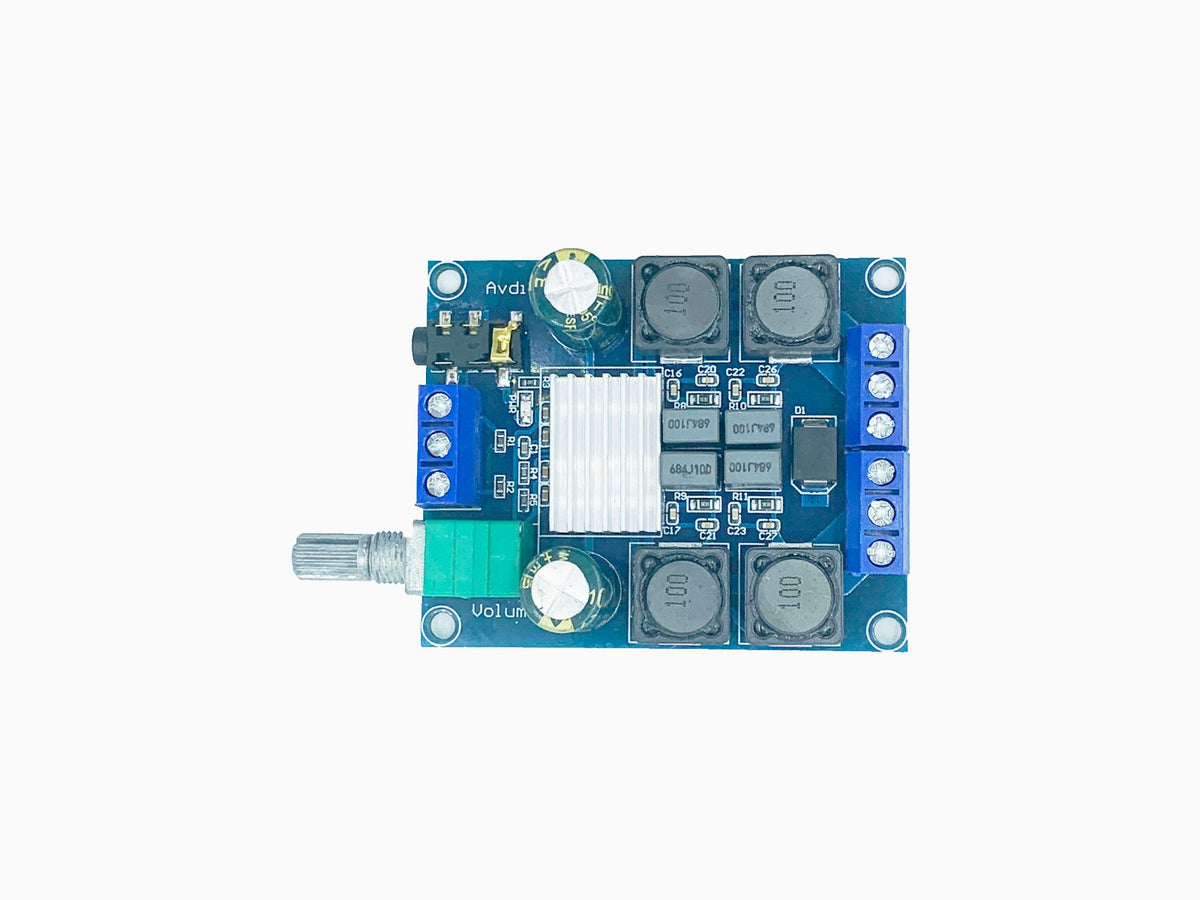

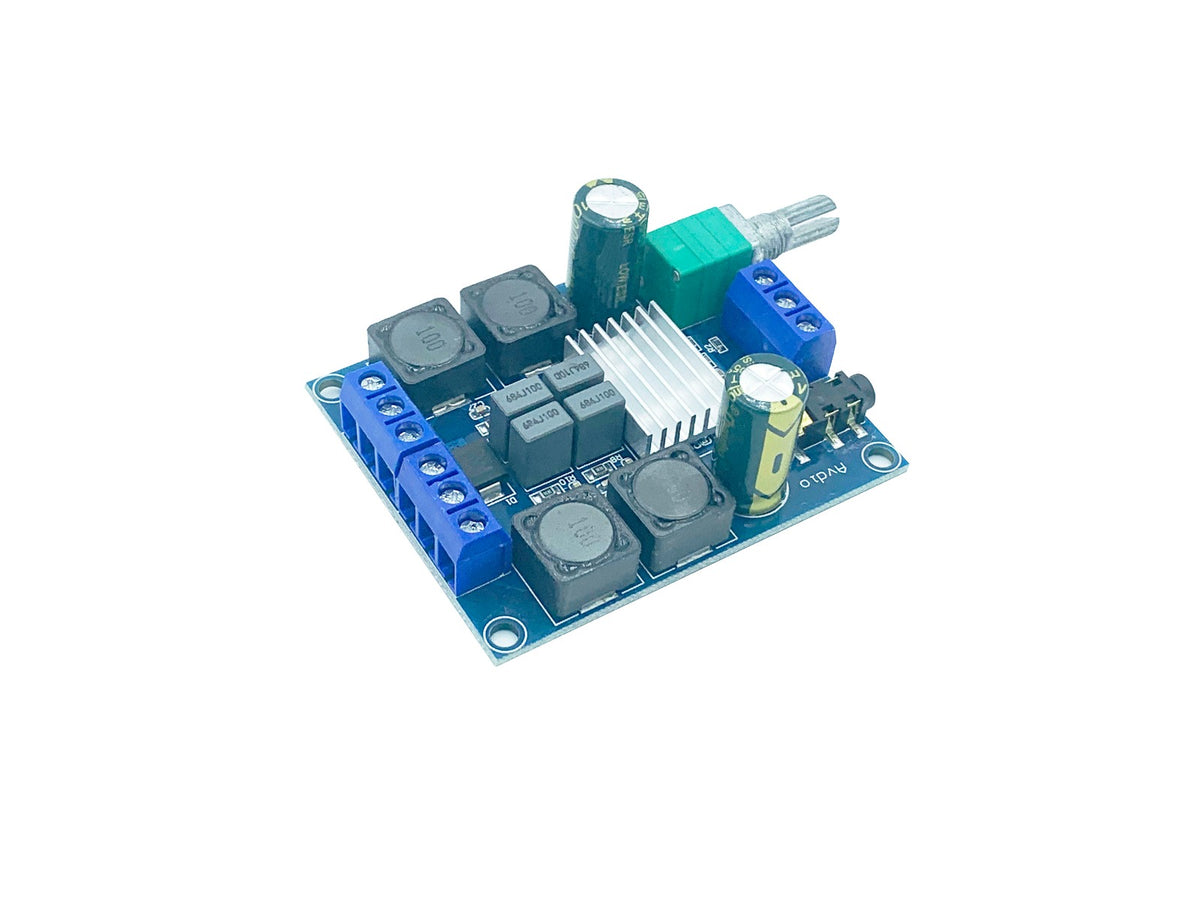

Hardware overview
Getting started
- Check the audio input, output and power connections.
- Connect a suitable supply and downstream speakers or amplifier.
- Test at a low volume, then adjust the controls for your application.
Frequently asked questions
Will I get the maximum listed power in every setup?
Output power depends on supply voltage, speaker impedance, signal level and thermal conditions. Select the supply and load for your required operating point.
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
TPS3116D2 High-Power Digital Power Amplifier Module
SKU: 2080010
