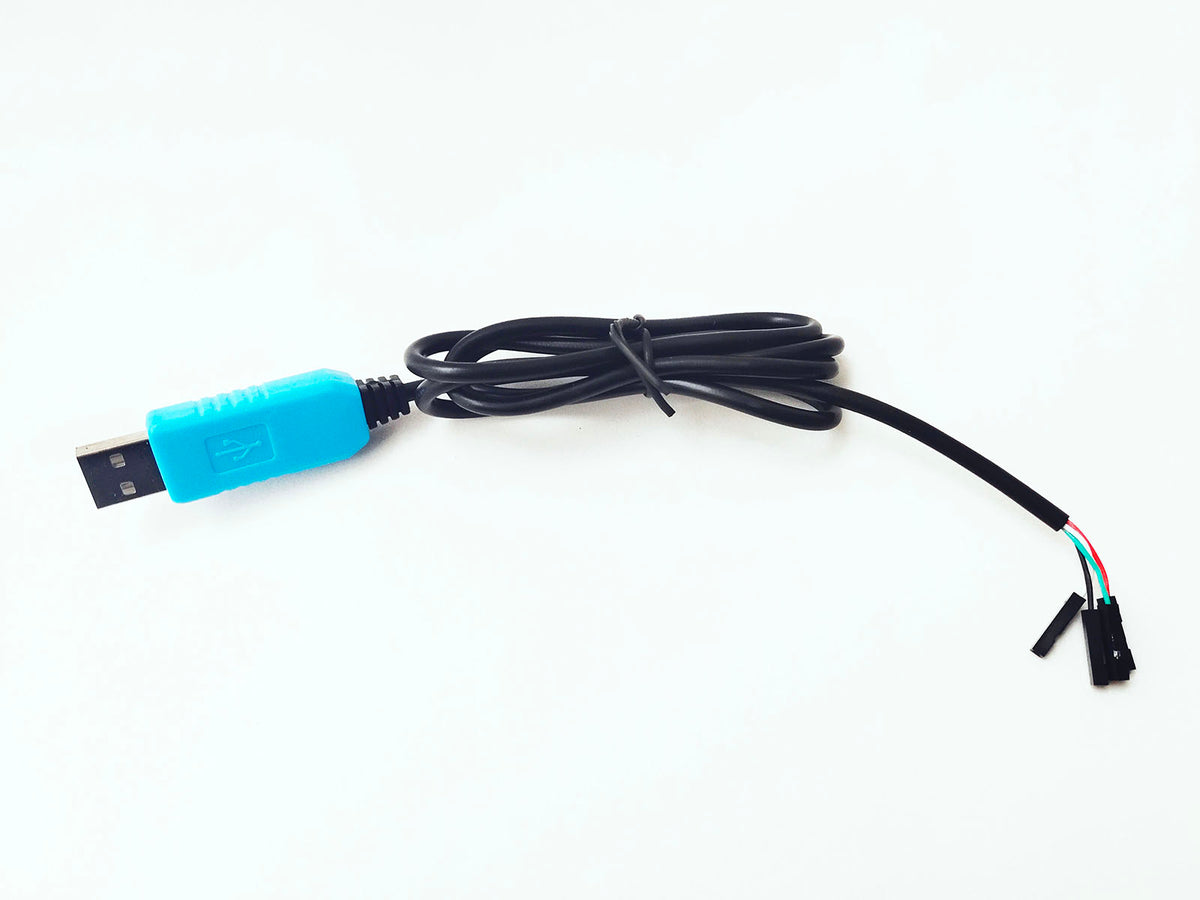

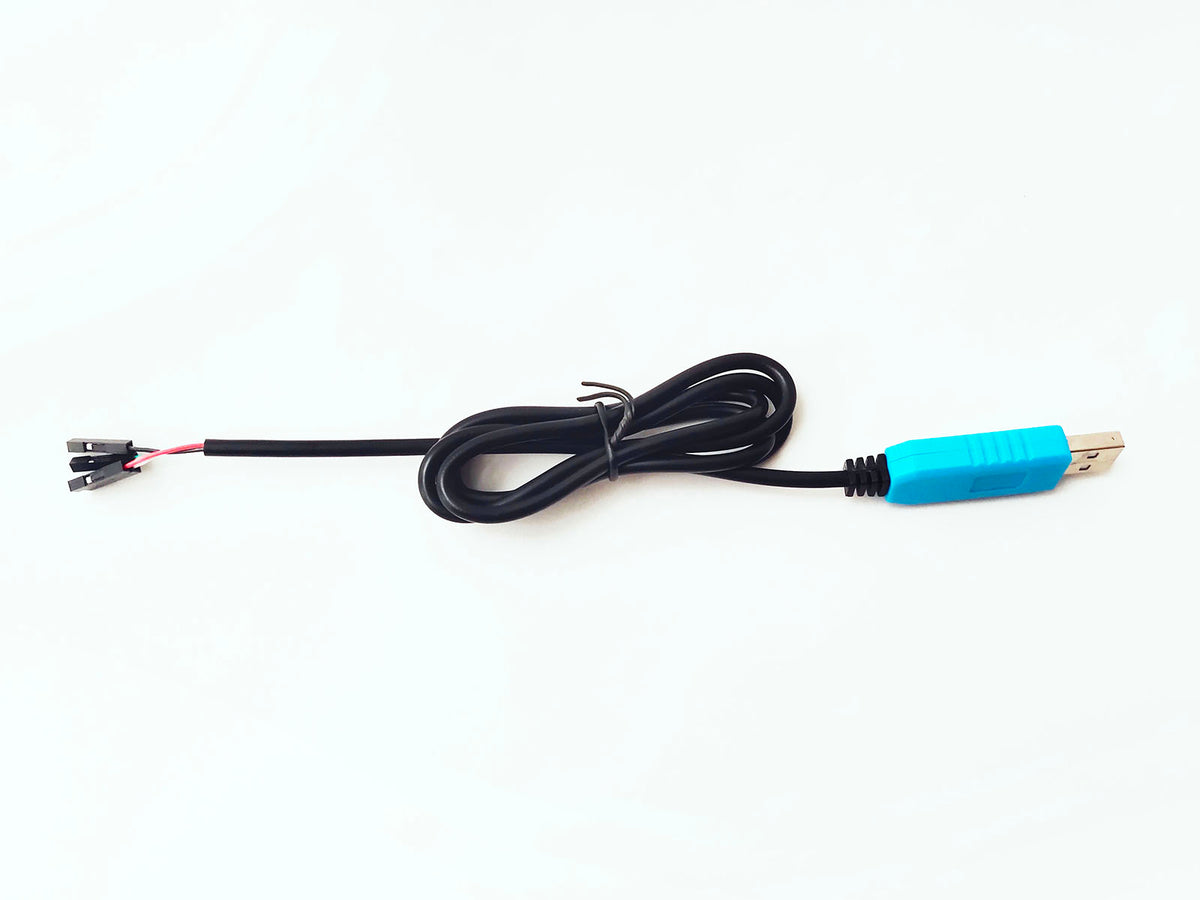

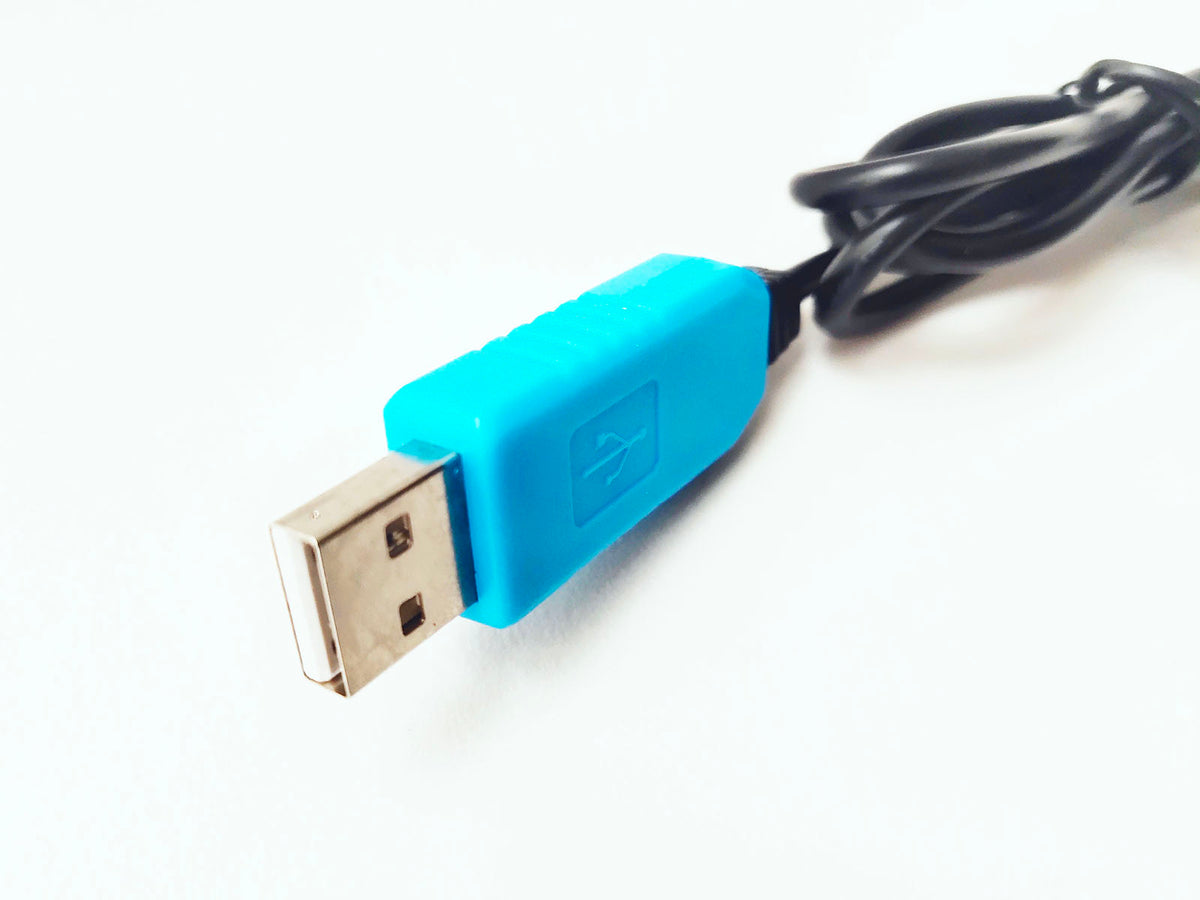

PL2303 USB-TTL SERIAL PORT CABLE
Connect a computer to a logic-level serial port.
Use a PL2303TA USB-to-TTL cable for compatible serial communication and programming workflows. The cable has a four-pin, 2.54 mm female header for connecting to your target.
Before you order: Check the physical interface, power and signal levels for your host. Match the communication settings at both ends.
Features
- Work with Win XP/7/8/10 system
- 4-Pin 2.54 female header
| Working voltage | 5V |
|---|
Pinout & connections
| Red | 5V |
|---|---|
| Black | GND |
| Green | TXD |
| White | RXD |
How to Use
- Install the driver .
- Reboot your PC.
- Plug the cable to USB port of your PC.
- Open your serial terminal.
- Connect RXD and TXD together, send something, see if you can get it.
Reference:
Frequently asked questions
Does the connector guarantee host compatibility?
Check the signal standard, logic levels, firmware or driver and communication settings. Matching physical connectors alone is not sufficient.
Documentation & downloads
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
