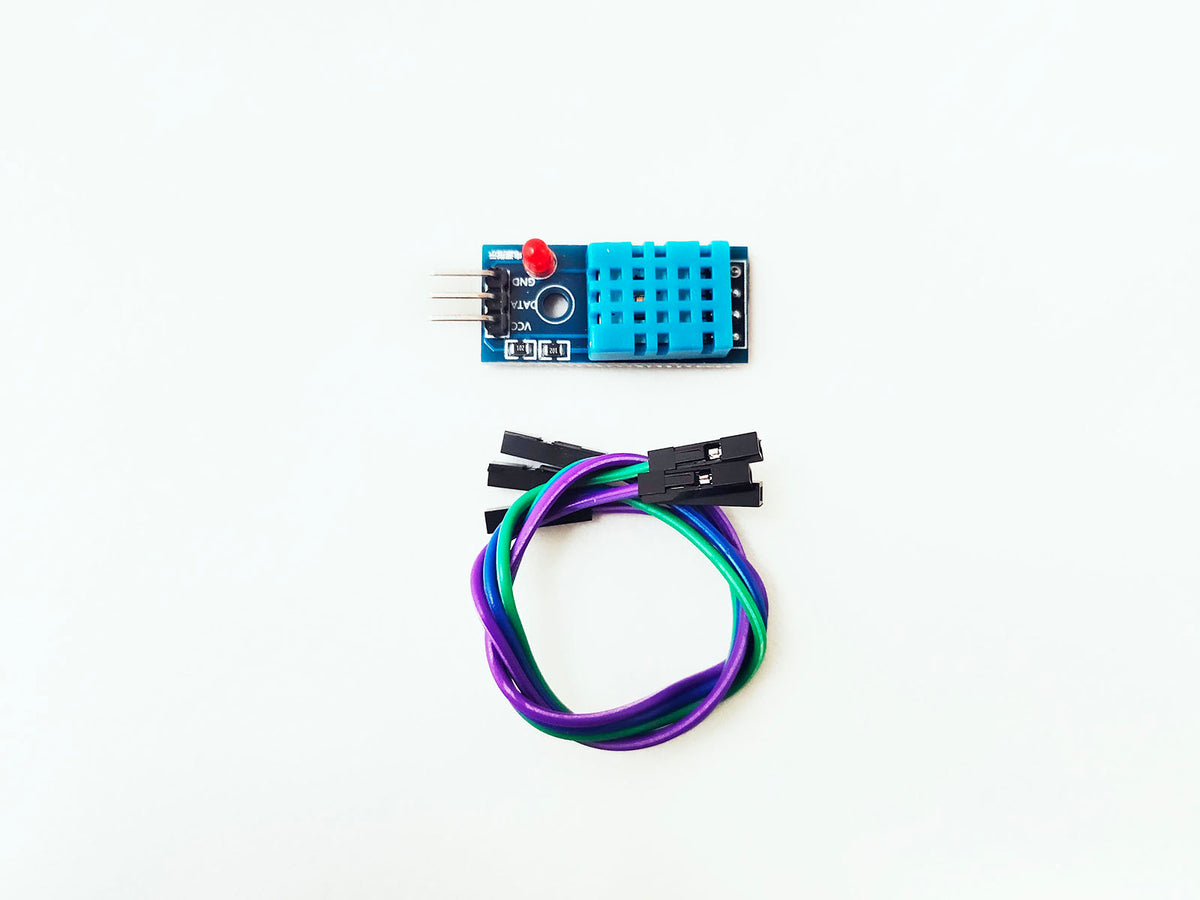

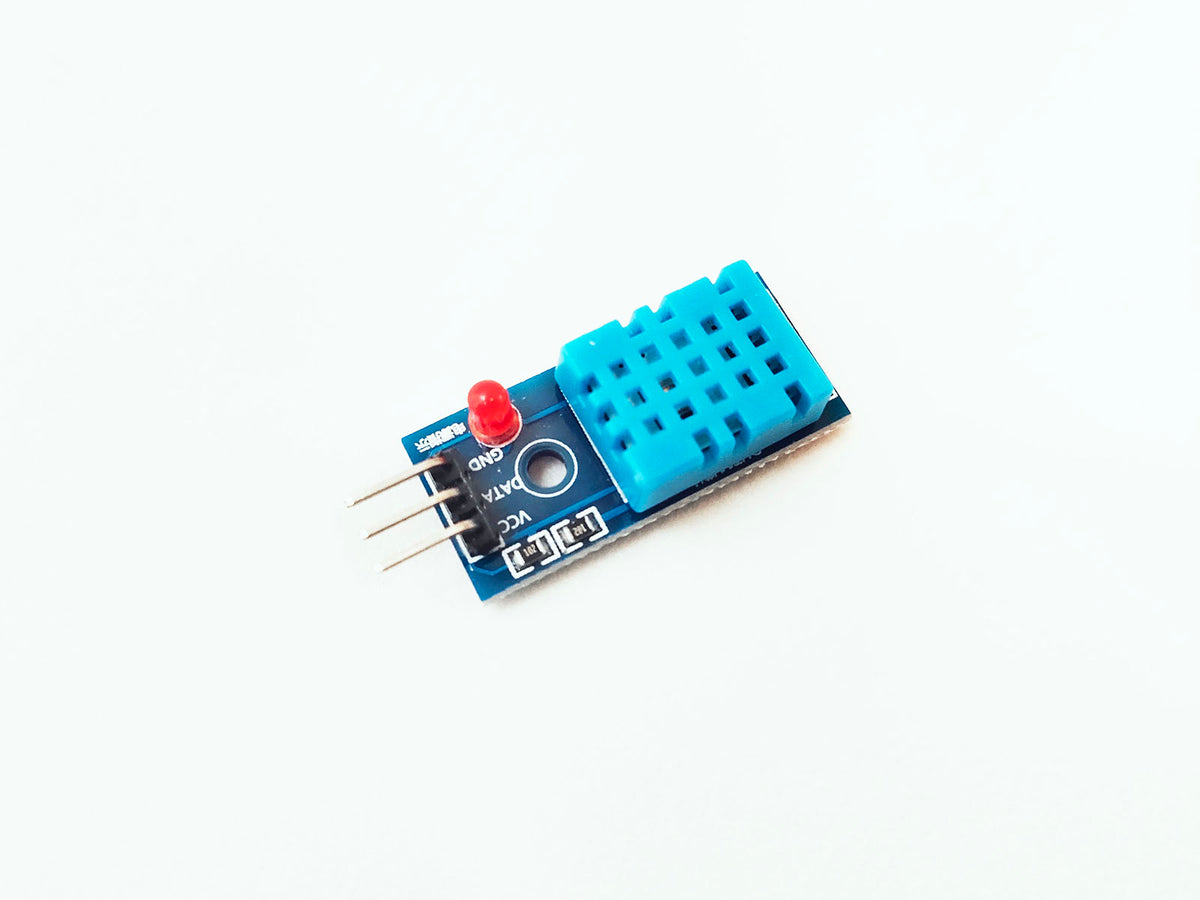

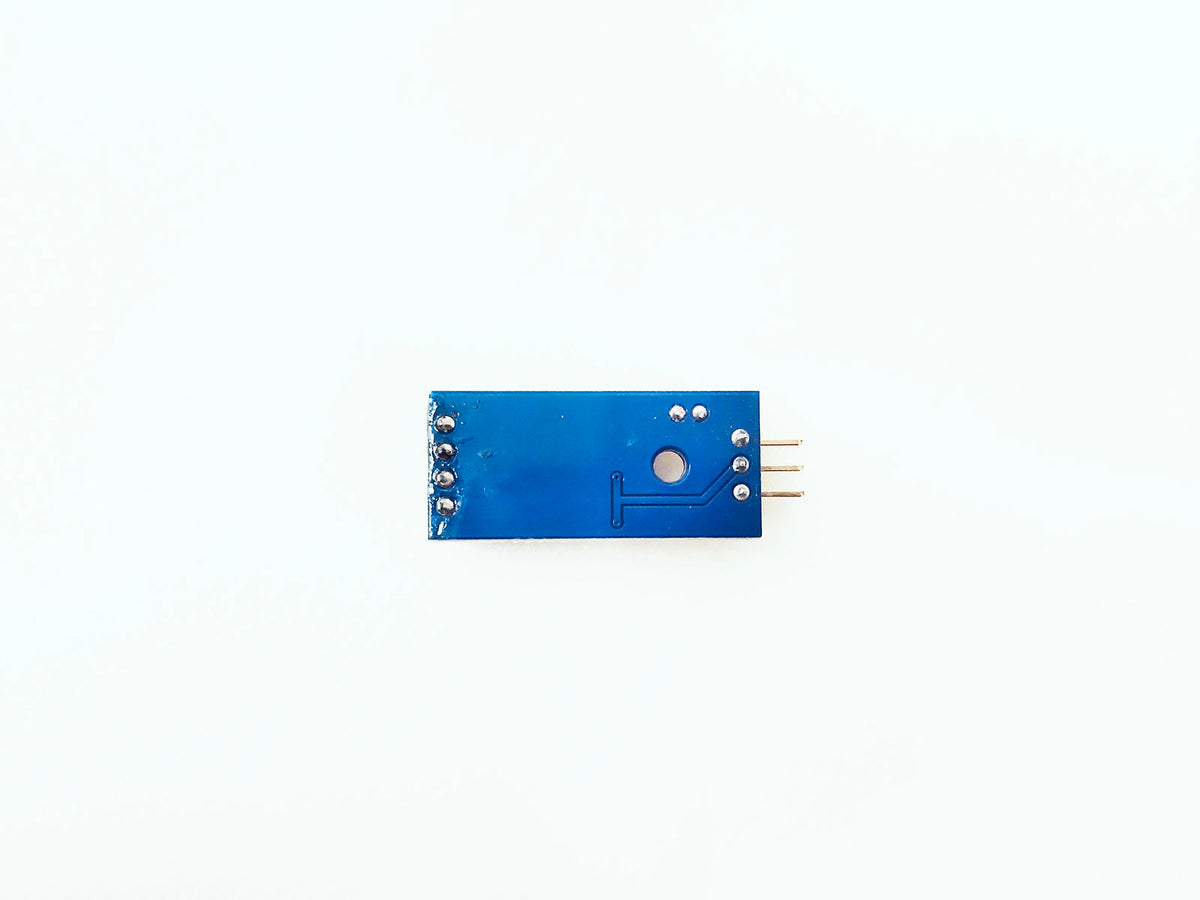

DHT11 TEMPERATURE & HUMIDITY SENSOR
Read digital temperature and humidity.
Add a DHT11 sensor module to a controller project for basic environmental readings. Use the digital interface and downloadable Arduino resources to start measuring temperature and humidity.
Before you order: Match power, signal levels and the connector pinout to your host before connecting the module.
Features
- LED indicatory
| Input voltage | 3.3/5V |
|---|---|
| Working temperature | 0~50℃, ±2℃ |
| Humidity | 20%~95%, ±5% |
| Size | 32x14mm |

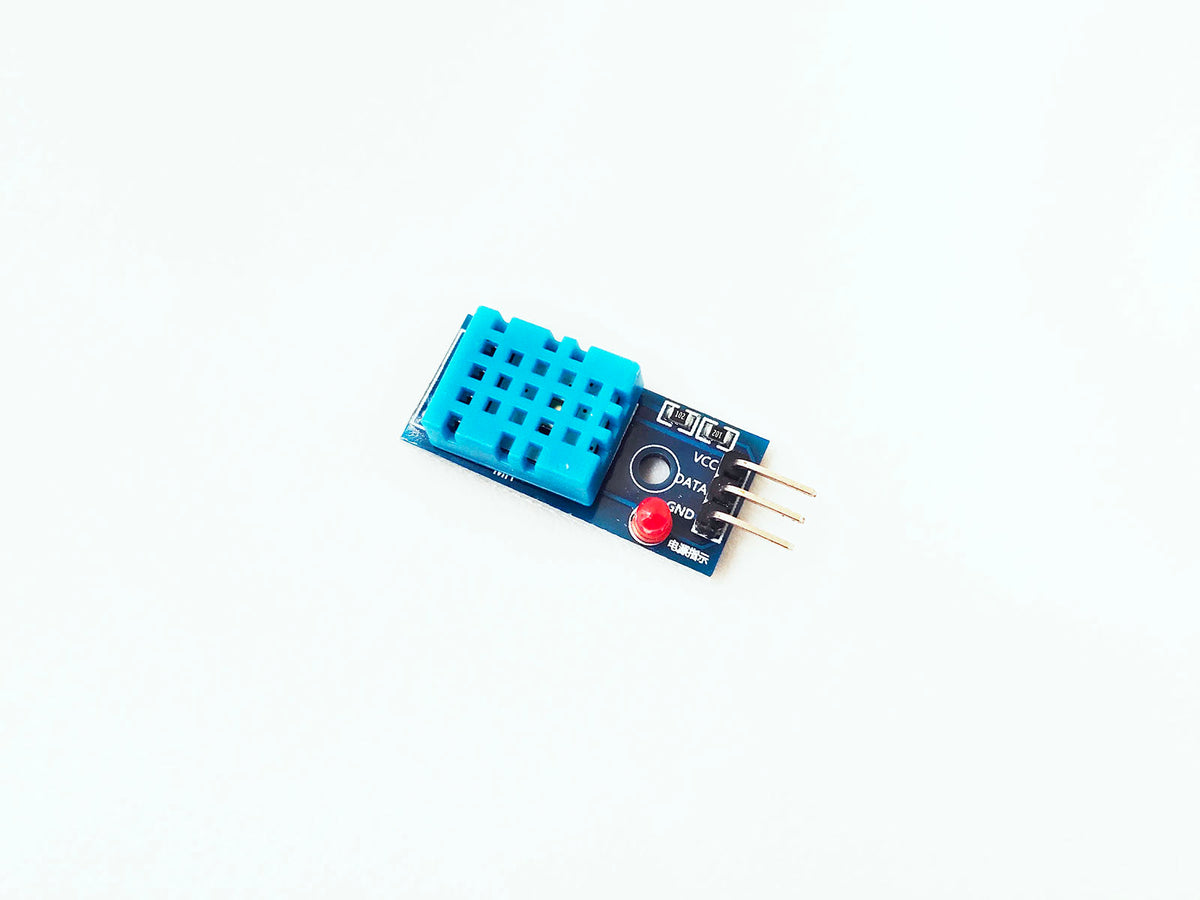

Pinout & connections
| Pin | Name | Description |
|---|---|---|
| 1 | VCC | VCC, 3.3/5V |
| 2 | DATA | Data output |
| 3 | GND | Ground |
Getting started
- Confirm the power, ground and signal pinout.
- Connect to a suitable input or bus on your controller.
- Read a basic sample and check its response in the intended environment.
Frequently asked questions
Can I use the reading directly in my application?
Check the response with your host and the conditions where it will be used. Analog signals and threshold outputs require different processing from digital measurements.
Documentation & downloads
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
