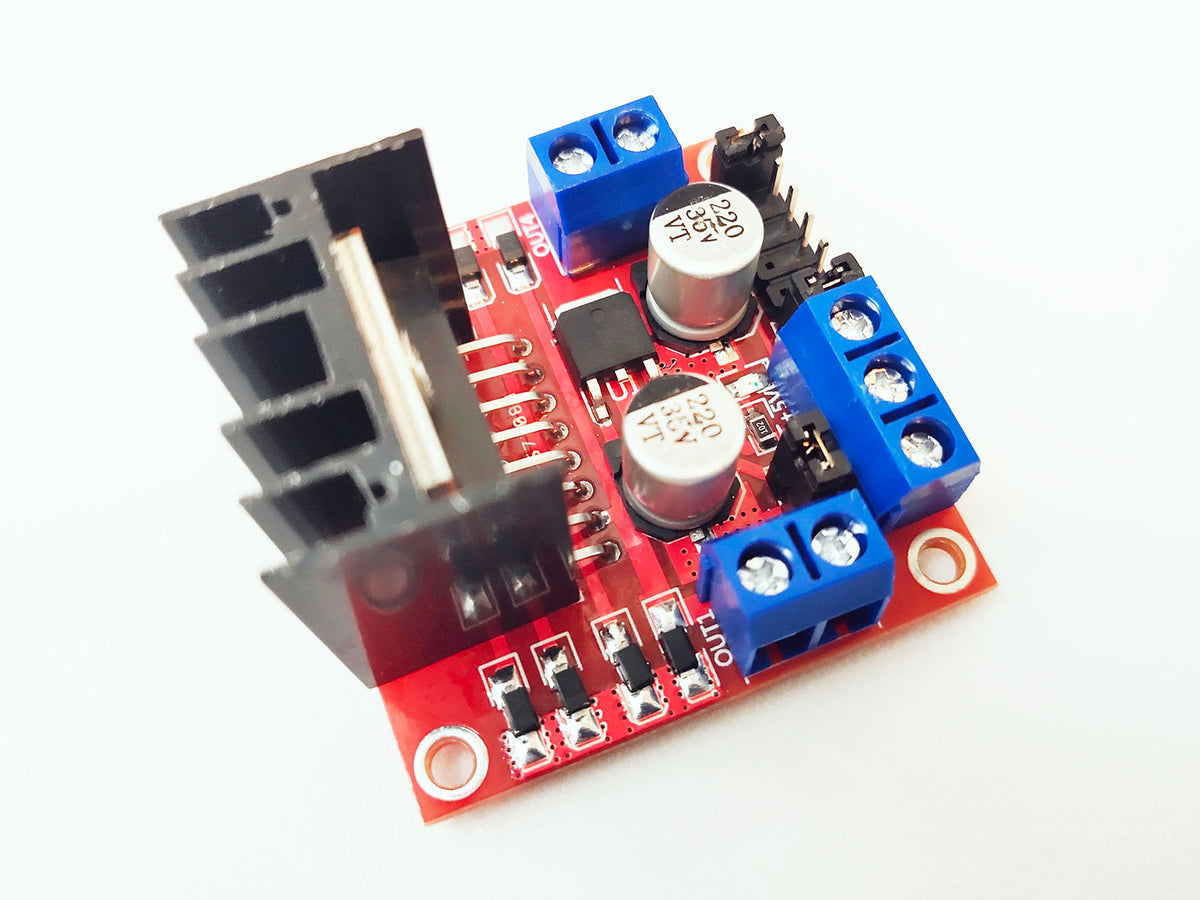

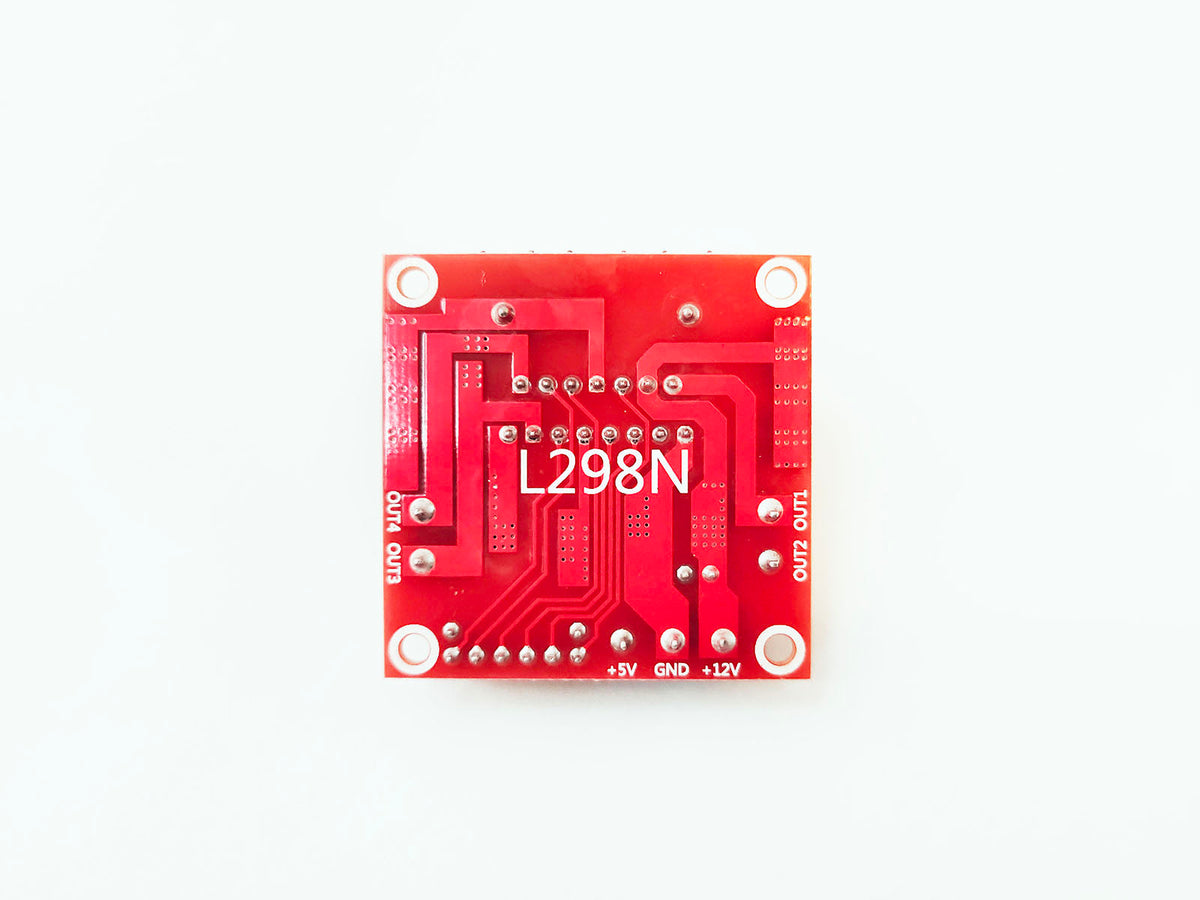

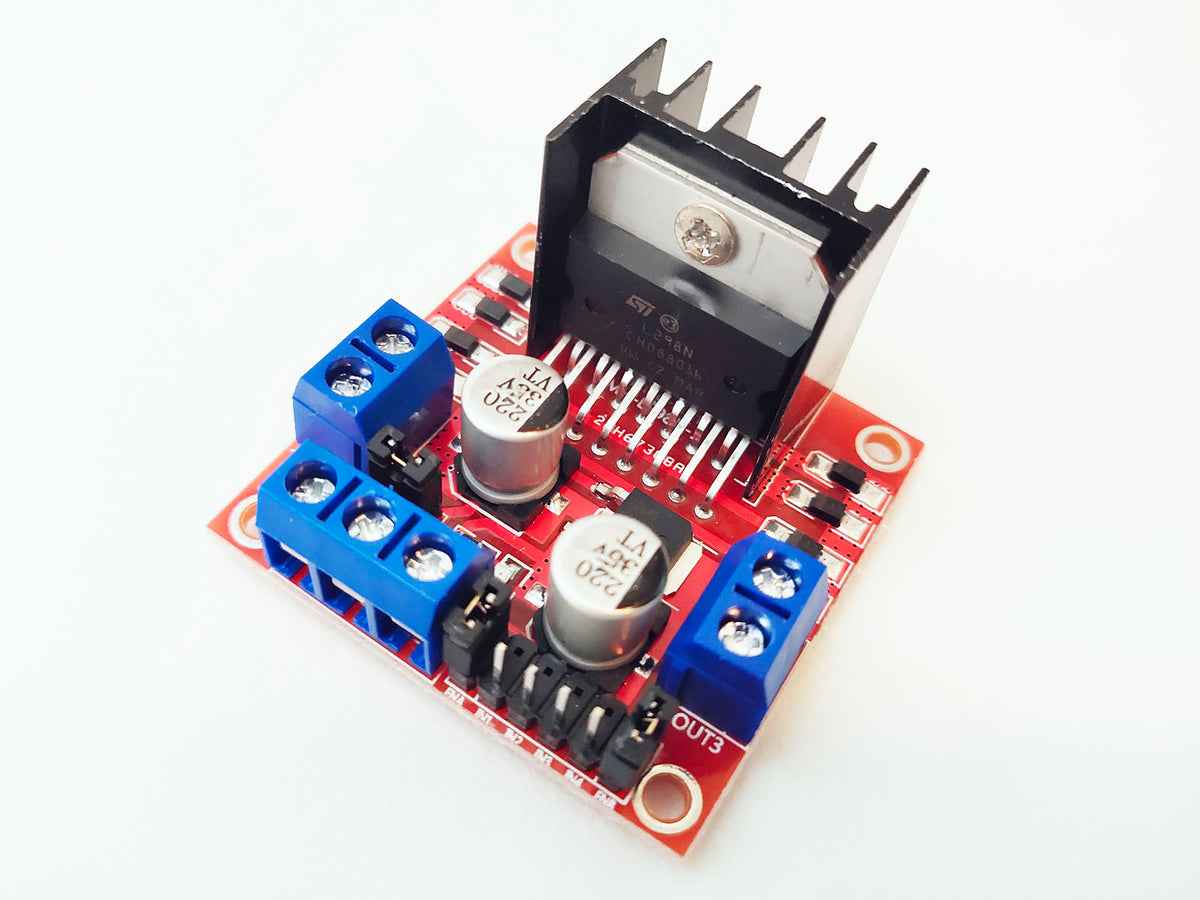

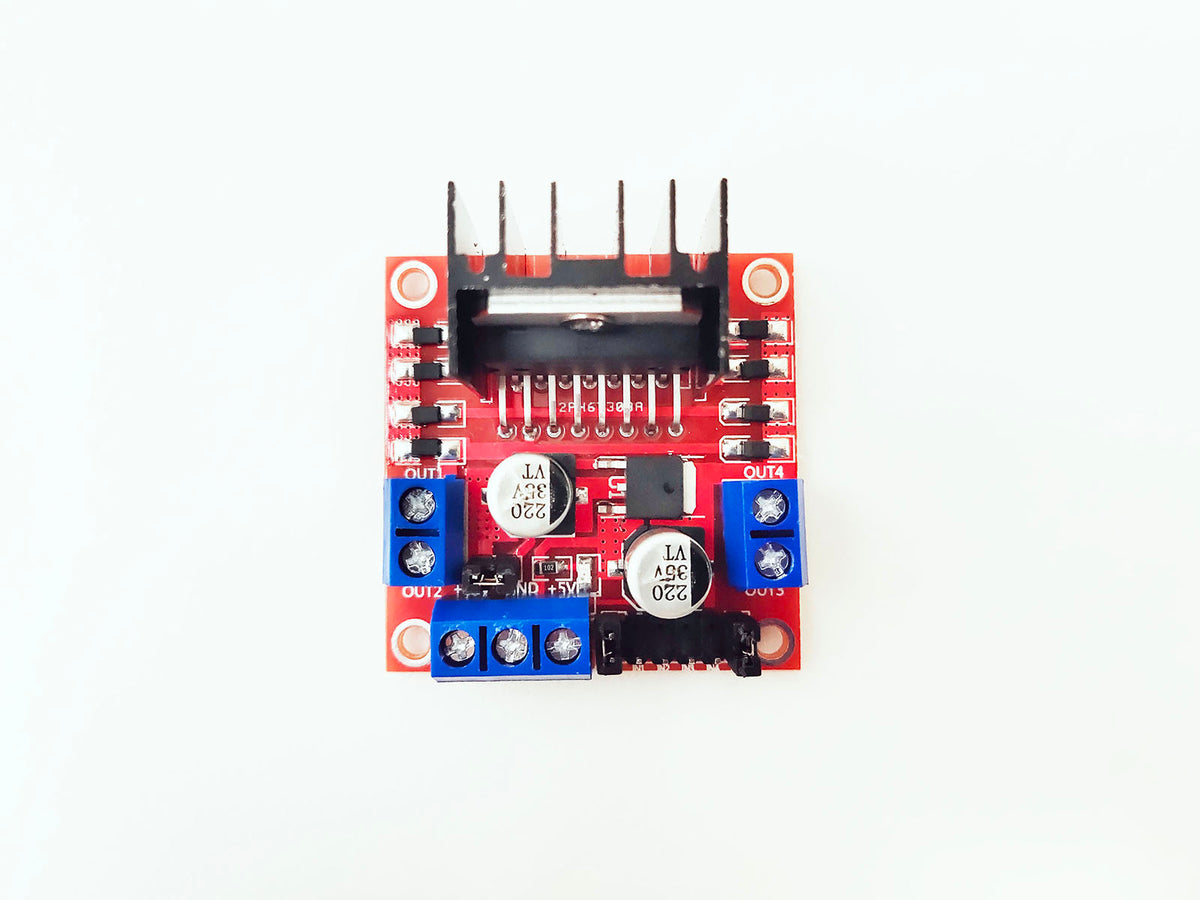

L298N MOTOR DRIVER
Control motor direction with an L298N board.
Use an L298N driver module between your controller and compatible motor loads. Plan the motor supply, logic supply and onboard regulator configuration before testing movement.
Before you order: Check the onboard regulator jumper and power wiring. Use a separate 5 V logic supply when the motor supply exceeds 12 V.
Features
| Input voltage | 5~35V |
|---|---|
| Logic voltage | 5V |
| Output current | 2A per bridge; allow for the thermal limits of the assembled module. |
| Size | 43x43x27mm |
Pinout & connections
Additional technical details
- Onboard logic regulator: 78M05. Check the regulator jumper and power arrangement for your motor supply.
Frequently asked questions
Can the controller power the load directly?
Use the control connection to command the module and provide a suitable load supply. Check startup current and the driver thermal limits.
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
