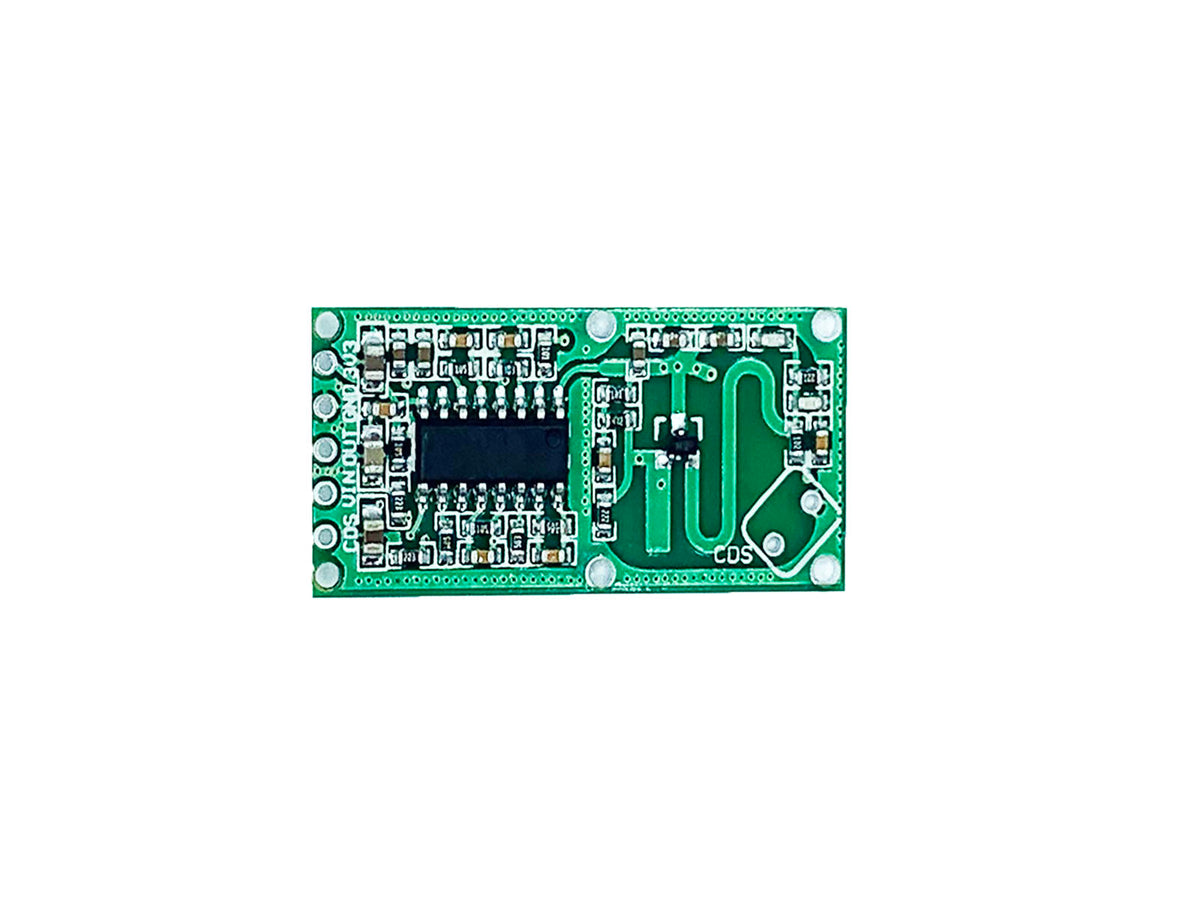

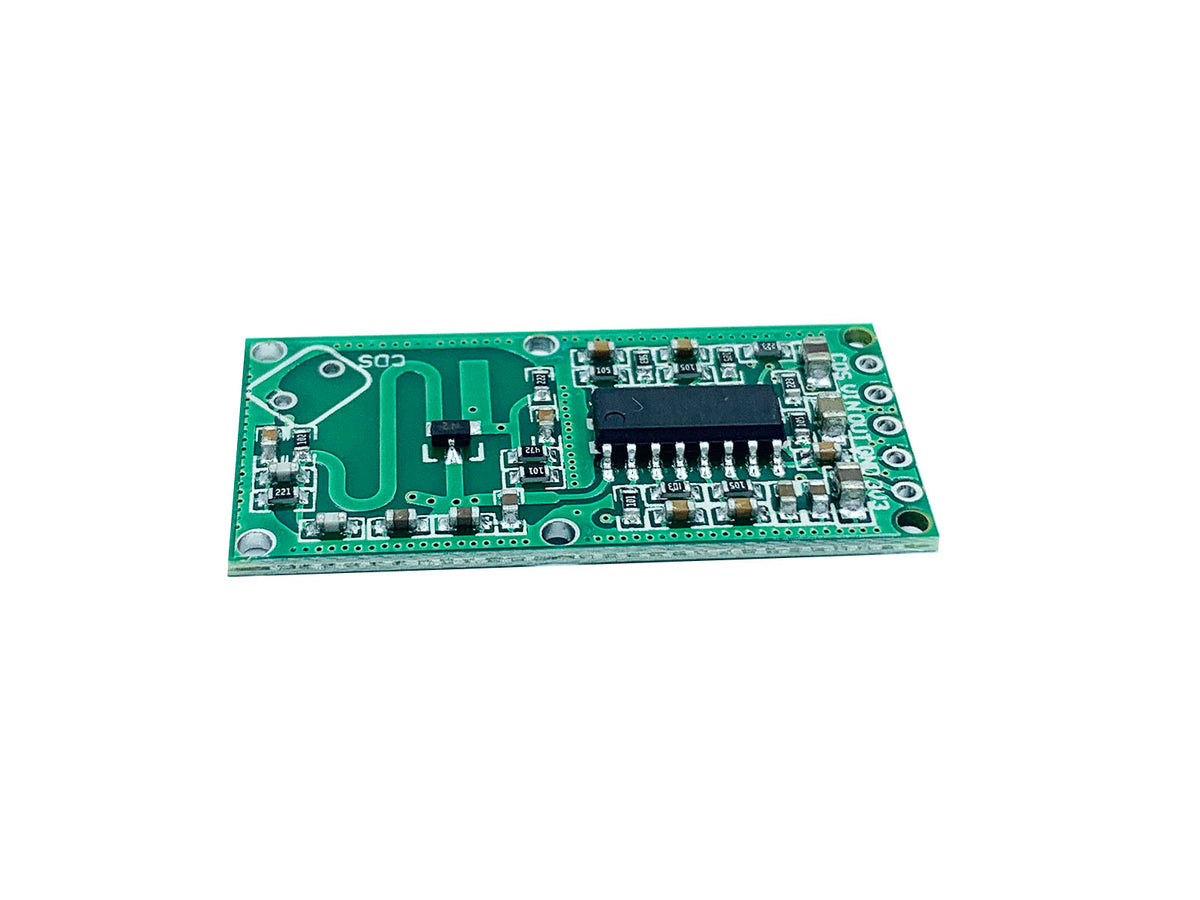

RCWL-0516 MICROWAVE SENSOR
Detect movement with a microwave sensor.
Add motion detection using an RCWL-0516 module with a 3.3 V HIGH output. Use it as an input for controller-based lighting and other interactive prototypes.
Before you order: Match power, signal levels and the connector pinout to your host before connecting the module.
Features
- RCWL-9196 IC
- Penetration detection
| Input voltage | 4~28V |
|---|---|
| Output voltage | 3.3V HIGH |
| Detection distance | 7m |
| Working current | 2.8mA |
| Size | 37x18mm |

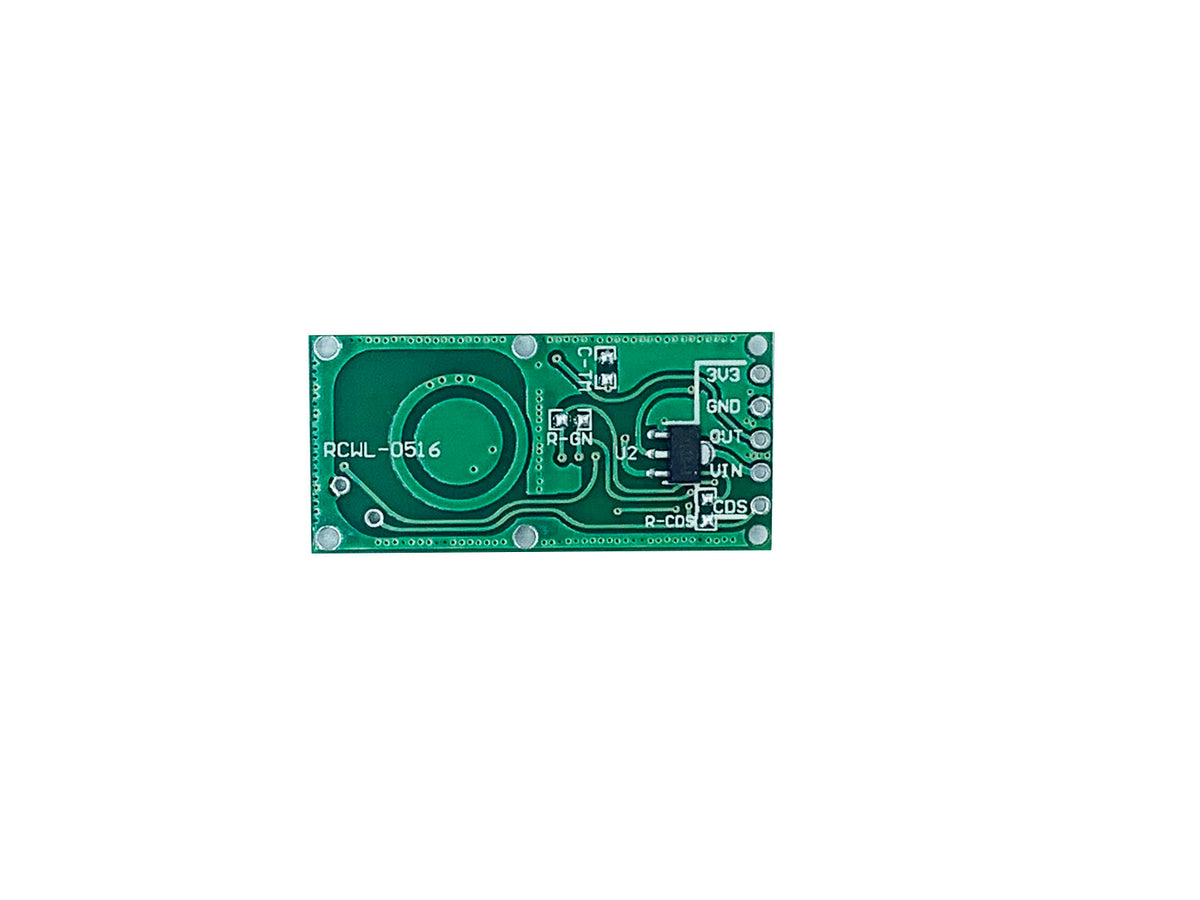

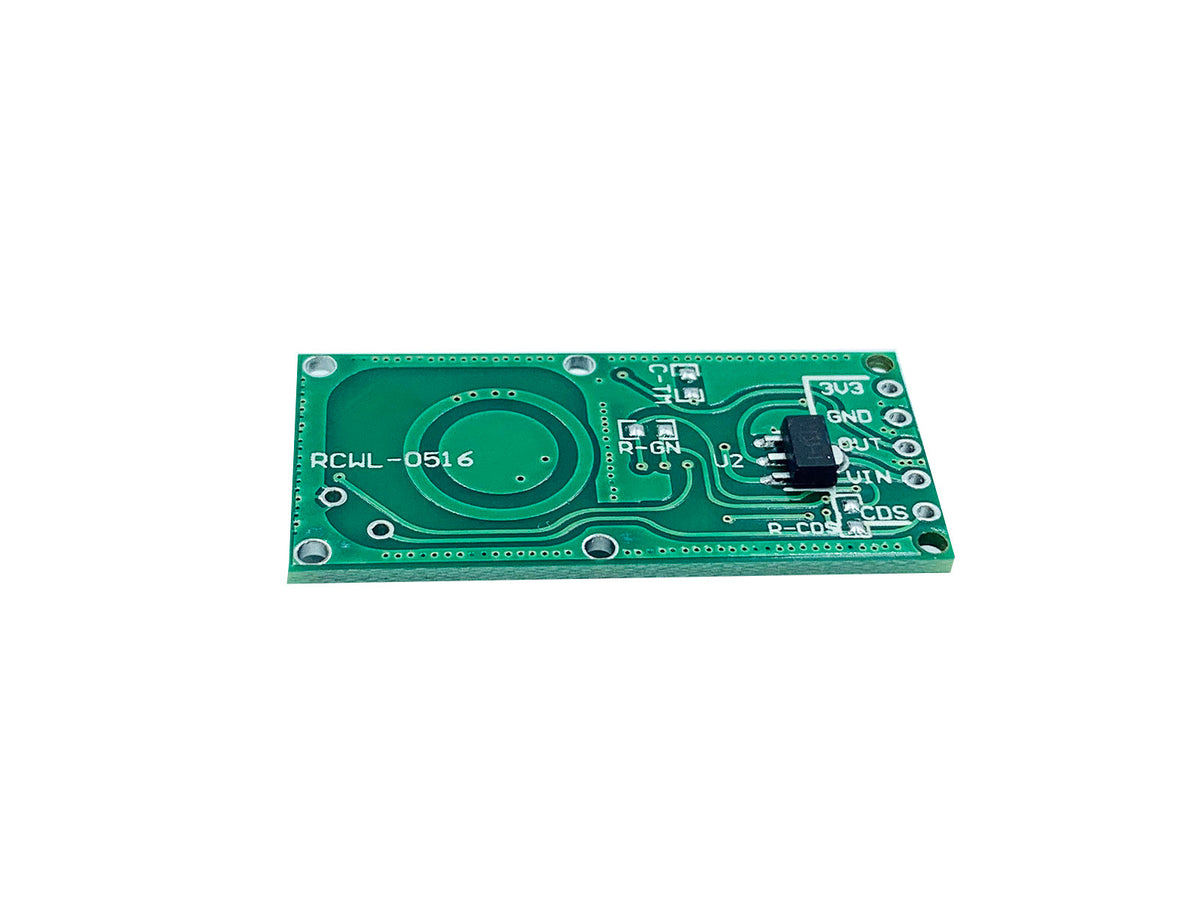

Pinout & connections
| 3V3 | 3.3V Output |
|---|---|
| GND | Ground |
| OUT | Signal output |
| VIN | 4~28V input |
| CDS | Chip enable, HIGH active |
Getting started
- Confirm the power, ground and signal pinout.
- Connect to a suitable input or bus on your controller.
- Read a basic sample and check its response in the intended environment.
Frequently asked questions
Can I use the reading directly in my application?
Check the response with your host and the conditions where it will be used. Analog signals and threshold outputs require different processing from digital measurements.
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
