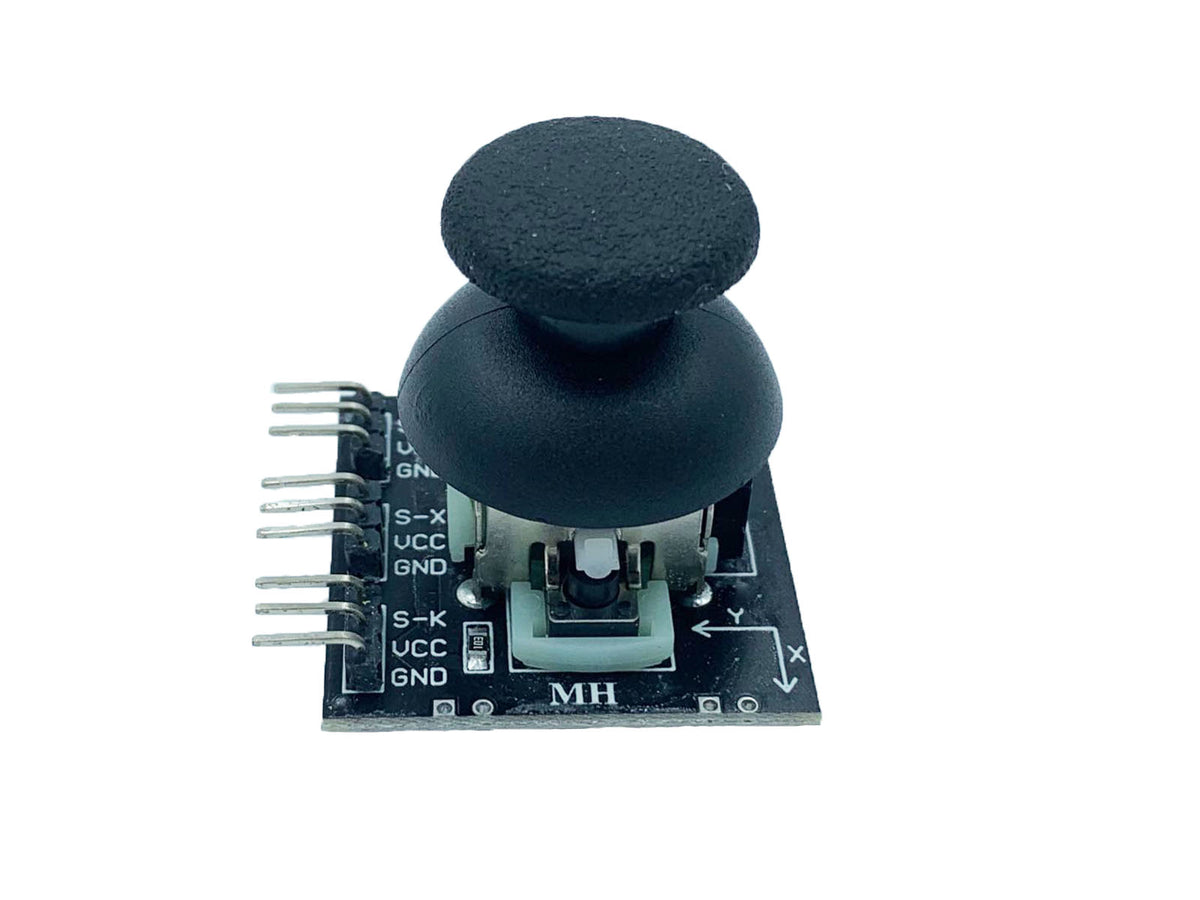

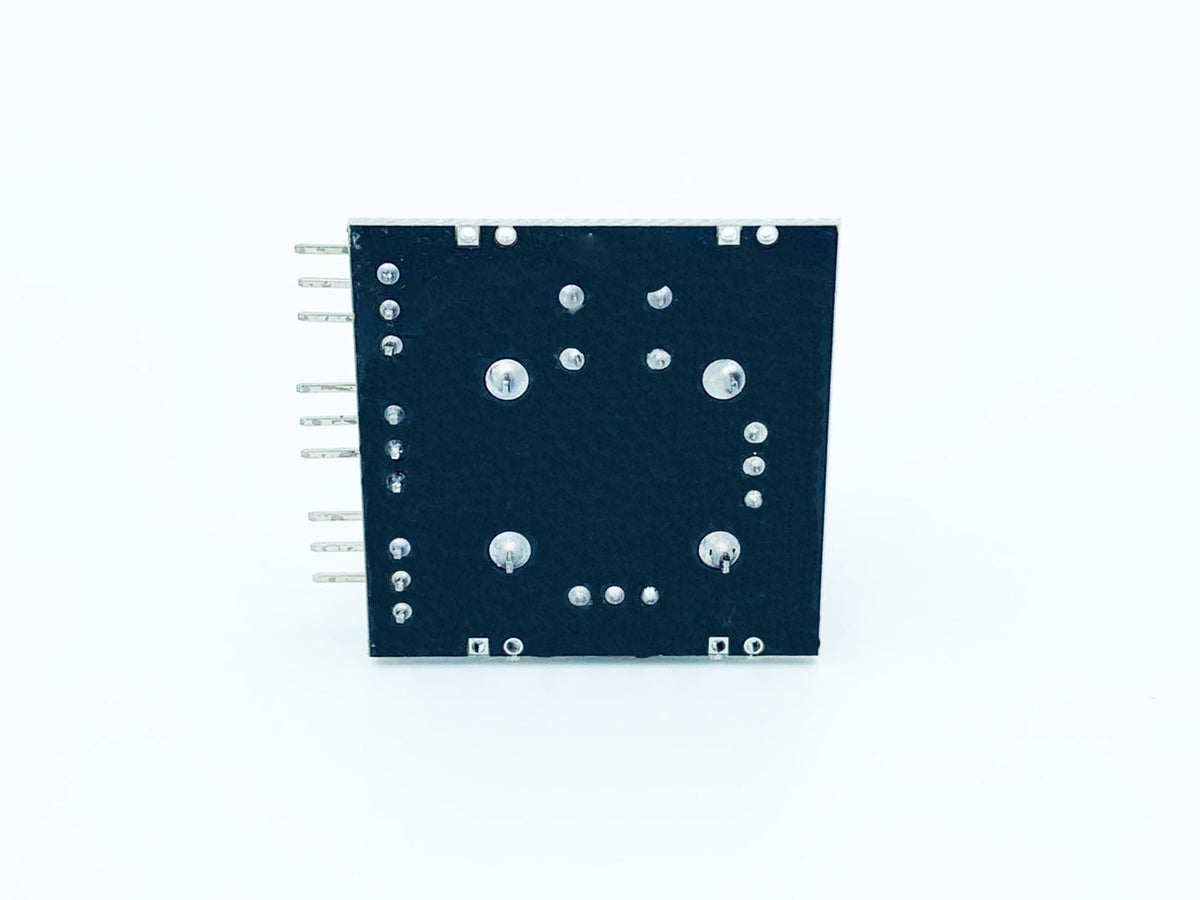

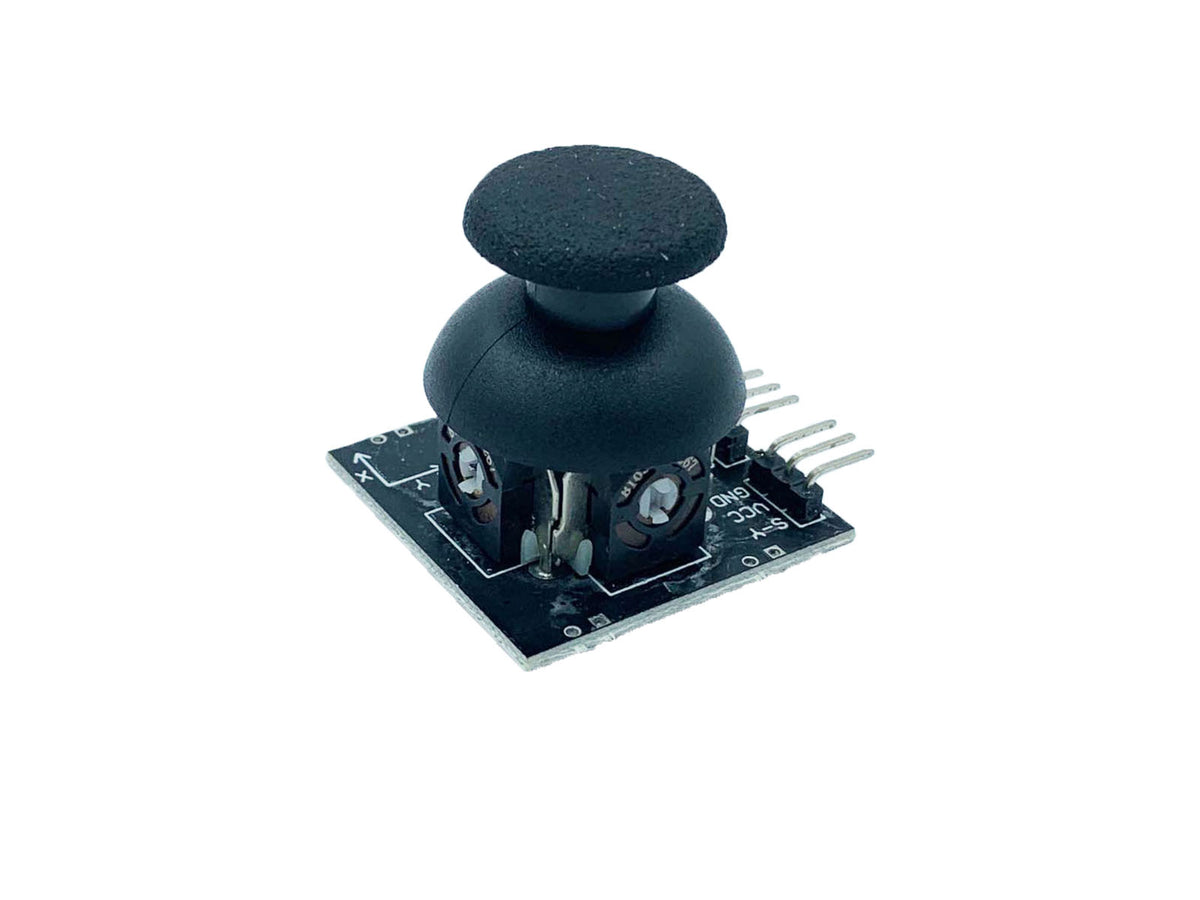

JOYSTICK MODULE
Add two-axis joystick input and a push button.
Read horizontal and vertical movement through two analog outputs, plus a digital push-button input. Use the joystick module for menus, control panels and interactive prototypes.
Before you order: Match power, signal levels and the connector pinout to your host before connecting the module.
Features
- X, Y analog output and Z digital output
| Input voltage | 3.3/5V |
|---|
Pinout & connections
| S-Y | Analog output of Y |
|---|---|
| S-X | Analog output of X |
| S-K | Digital output of Z |
| VCC | power input + |
| GND | power input - |
Getting started
- Confirm the power, ground and signal pinout.
- Connect to a suitable input or bus on your controller.
- Read a basic sample and check its response in the intended environment.
Frequently asked questions
Can I use the reading directly in my application?
Check the response with your host and the conditions where it will be used. Analog signals and threshold outputs require different processing from digital measurements.
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
