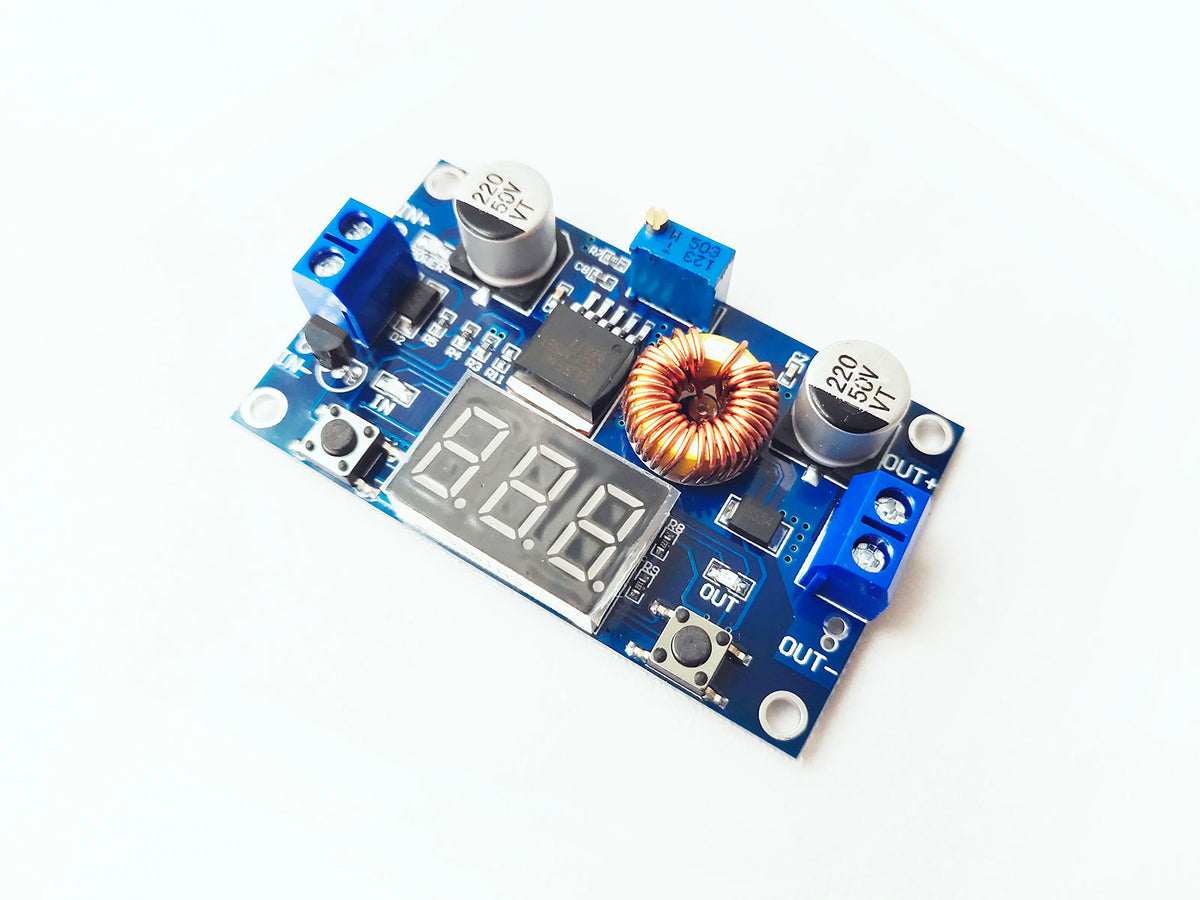

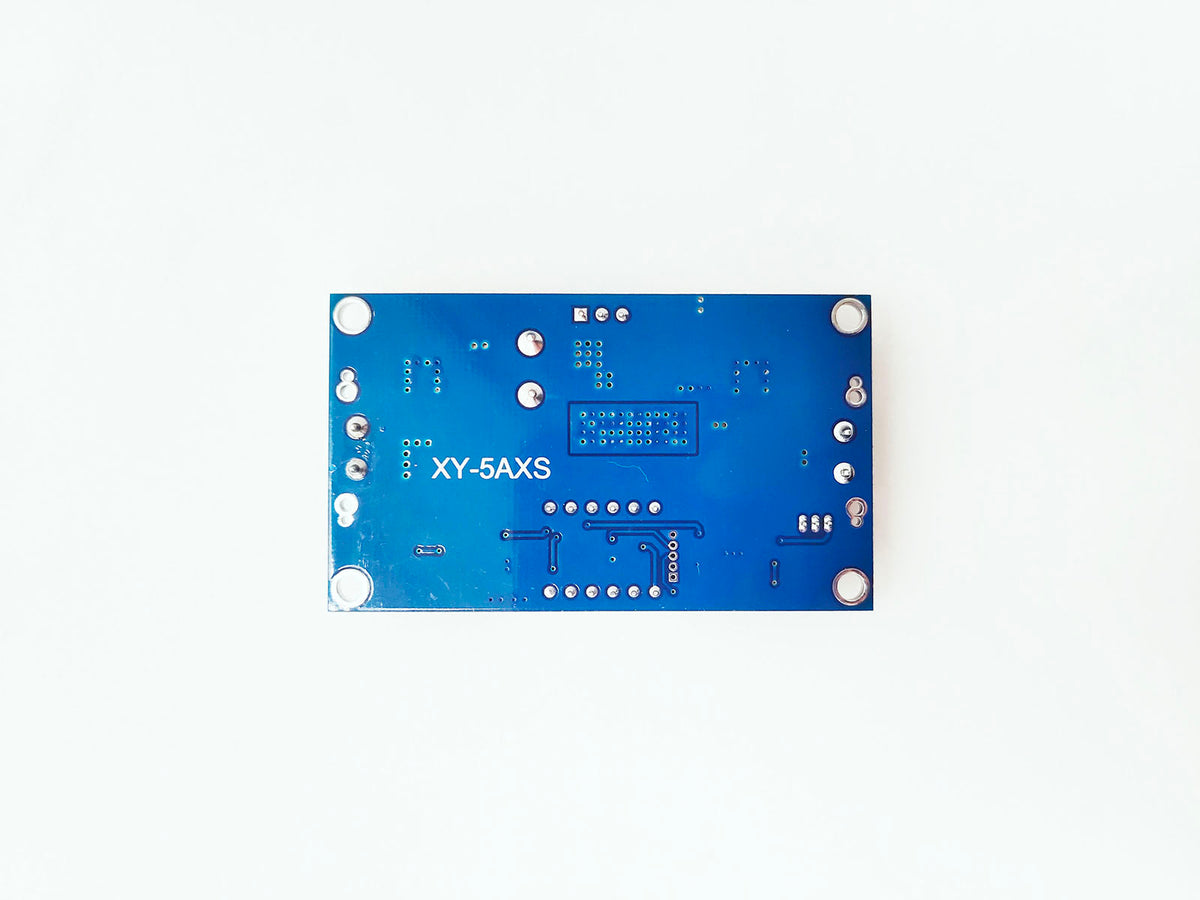

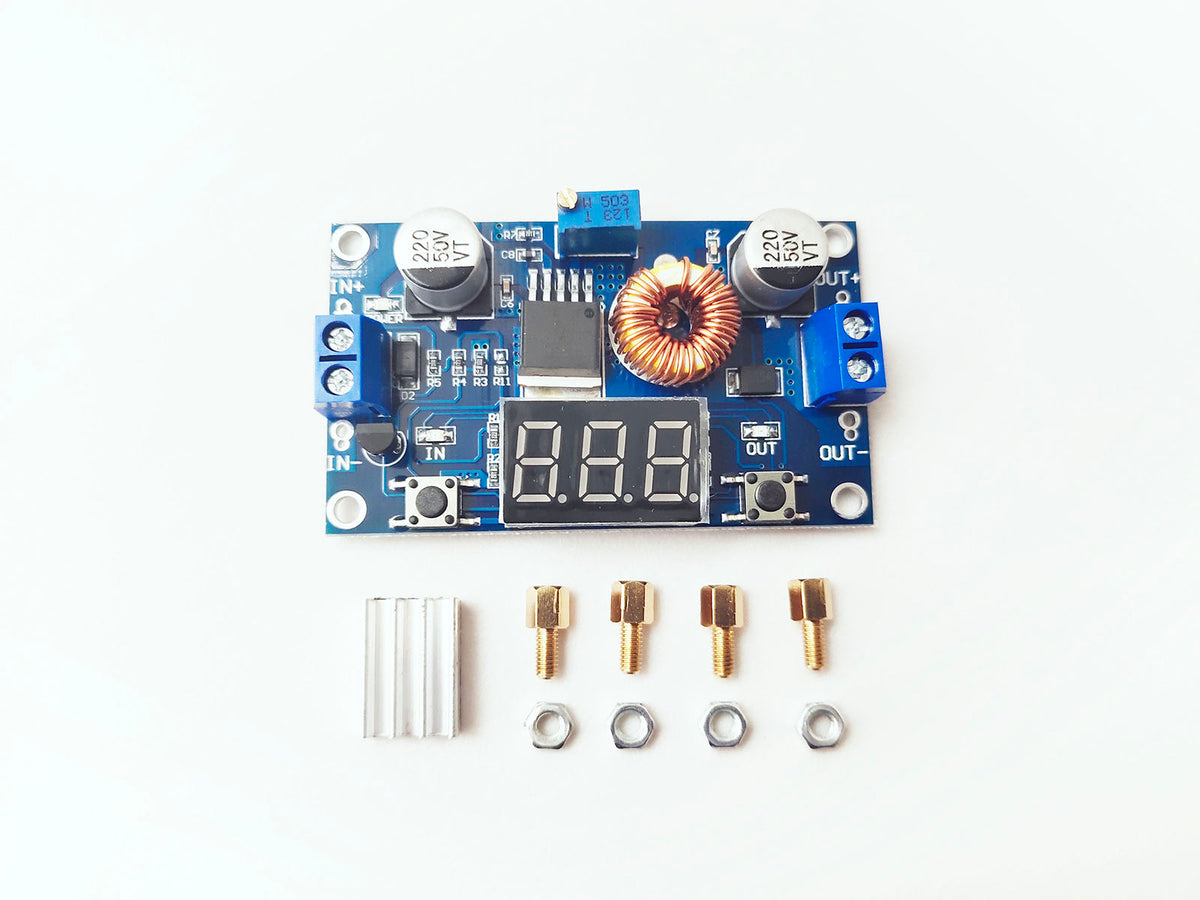

DC-DC ADJUSTABLE STEP-DOWN CONVERTOR 5A/75W WITH DIGITAL DISPLAY
Set a step-down output and view its voltage.
Adjust a DC buck-converter module for your project's supply voltage. The onboard display helps you view voltage while setting up the power connection.
Before you order: This is a power-conversion module. Set and measure the output before connecting a load, and allow for current and thermal limits.
Features
- Output voltage display
| Voltage input | 4~38V |
|---|---|
| Voltage output | 1.25~36V |
| Output Current | 5A (Max 75W); allow for the thermal limits of the assembled module. |
| Conversion efficiency | 96% (Max) |
| Size | 66x39x18mm |
| Weight | 28g |
How to Use
Clockwise: step-up, counterclockwise: step-down
NOTE: The input voltage should be 1.5V higher than the input voltage.
Reference:
Getting started
- Verify input polarity and connect a suitable DC source.
- Set or confirm the output voltage using a meter.
- Connect the load and check voltage and temperature under the expected current.
Frequently asked questions
Can I use the maximum listed current continuously?
Available continuous current depends on the input/output voltage, cooling and load. Check temperature and output stability under the expected operating conditions.
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
DC-DC Adjustable Step-Down Convertor 5A/75W with Digital Display
SKU: 2050005
