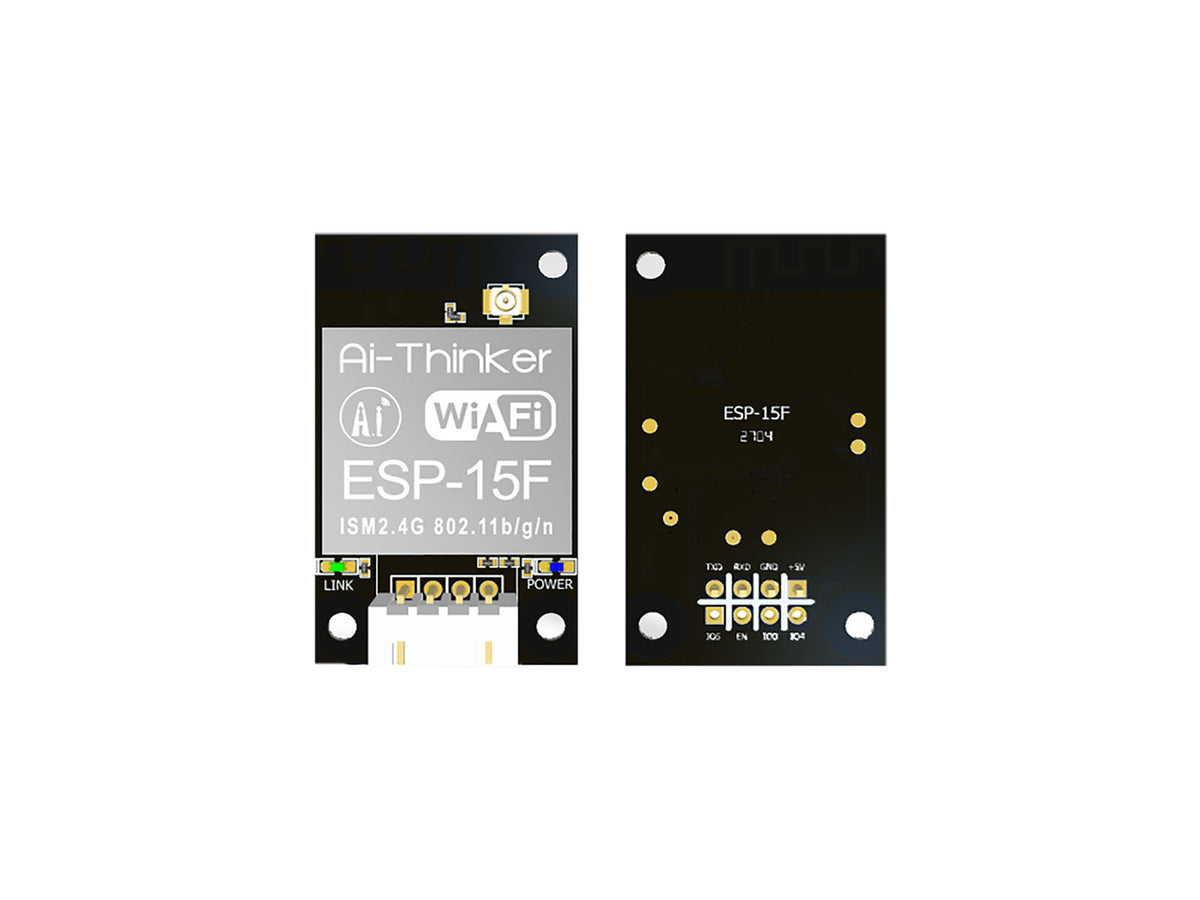

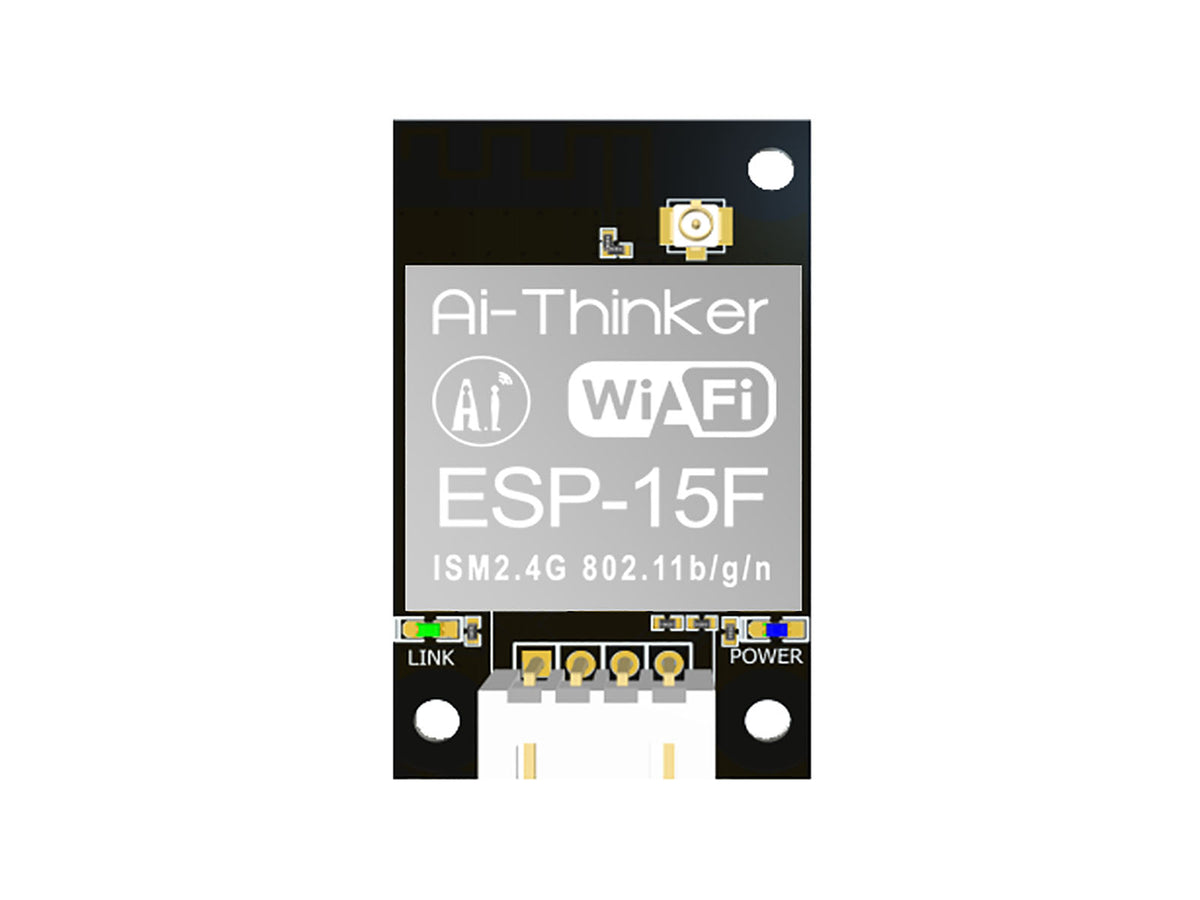

ESP8266 MODULE - ESP-15F
Add ESP8266 Wi-Fi to an embedded design.
Use an ESP-15F ESP8266 module for a custom Wi-Fi-enabled controller or serial-connected project. Check the module footprint, antenna arrangement, boot configuration and firmware against your design.
Before you order: Check the module footprint and pinout. Provide a suitable 3.3 V supply and use matching logic levels and boot settings.
Specifications
| Item | Value | Description |
|---|---|---|
| Size | 41.3x24.1x6.6mm | ±0.2mm |
| SPI Flash | 32Mbit | — |
| Interface | — | UART/GPIO/ADC/PWM |
| GPIO | 3 | — |
| Baud rate | 115200 | Support 300~4608000bps |
| Frequency | 2.4GHz | 2412~2482MHz |
| Antenna | Onboard | — |
| Transmit Power | 16±2dBm | 802.11b/g/n |
| Safety | — | WEP/WPA-PSK/WPA2-PSK |
| Power Supply | 3.3V | — |
| Working Temperature | -20~85℃ | — |
Pinout & connections
| Pin | Name | Description |
|---|---|---|
| 1 | TXD | UART0_TXD |
| 2 | RXD | UART0_RXD |
| 3 | GND | — |
| 4 | VCC | 5V |
| 5 | IO4 | GPIO4 |
| 6 | IO0 | GPIO0, uploading mode: LOW, Running mode: HIGH or draft |
| 7 | EN | Chip select, HIGH enable |
| 8 | IO5 | GPIO5 |
Application ideas
- Industrial manufacturing
- Smart home
- Smart Farm
- IoT
Getting started
- Plan the module footprint, supply and boot-strapping pins.
- Use a suitable UART or programming interface and matching logic levels.
- Load or configure firmware and test communication before integrating your application.
Frequently asked questions
Can I use it like a USB development board?
This is an embedded module. Plan the programming interface, power supply, boot pins and any carrier hardware required by your design.
Documentation & downloads
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
