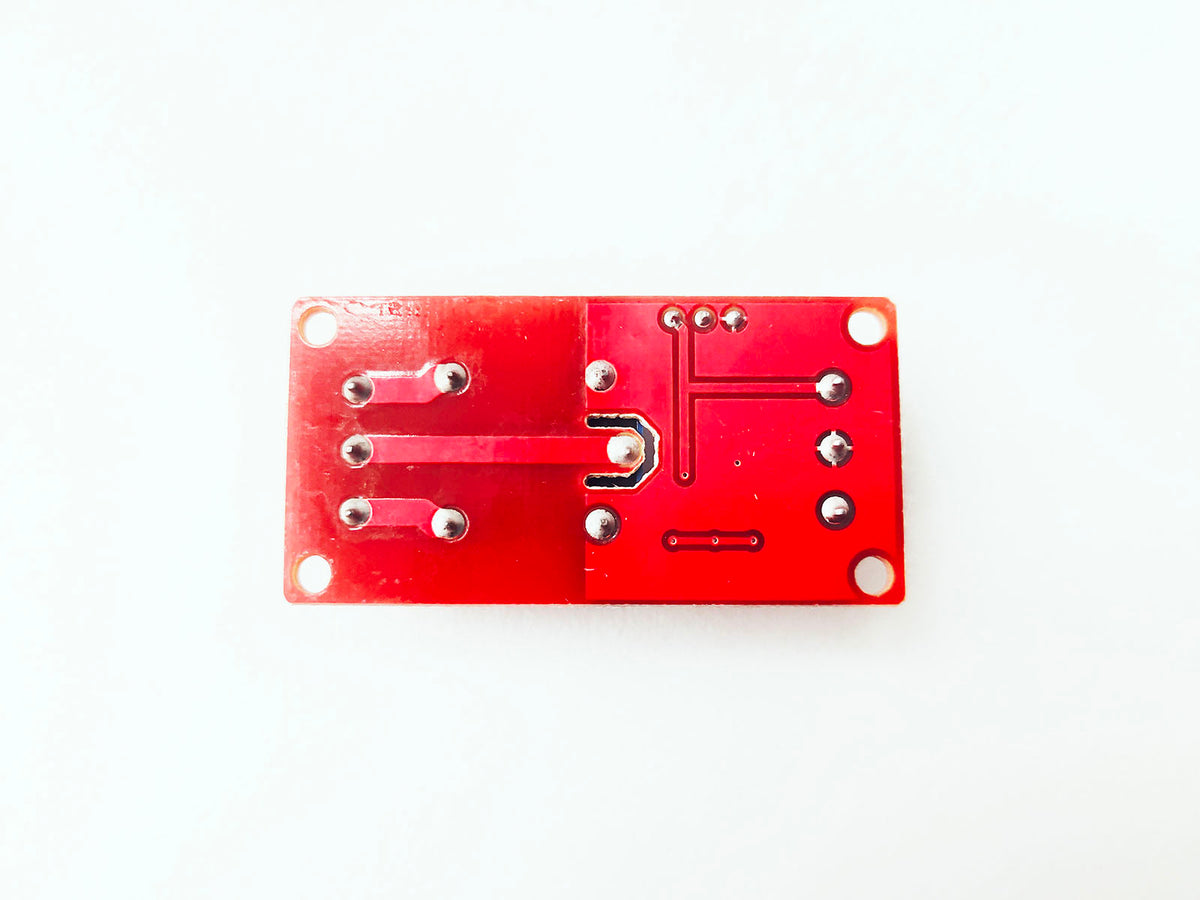

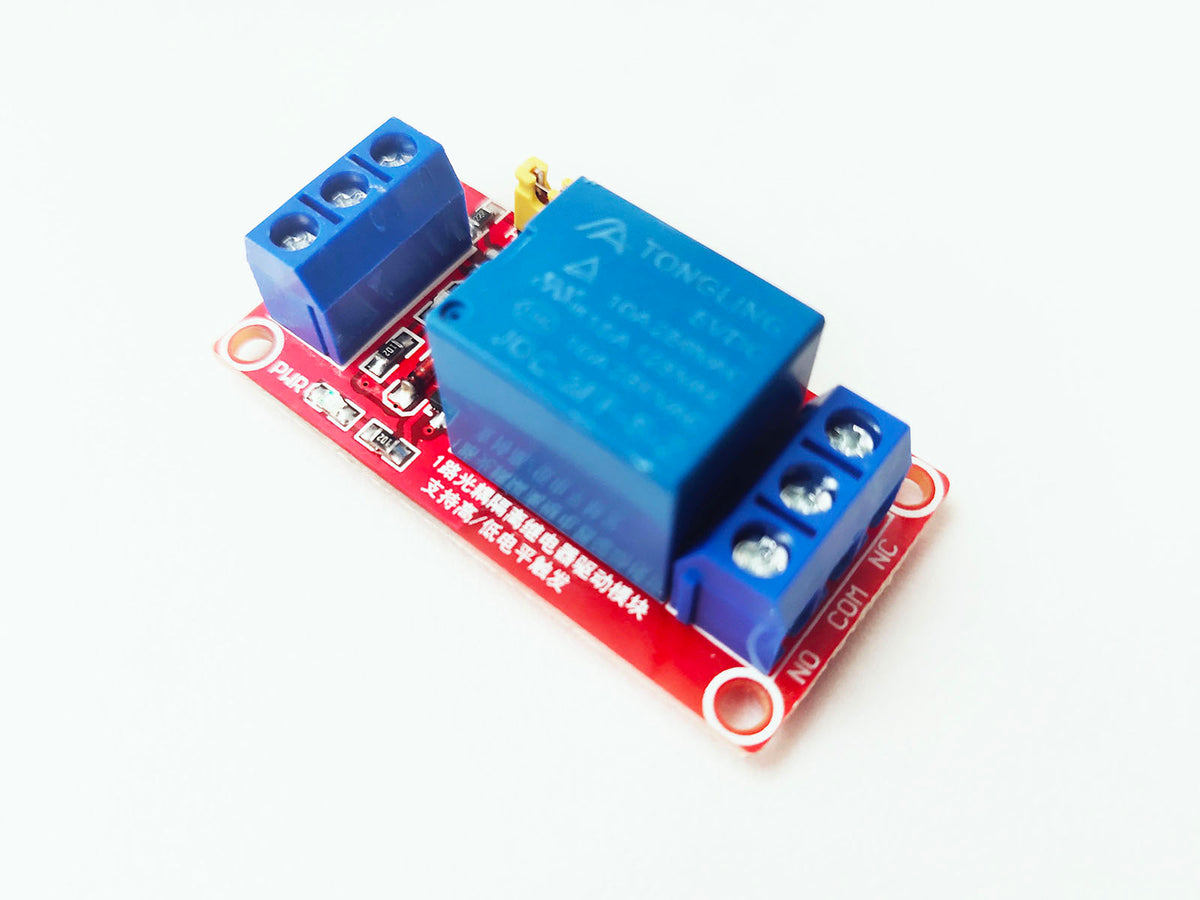

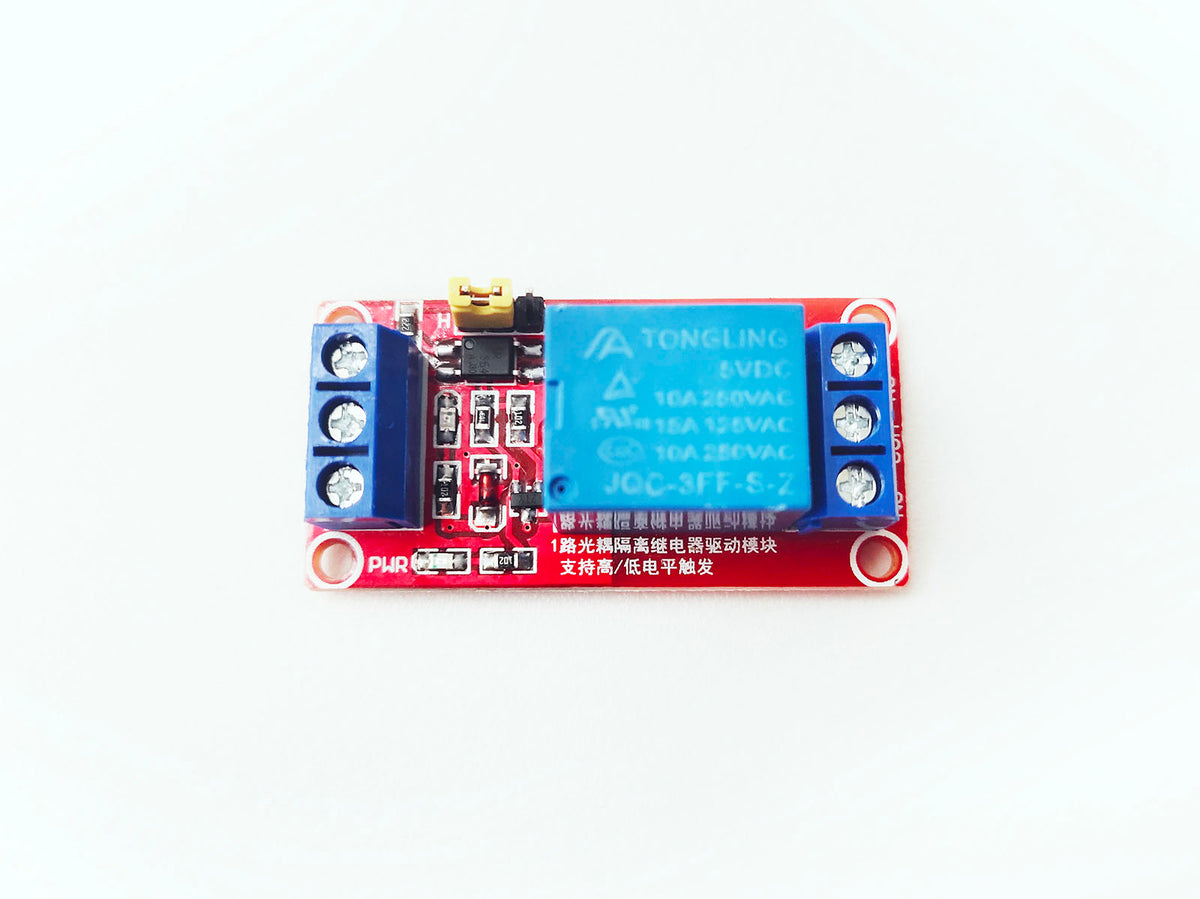

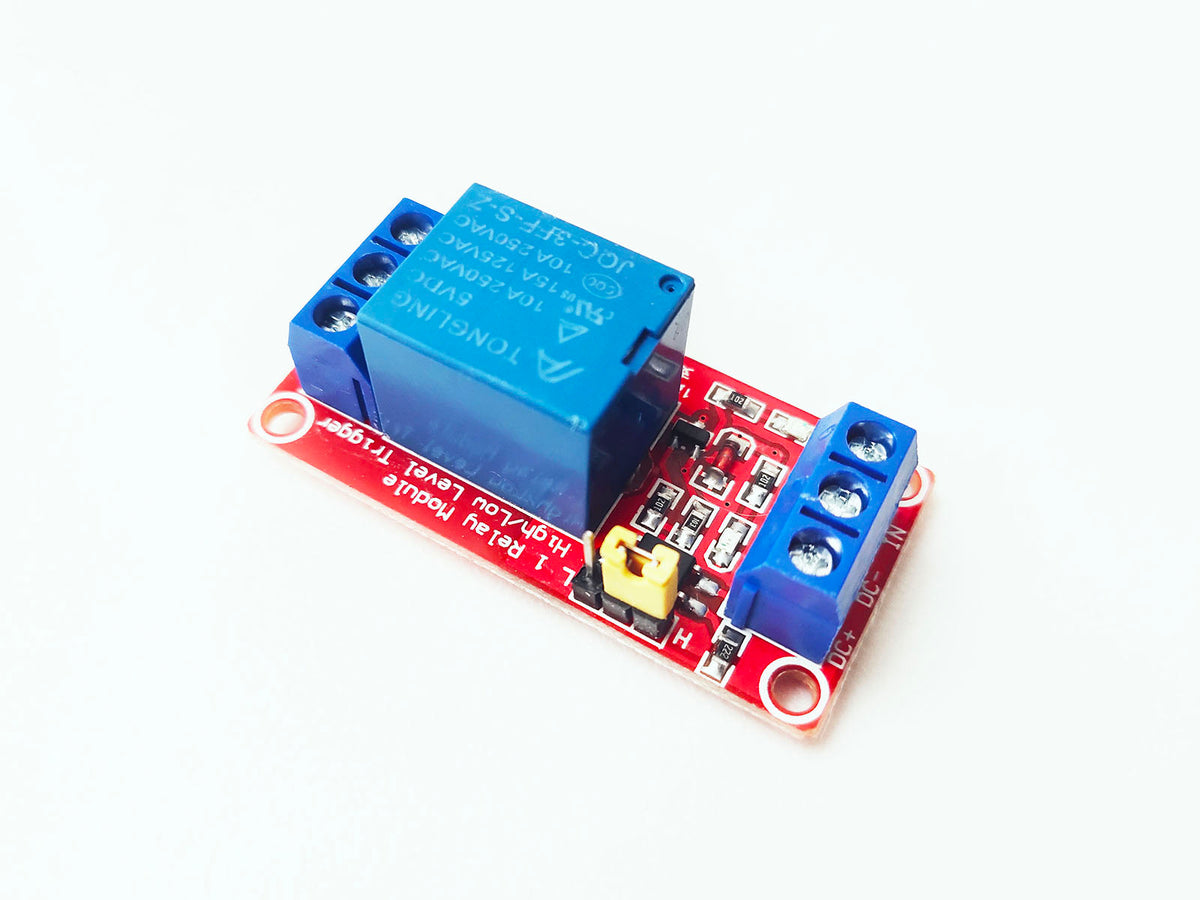

ONE-WAY 5V RELAY
Switch one load from a controller.
Use a single-channel 5 V relay module to switch a suitable load. Power and status indicators help you check the module during setup.
Before you order: Coil supply, control-input voltage and contact rating describe different parts of a relay module. Match all three to your circuit and load.
Features
- Power and working indicator
| AC | 250V/10A, DC: 30V/10A |
|---|---|
| Working voltage | 5V |
| Size | 44.5x20.5mm |
How to Use
| DC+ | Power Input, connect to 5V |
|---|---|
| DC- | Ground |
| IN | Relay control, 5V or GND |
| NO | Normal open |
| COM | Common |
| NC | Normal connected |
Input:
Output:
Frequently asked questions
Is the contact rating the required supply voltage?
No. The coil supply powers the relay, the control input triggers it, and the contact rating applies to the switched load.
