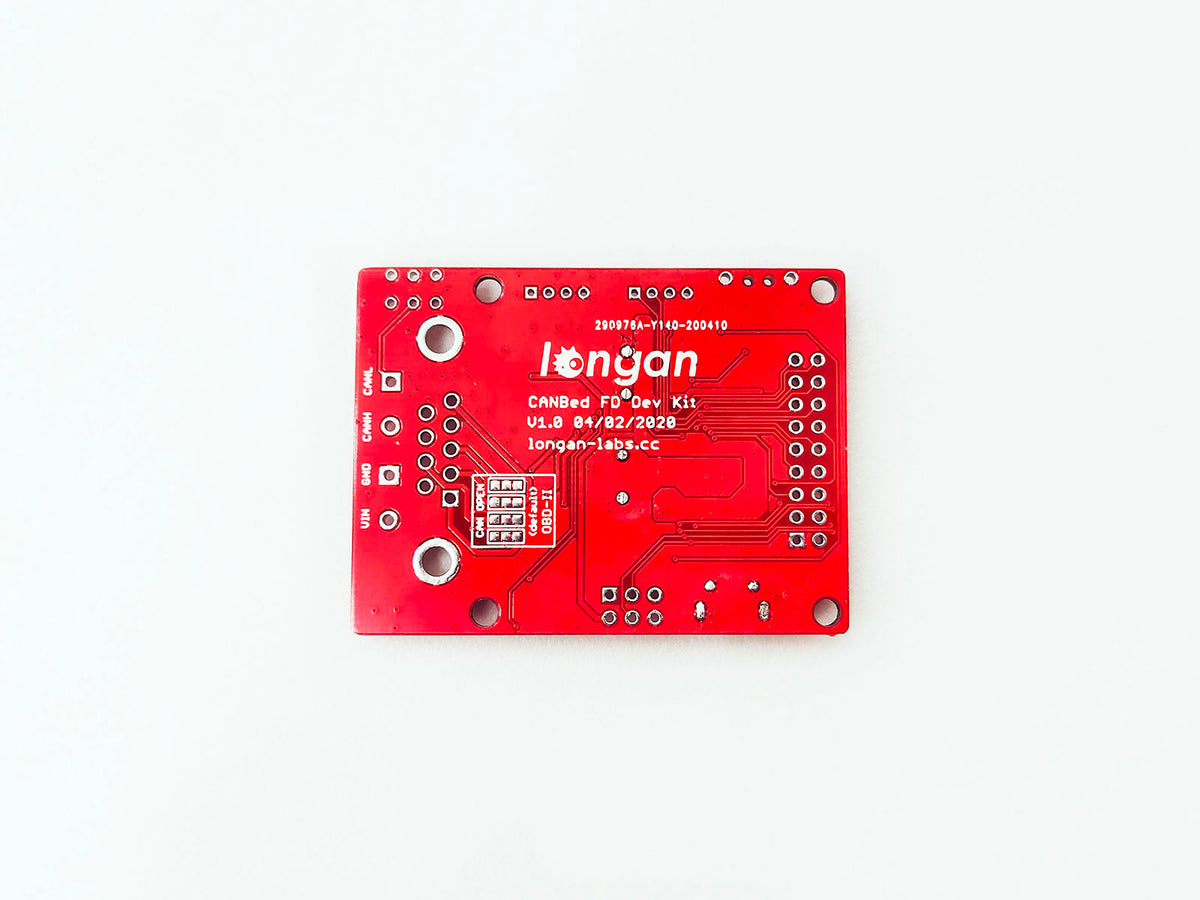

CANBED FD · STANDALONE ARDUINO CAN FD DEVELOPMENT KIT
Build a CAN FD node on one compact board.
CANBed FD combines an ATmega32U4 microcontroller, MCP2517FD CAN controller and CAN FD-capable transceiver. Upload your own Arduino sketch over Micro-USB and run a CAN-connected application without a separate Arduino host board.
CAN FD + Classical CAN · ATmega32U4 · Arduino Leonardo bootloader · DB9 or 4-pin terminal · 56 × 41mm
Quick Start Guide ↗ Arduino Library & Examples ↗ Hardware Files ↗
Before you order: The main PCB is assembled. Supplied plug-in connectors, headers and switch are not soldered by default. Allow for soldering, or contact us about the required assembly before ordering. A Micro-USB data cable and an OBD-II cable are not included.
Why choose CANBed FD?
- Run your own application on the board. The onboard ATmega32U4 comes with an Arduino Leonardo bootloader and has 32KB flash, 2.5KB SRAM and 1KB EEPROM.
- Combine MCU and CAN hardware. Skip the separate Arduino-to-CAN module wiring when building a compact prototype.
- Develop for CAN FD or Classical CAN. Use the matching examples, mode and bit timing for your project.

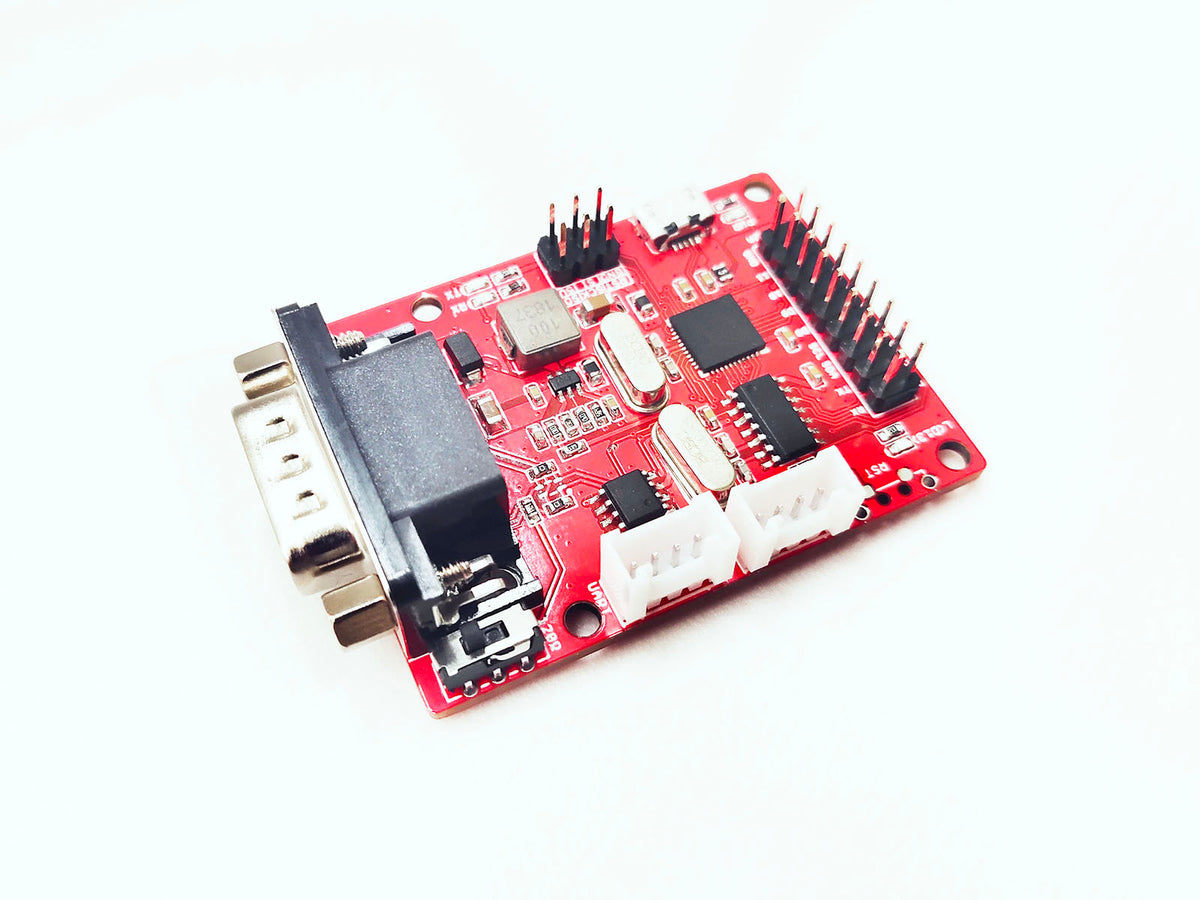

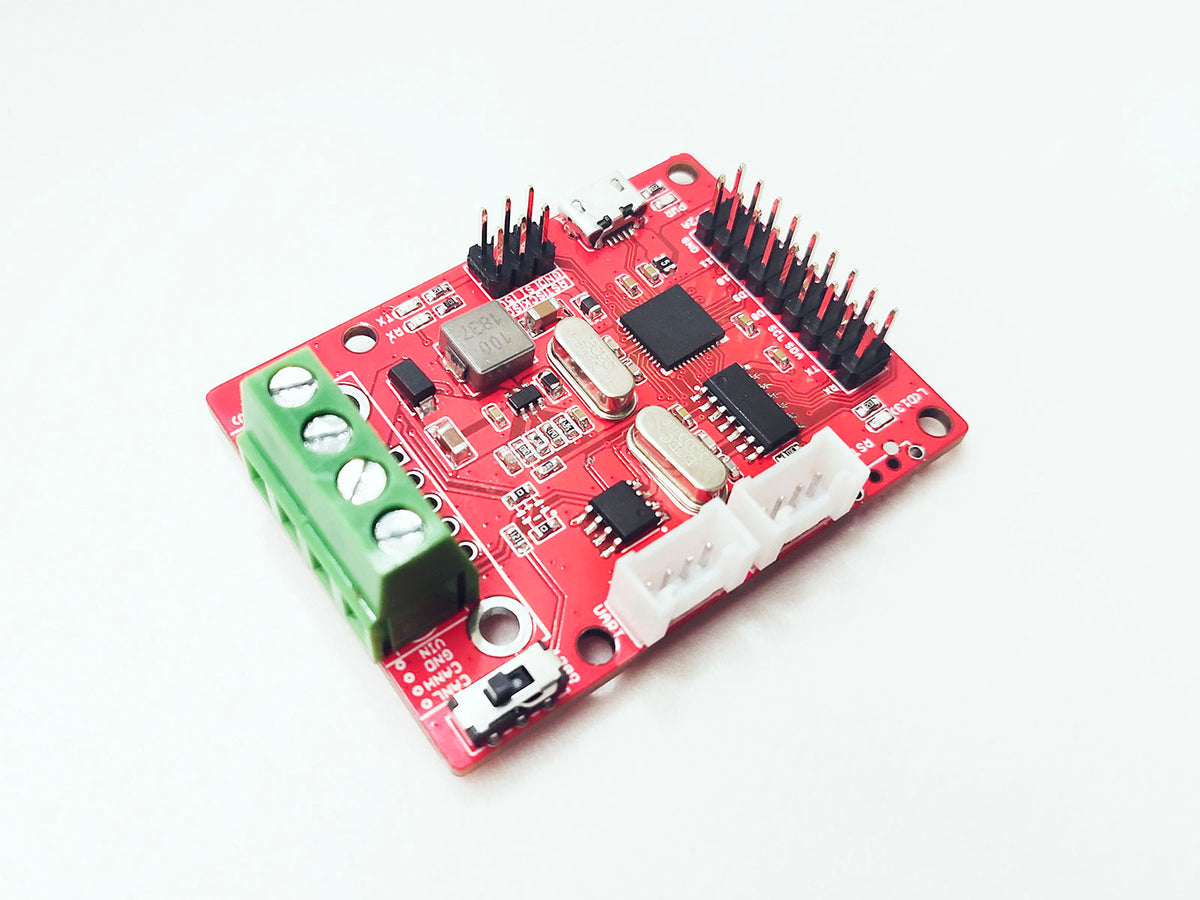

- Choose DB9 or terminal wiring. Fit the supplied connector that suits your setup and use the documented DB9 pinout configuration.
- Connect local peripherals. I2C, UART, SPI, analog inputs and digital I/O let you add sensors or controls. An ICSP interface is available for AVR development.
What can you build?
- CAN FD nodes: connect local inputs and outputs to a compatible CAN network.
- Protocol experiments: learn and test Classical CAN or FD message exchange.
- Compact controller prototypes: combine application logic and CAN hardware in one board.
- Custom CAN-based OBD-II applications: develop the protocol software and use a compatible cable.
Start with a CAN communication example.
- Assemble the required connectors. Choose the DB9 or terminal connection and solder the plug-in parts you need.
- Connect Micro-USB. Follow the Arduino Leonardo setup and install the CAN FD library.
- Configure the example for CANBed FD. Use the board-specific CS and INT settings rather than the shield defaults.
- Connect and test the bus. Check CAN wiring, ground reference, termination and bit timing against another compatible node before adding your application.
Prepare for your first test: A Micro-USB data cable, soldering tools, CAN wiring and another compatible CAN node or test interface. A separate Arduino board is not required. An OBD-II cable is needed for an OBD-II connection.
Hardware at a glance
| Microcontroller | ATmega32U4 with Arduino Leonardo bootloader |
|---|---|
| MCU clock | 16 MHz |
| Memory | 32KB flash · 2.5KB SRAM · 1KB EEPROM |
| CAN controller | MCP2517FD |
| Transceiver | CAN FD-capable transceiver |
| CAN modes | CAN FD and Classical CAN |
| CAN connection | DB9 or 4-pin terminal; supplied as loose parts |
| USB | Micro-USB for programming and board power |
| External DC input | 9–28V via the designated power input pins |
| Expansion | I2C, UART, SPI, 3 analog inputs and 8 digital I/O; see pinout for shared functions |
| Programming interface | USB; ICSP also provided |
| Dimensions | 56 × 41mm |
View the pinout diagram
Check power pins, connector configuration and shared I/O before wiring your project.

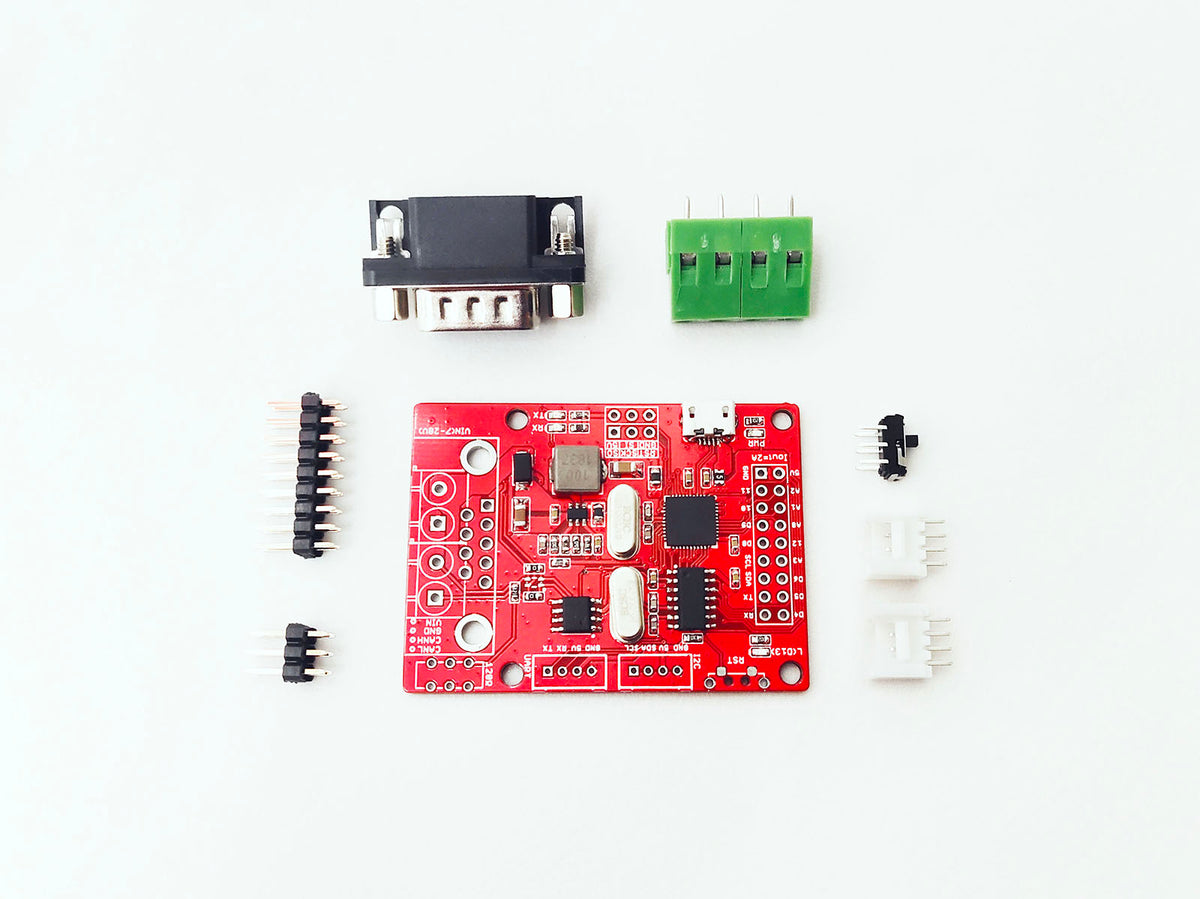

What's included
- 1 × assembled CANBed FD PCB
- 1 × DB9 connector
- 1 × 4-pin terminal block
- 2 × HY2.0 4-pin connectors
- 1 × 2 × 9-pin, 2.54mm header
- 1 × 2 × 3-pin, 2.54mm header
- 1 × 6-pin switch
Plug-in parts are supplied loose. Email order@longan-labs.cc with your quantity and required connector assembly before ordering if you need soldering arranged.
Frequently asked questions
Do I need another Arduino board?
No. The onboard ATmega32U4 runs your application. Use a computer and Micro-USB cable to upload your firmware.
How is CANBed FD different from CANBed?
Both are standalone ATmega32U4 development boards. This version uses the MCP2517FD and supports CAN FD as well as Classical CAN; the MCP2515-based CANBed supports Classical CAN.
Is this a ready-to-use USB-CAN adapter?
It is a development kit. PC-tool compatibility requires suitable firmware and host software; it is not established simply by plugging in USB.
Does the OBD-II or CANopen pinout provide those protocols?
The DB9 configuration defines the connector wiring. Diagnostic requests, PID decoding and CANopen behavior require appropriate application firmware or a protocol stack. An OBD-II cable alone does not add diagnostic software.
Where can I get setup help?
Use the documentation and example code below. For technical help, email support@longan-labs.cc with your order details, board version, wiring photo and a description of the issue. Our engineers usually reply within 24 hours on working days.
Documentation & downloads
- Product documentation, setup & troubleshooting
- Arduino library & examples
- Schematics & hardware files (ZIP)
From prototype to a larger order
Need multiple units, a specific assembly configuration or a modified design? Longan Labs provides product customization services, including circuit design, firmware development and PCB assembly.
Send your quantity, host platform, connector requirements, project needs and target delivery date so we can review your request and provide a quotation.
Shipping & support
- Ships from China. We deliver to most countries worldwide. Shipping charges are shown at checkout.
- Tracked delivery. Our default carrier is 4PX, with typical delivery of 7–10 days to North America and Europe. Actual times vary by destination and customs clearance.
- Need express shipping? Email order@longan-labs.cc to ask about DHL or FedEx and the additional cost.
- Technical help. Contact support@longan-labs.cc for setup and troubleshooting. Our engineers usually reply within 24 hours on working days.
- If a product arrives defective: contact us for troubleshooting. Once a product defect is confirmed, you can choose a refund or replacement without returning the original.
- Bank transfer orders. Send your product list and quantities to order@longan-labs.cc for a quotation and payment instructions.
Designed by Longan Labs in Shenzhen. We develop open source CAN hardware and support makers, engineers and teams with documentation, technical assistance and custom product development.
