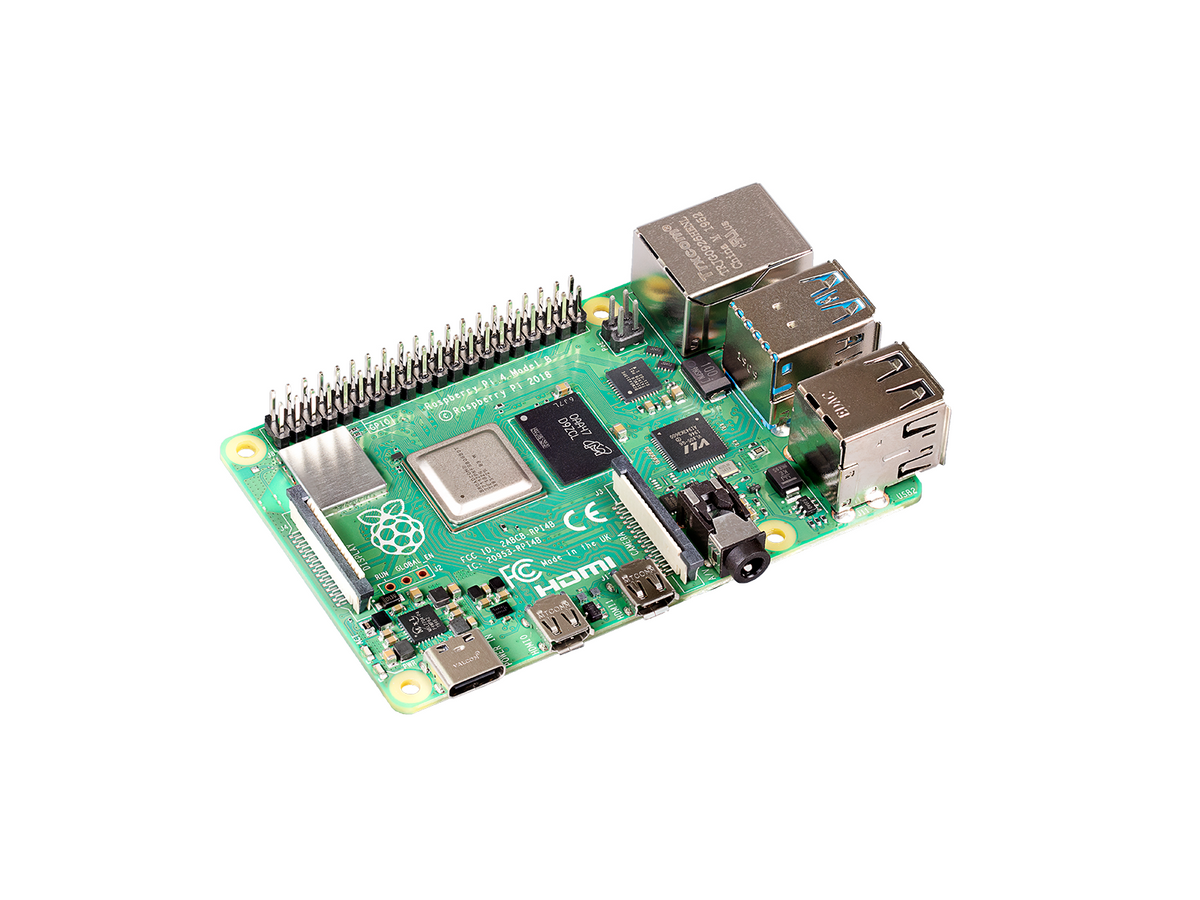

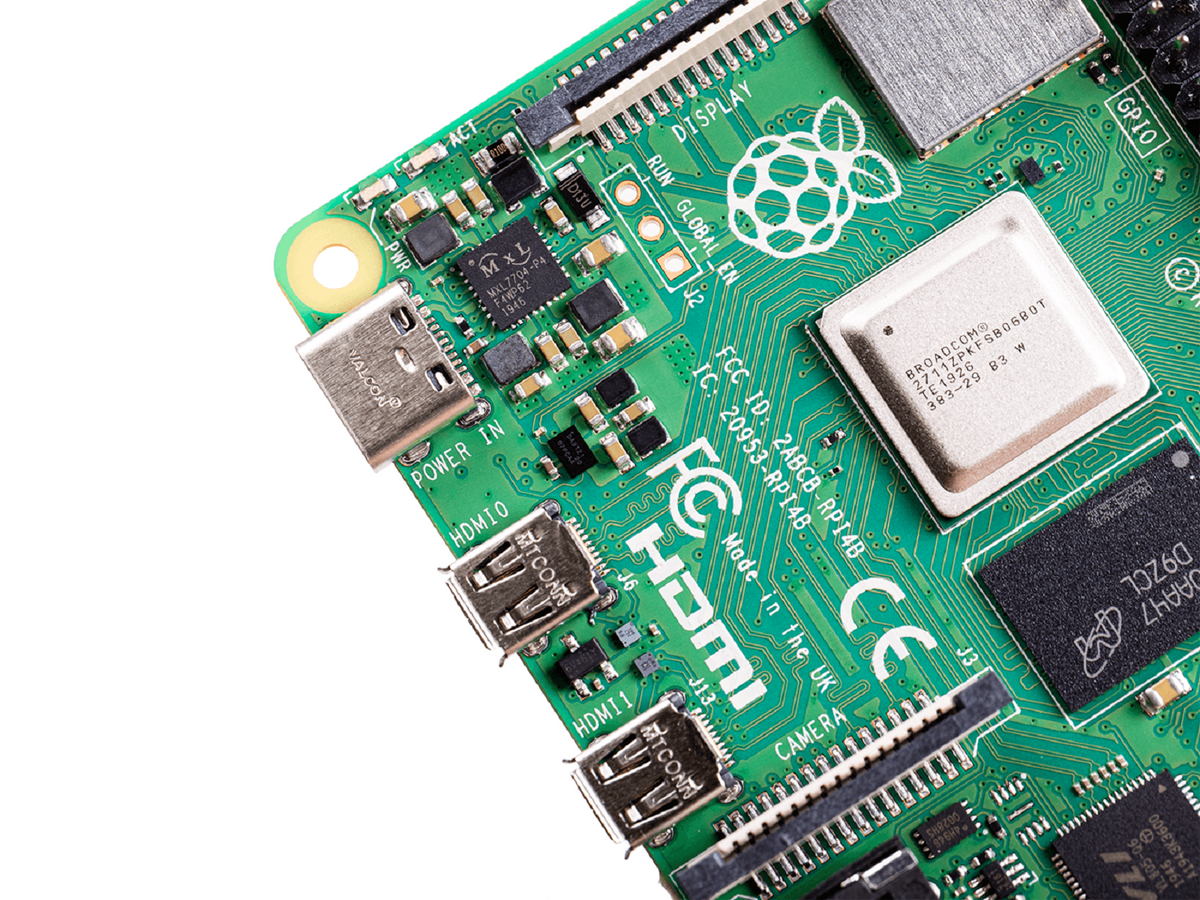

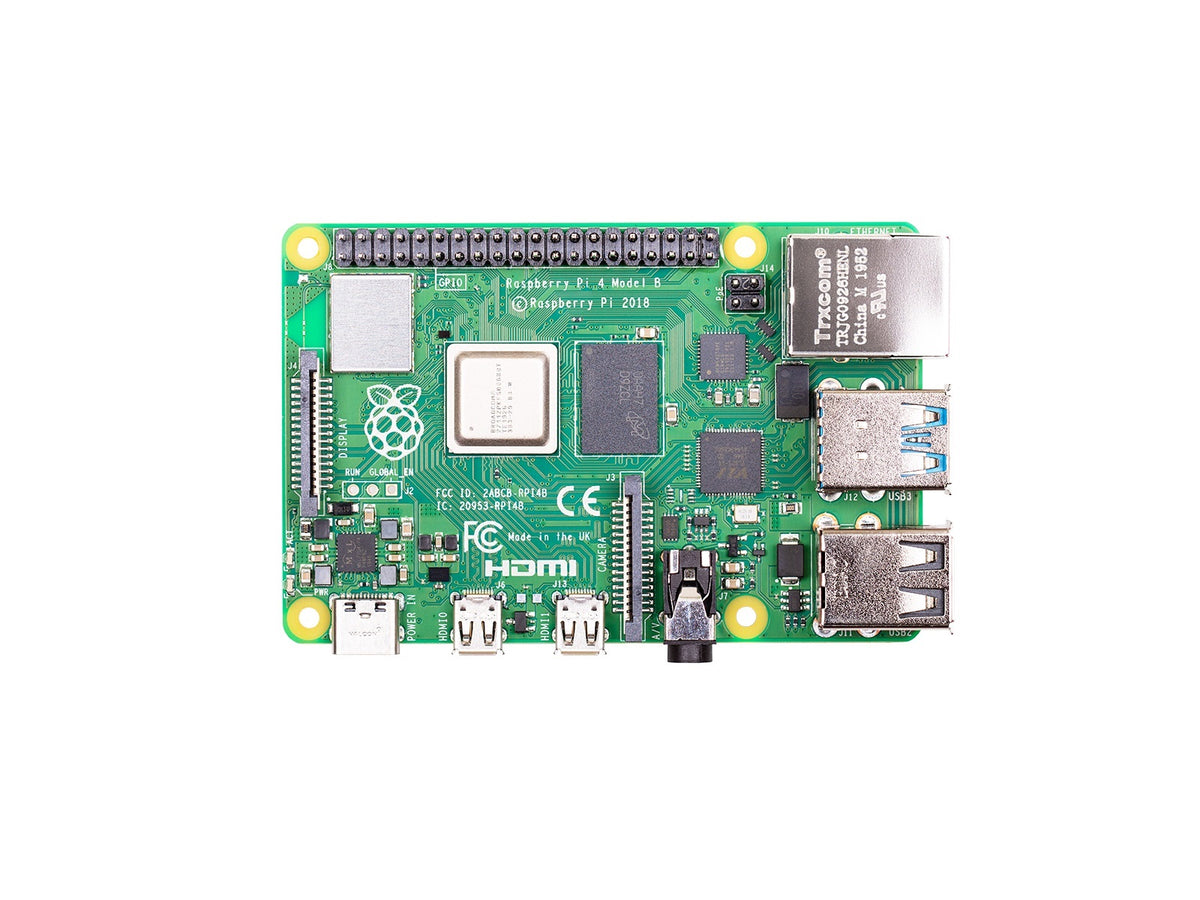

RASPBERRY PI 4 COMPUTER MODEL B - 4GB

Build a Raspberry Pi 4 project with 4GB RAM.

Use a Raspberry Pi 4 Model B with 4GB RAM for a small computer, controller or network-connected project. The board combines USB, Gigabit Ethernet, wireless connectivity and a 40-pin GPIO header.

Before you order: Prepare a suitable power supply, operating-system storage and cables for your setup. PoE requires a separate compatible PoE HAT.

Specifications

• 1.5GHz 64-bit quad-core ARM Cortex-A72 CPU (Broadcom 2711)
• 4GB RAM (LPDDR4 SDRAM)
• On-board wireless LAN - dual-band 802.11 b/g/n/ac
• On-board Bluetooth 5.0 HS low-energy (BLE)
• 2 x USB 2.0 ports
• 2 x USB 3.0 ports
• True Gigabit Ethernet
• Extended 40-pin GPIO header
• 2x micro HDMI, 4k video
• 4 Pole stereo output and composite video port
• MIPI Camera port (CSI)
• MIPI Display port (DSI)
• microSD format for loading OS & data storage
• 5V/3A DC via USB type C connector
• 5V DC via GPIO
• PoE requires a separate compatible PoE HAT.
• Multimedia H.265 decode (4kp60), H.264 decode (1080p60), H.264 encode (1080p30), OpenGL ES 1.1, 2.0, 3.0 graphics

Additional technical details

• Dual-band 2.4 GHz and 5 GHz wireless LAN.

Getting started

1. Prepare operating-system storage and a suitable 5 V supply.
2. Connect the required display, peripherals and network.
3. Boot the board, configure the system and begin your project.
