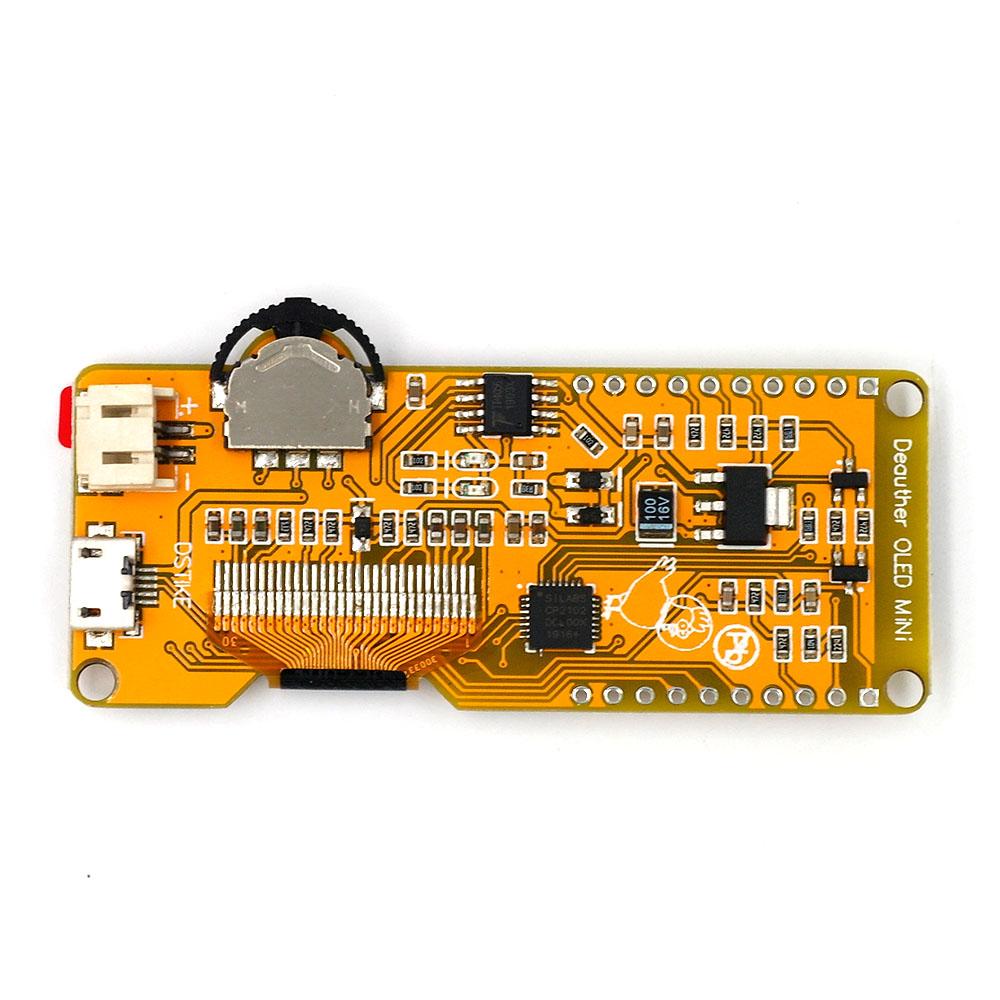

DSTIKE WIFI DEAUTHER MINI
Explore an ESP8266 development platform.
Use a compact ESP8266 board with the supplied firmware for development and authorized wireless testing. Review the controls, power arrangement and included accessories below.
Before you order: Use the supplied software only for educational development and authorized testing on equipment you own or have permission to test.
Features
- Only ~80mA power usage
- TP4056+PL5353A battery protection solution
- Included 2dB antenna
- All GPIO breakouts and 3.3 and 5V output

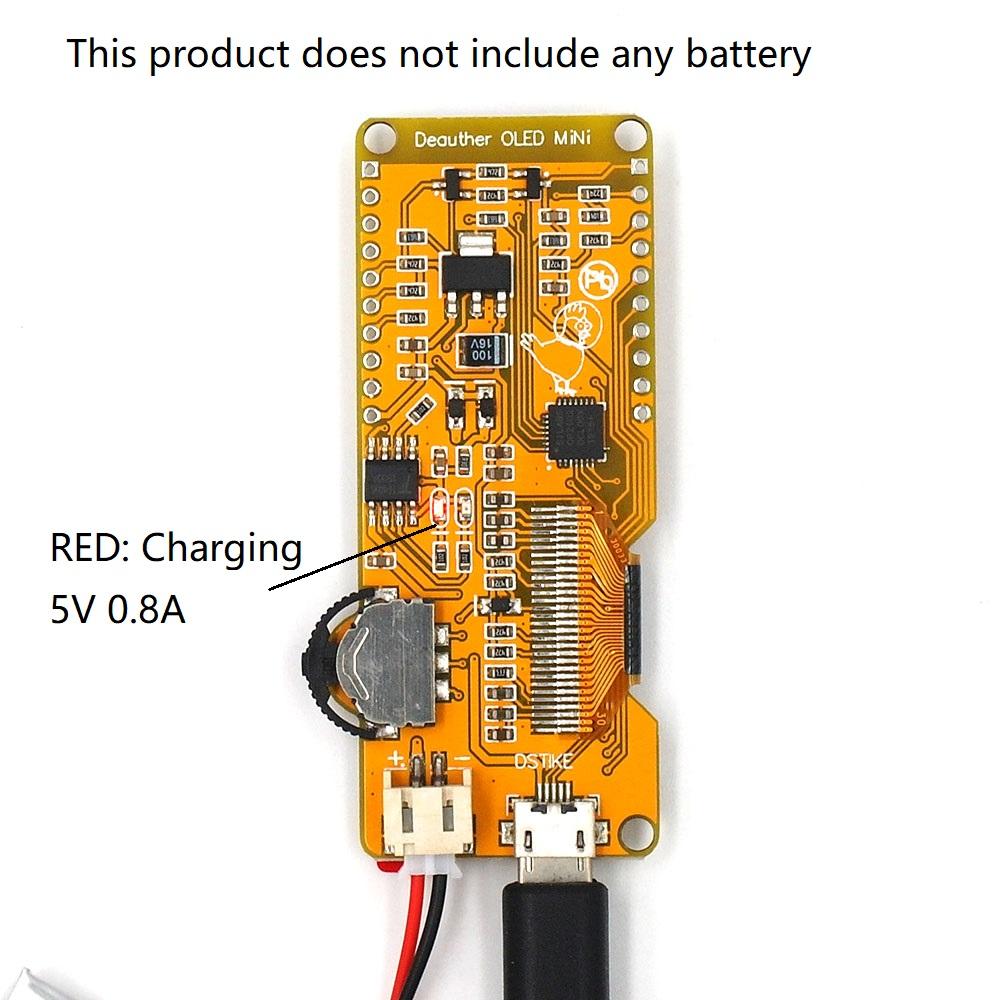

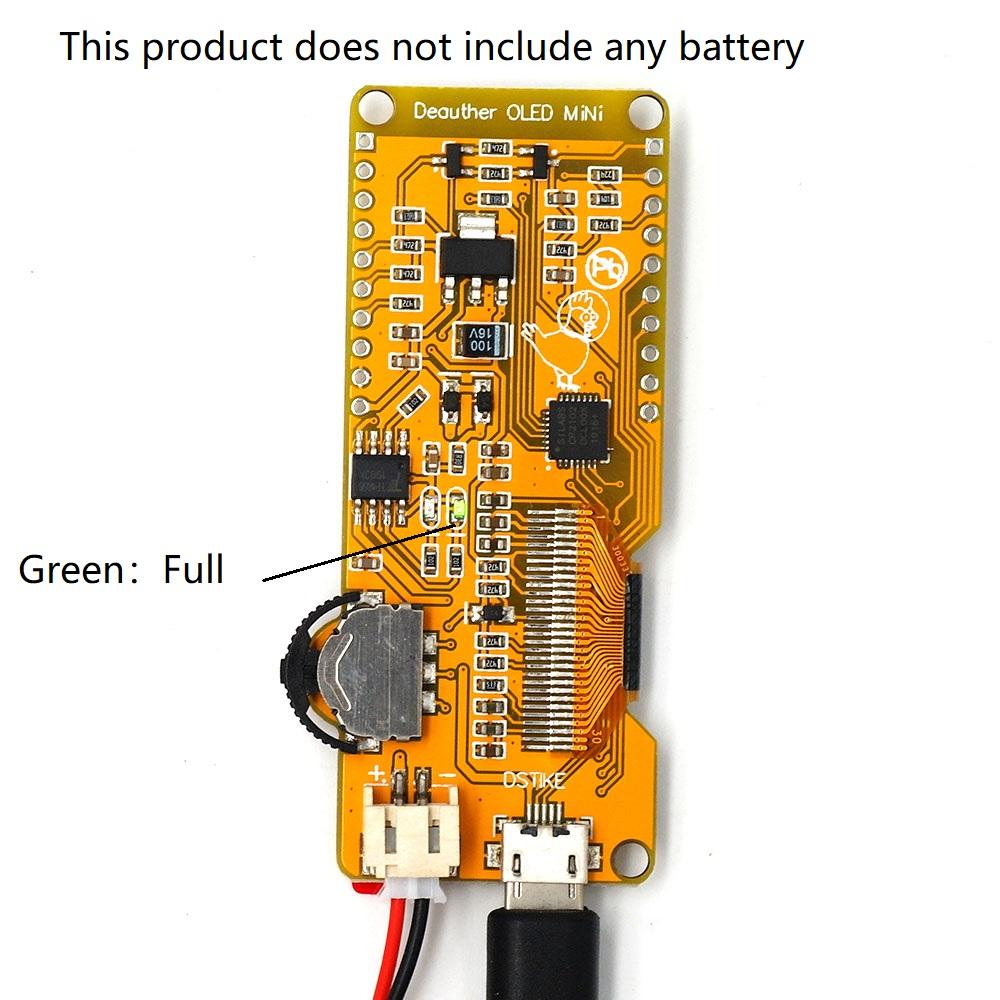

| 2 LEDs to indicate battery charging status (Red | Charging,Green:Full) |
|---|---|
| Protection | short, over charging, over discharging, temperature |

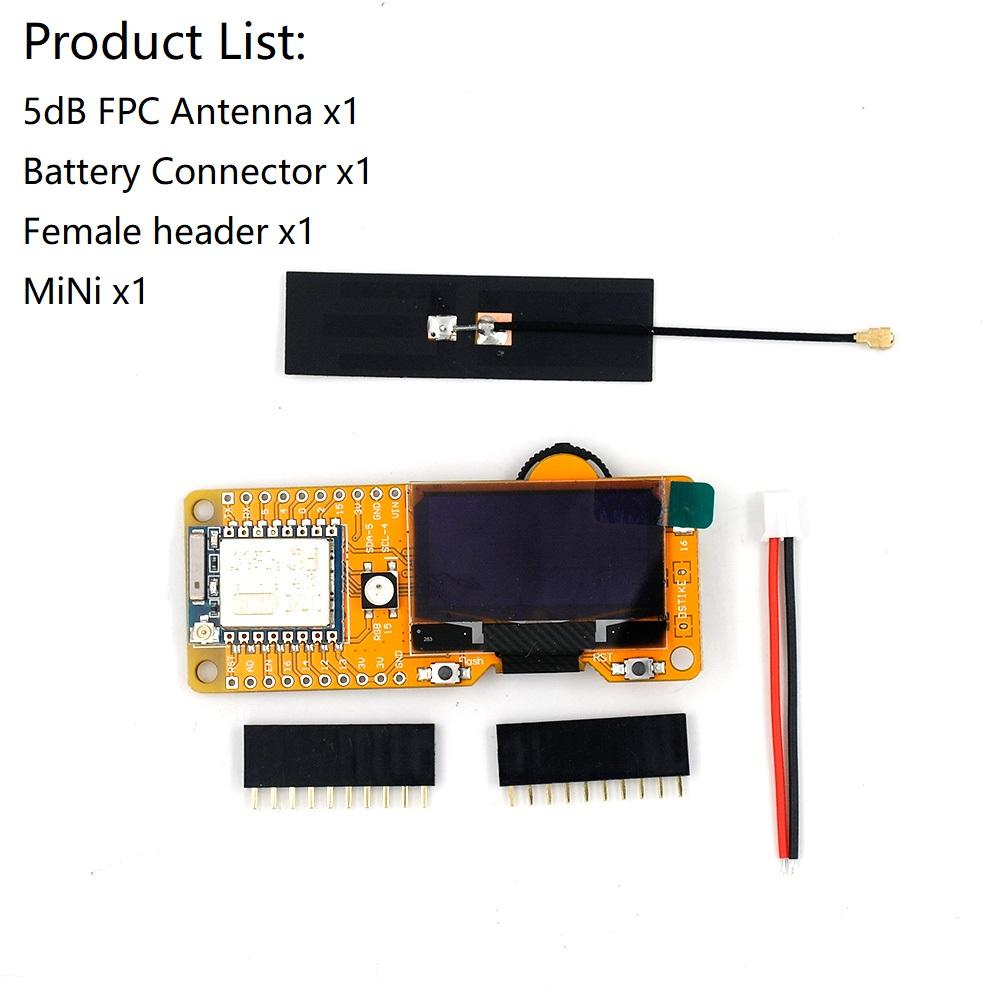

What's included
- Deauther MiNi x1
- 2db antenna x1
- Female header x2
- Battery connector x1

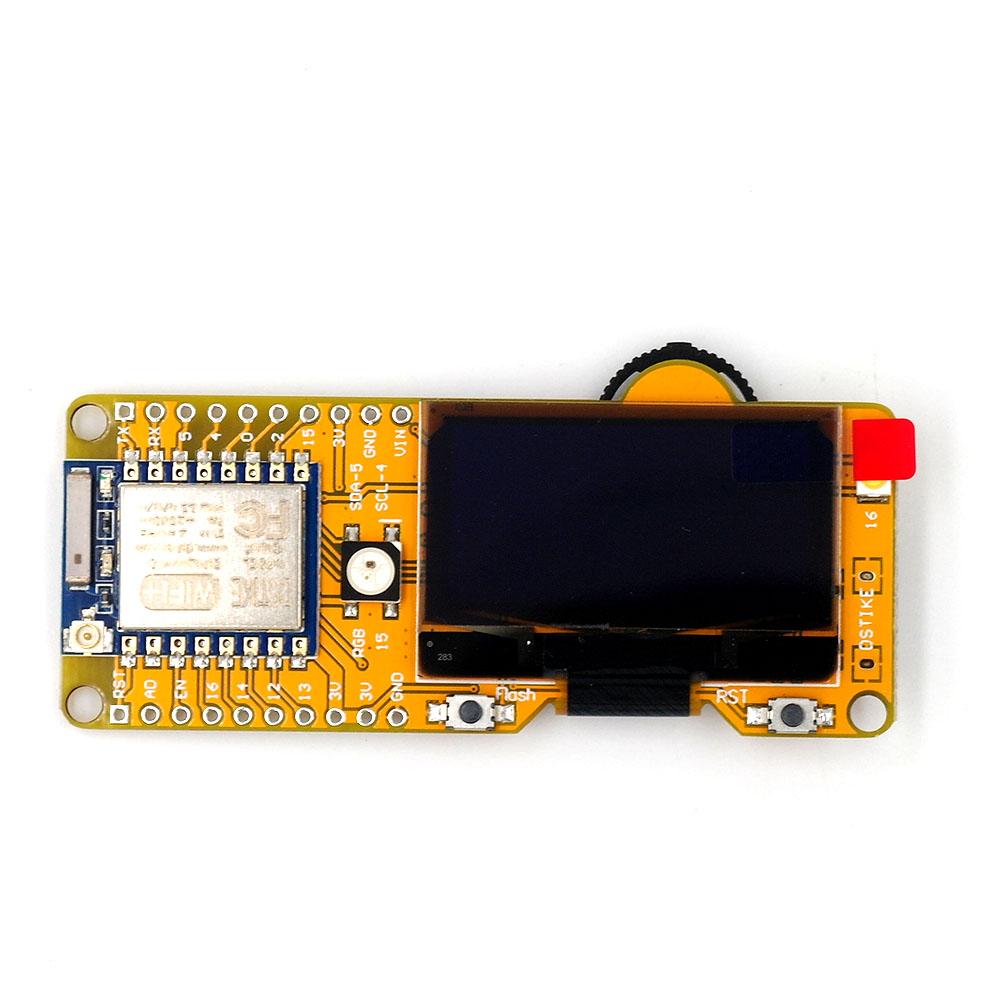

GPIO & hardware connections
- All ESP07 pins break out
| Display | SH1106 1.3" OLED |
|---|---|
| Display SDA | GPIO 5 (D1) |
| Display SCL/SCK | GPIO 4 (D2) |
| WS2812b LED | GPIO 15 (D8) |
| Button Up | GPIO 12 |
| Button Down | GPIO 13 |
| Button Select | GPIO 14 |
| High Light LED | GPIO16 |
Use conditions
- Only for testing and educational purposes against your own devices.
- Please check the legal regulations for your country to make sure you don't violate any laws.
The ESP8266 radio supports 2.4 GHz Wi-Fi.
Documentation & downloads
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
