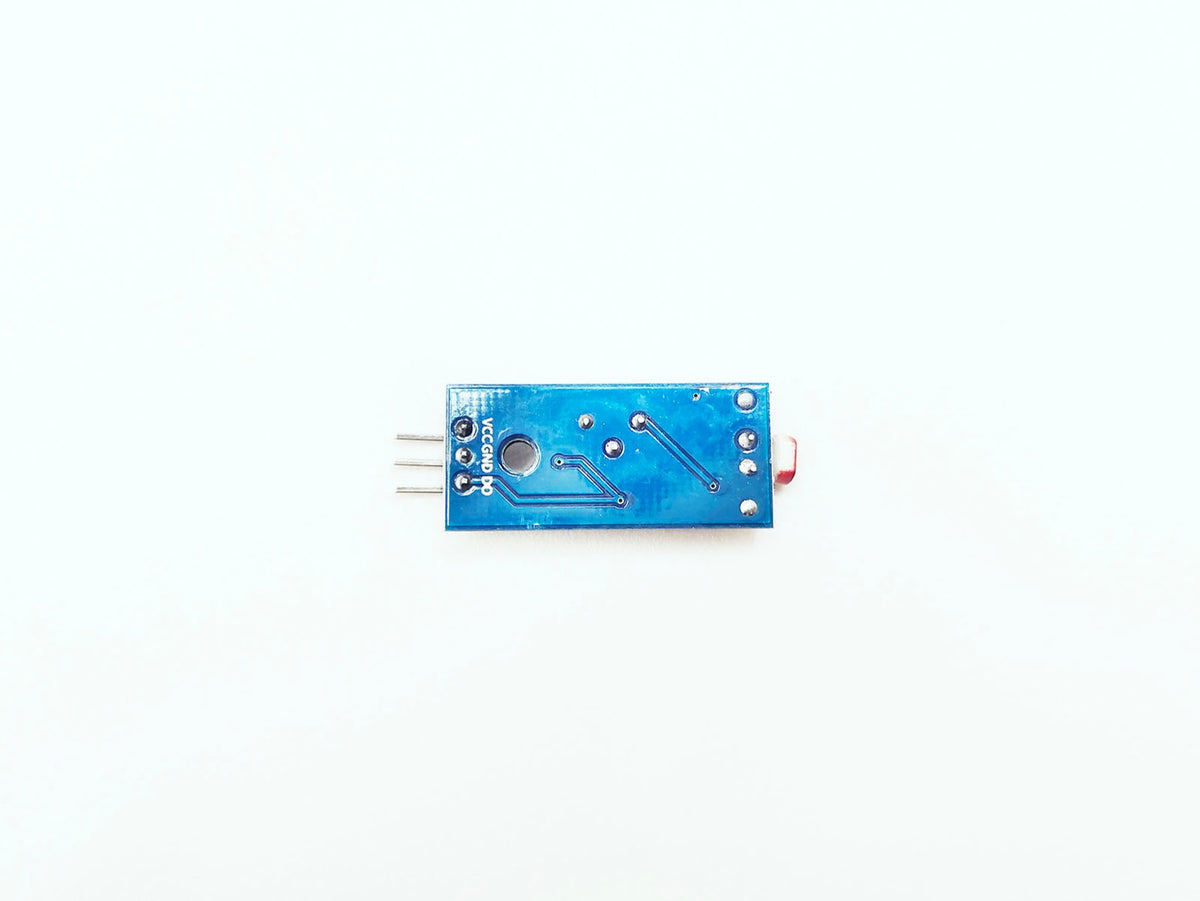

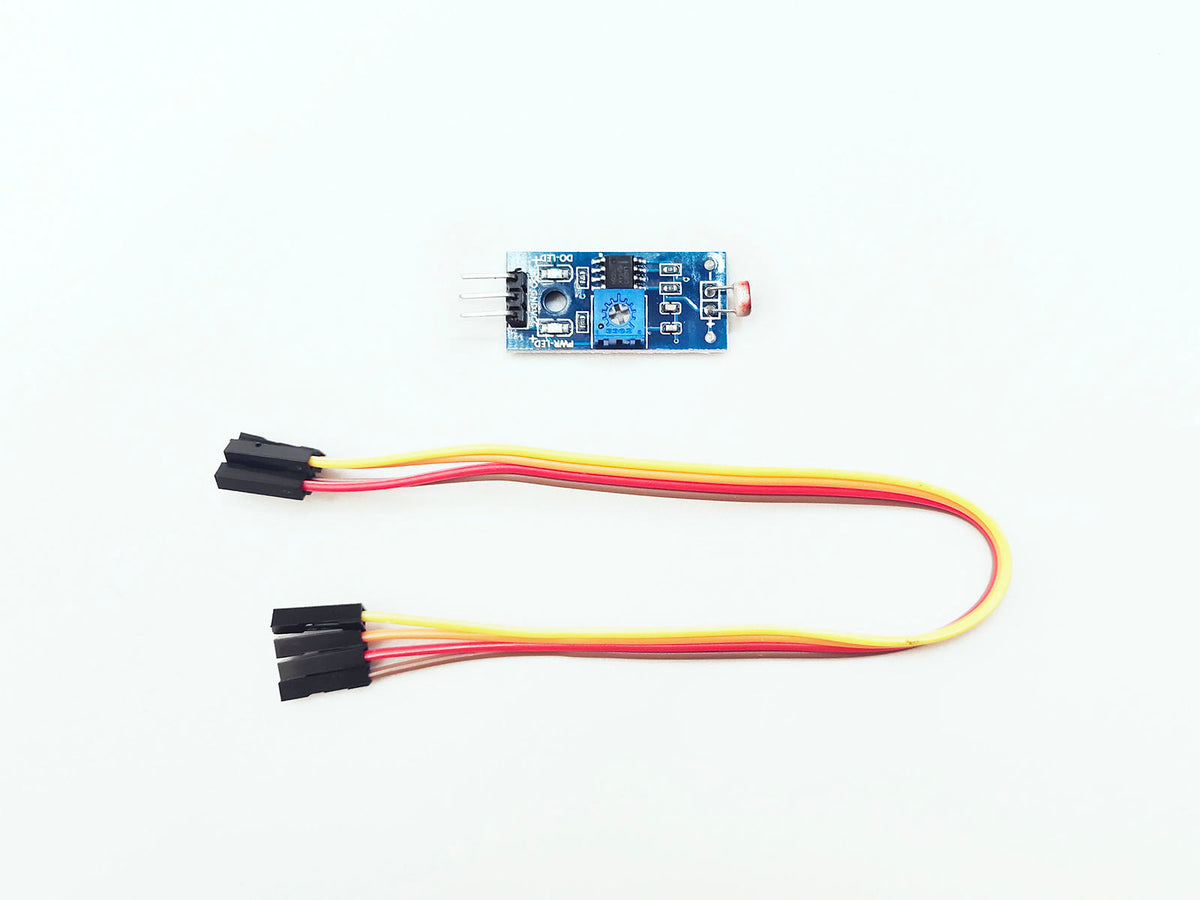

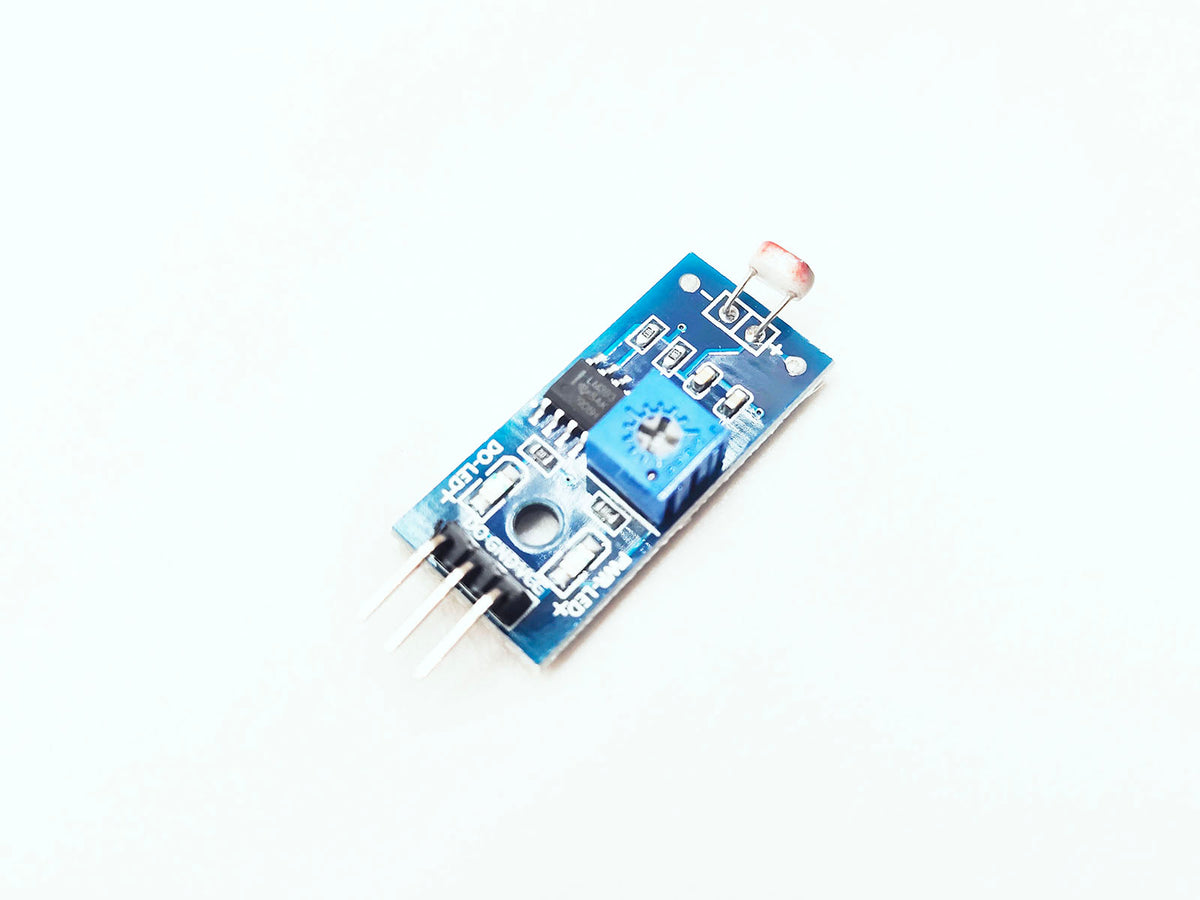

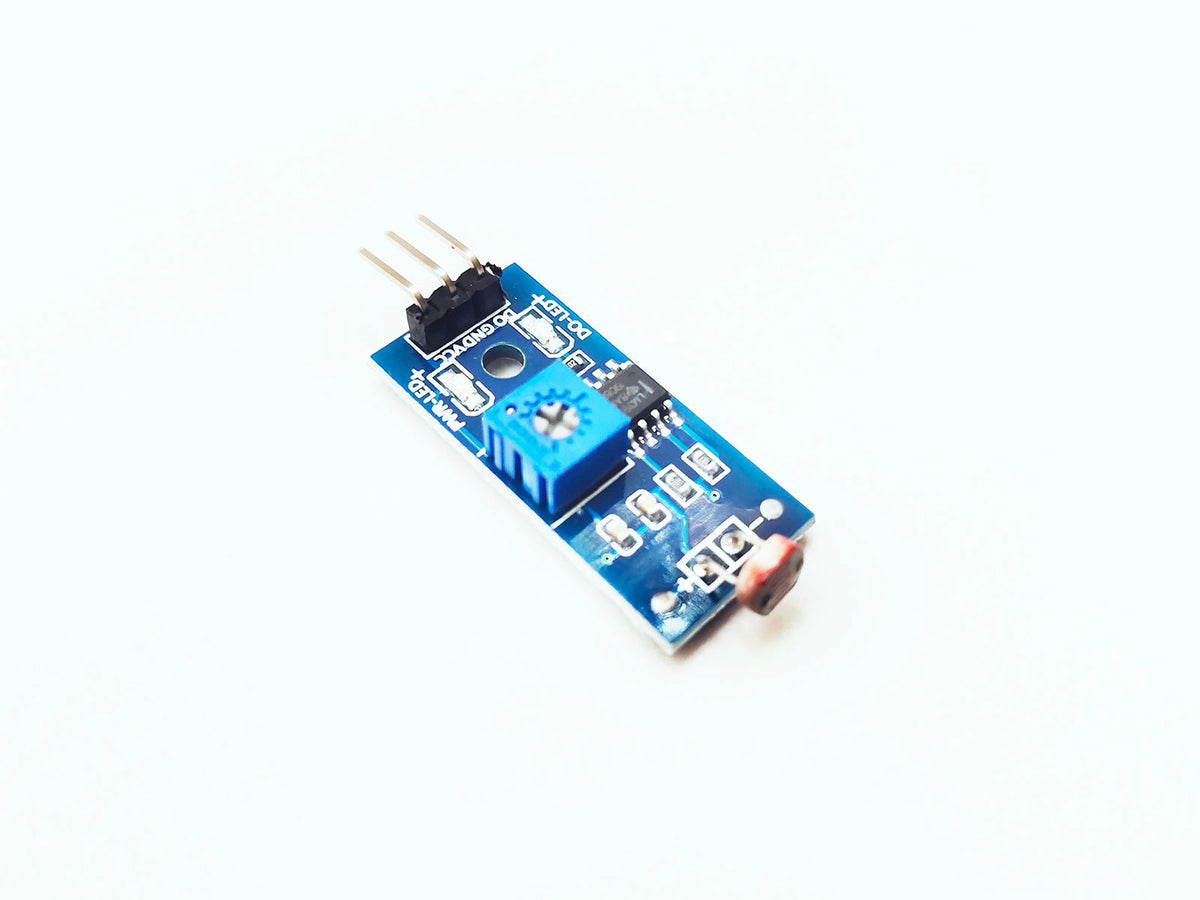

LIGHT SENSOR
Detect changing light levels.
Use a light-sensor module with analog output and an adjustable digital threshold. The LM393 comparator supports simple bright/dark switching in controller projects.
Before you order: Match power, signal levels and the connector pinout to your host before connecting the module.
Features
- LM393 comparators
- Potentiometer to adjust the comparison level
| Input voltage | 3.3~5V |
|---|---|
| Output | 0/1 or analog |
| Size | 32mmx41mm |
Pinout & connections
| Pin | Name | Description |
|---|---|---|
| 1 | VCC | Power input, 3.3/5V |
| 2 | GND | Ground |
| 3 | DO | Digital output, HIGH/LOW |
| 4 | AO | Analog Output |
Getting started
- Confirm the power, ground and signal pinout.
- Connect to a suitable input or bus on your controller.
- Read a basic sample and check its response in the intended environment.
Frequently asked questions
Can I use the reading directly in my application?
Check the response with your host and the conditions where it will be used. Analog signals and threshold outputs require different processing from digital measurements.
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
