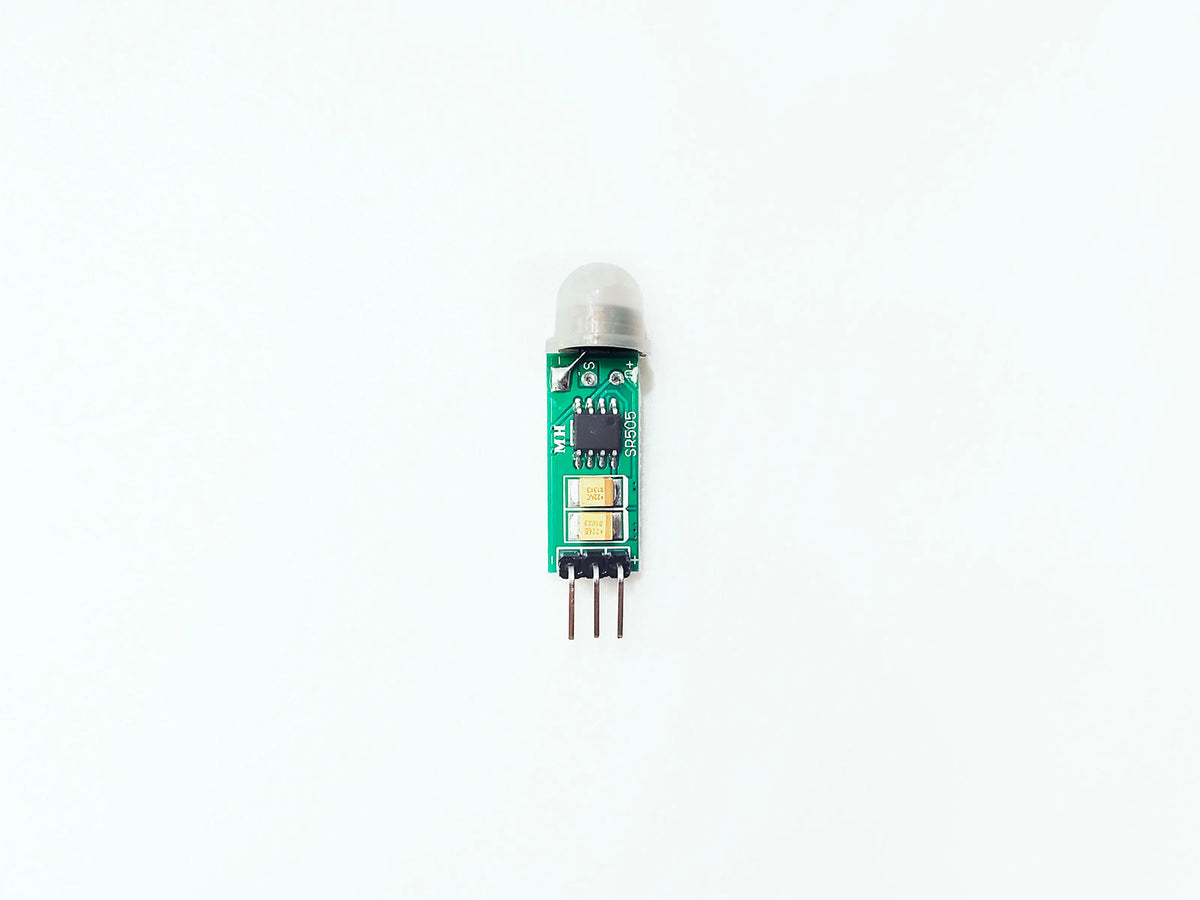

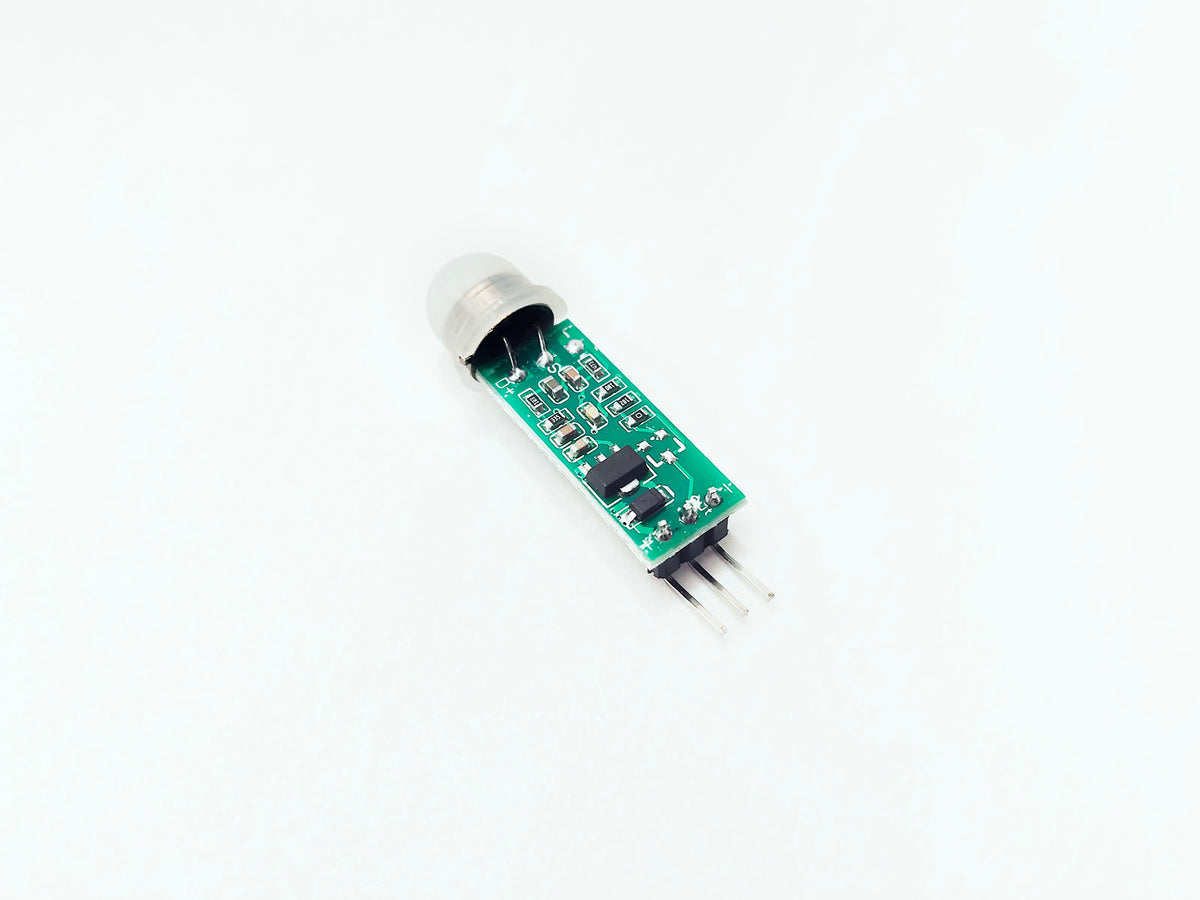

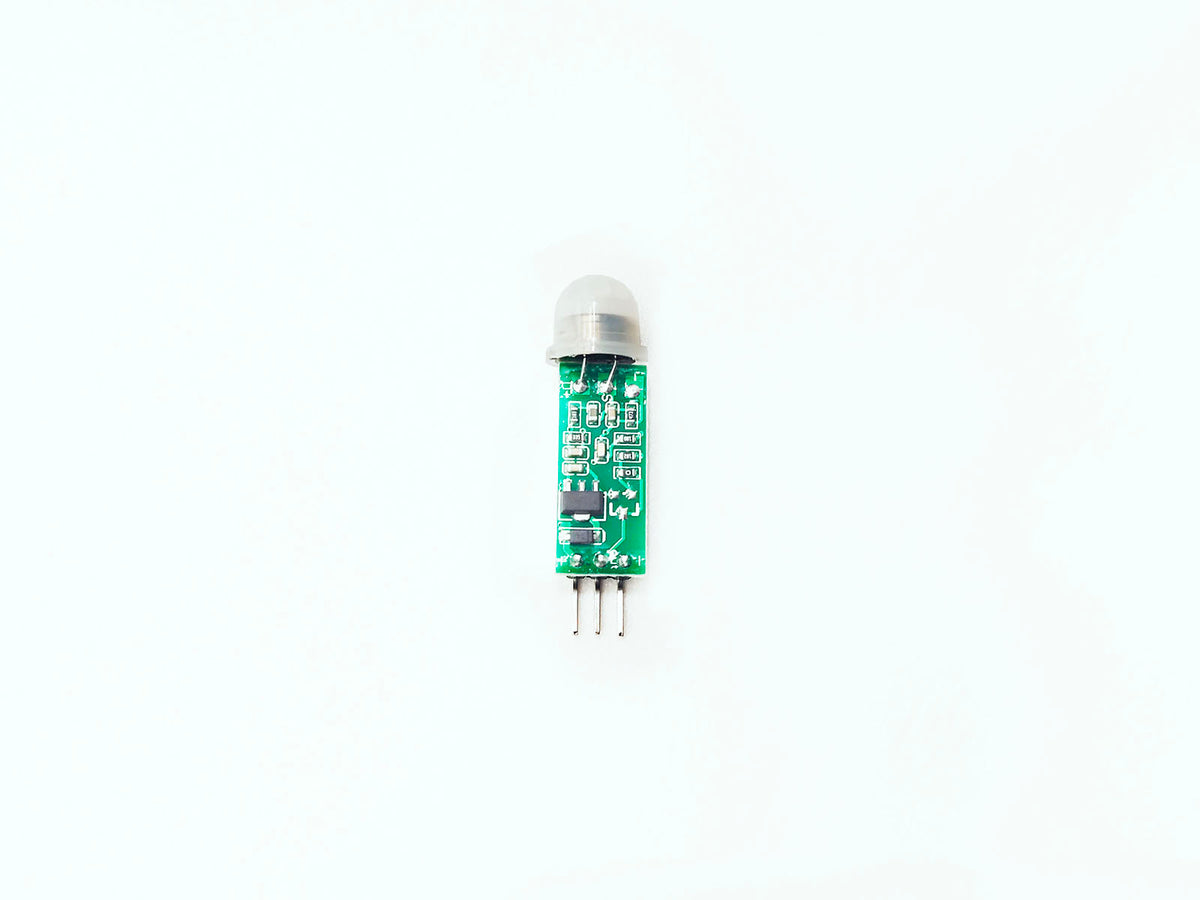

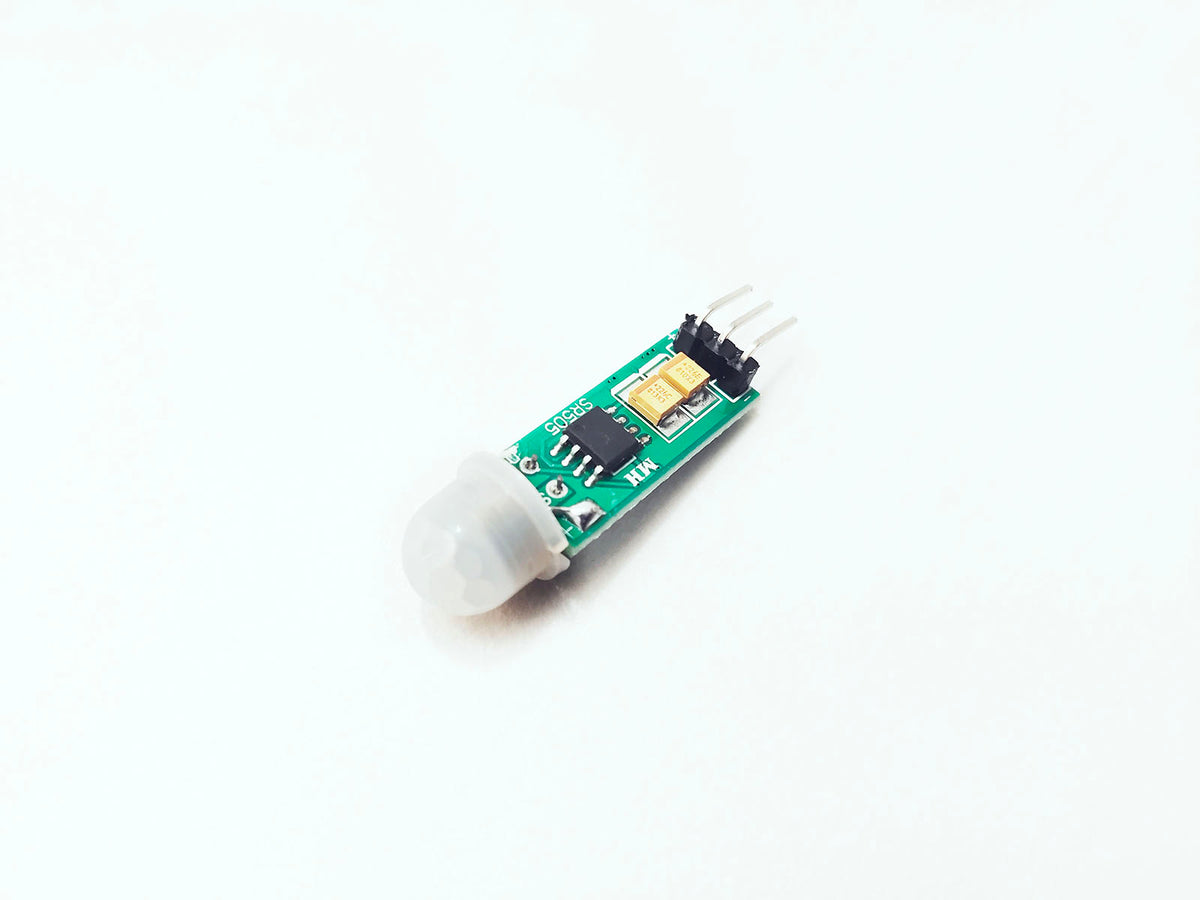

HC-SR505 MINI PIR MOTION SENSOR
Add a compact PIR motion input.
Use an HC-SR505 module to detect movement through passive infrared sensing. Its digital output provides a simple input for lighting and interactive controller projects.
Before you order: Match power, signal levels and the connector pinout to your host before connecting the module.
Features
| Input voltage | 4.5~20V |
|---|---|
| Static current | <50uA |
| Output | HIGH@3.3V, LOW@0V |
| Delay time | 8s |
| Induction angle | 100° |
| Induction distance | 3m |
| Working temperature | -20~80℃ |
Pinout & connections
| PIN | Name | Description |
|---|---|---|
| 1 | + | VCC, 4.5~20V |
| 2 | OUT | Signal |
| 3 | - | GND |
Application ideas
- Human body induction lamp
- Security product
- Industrial automation control
- Smart toys
Getting started
- Confirm the power, ground and signal pinout.
- Connect to a suitable input or bus on your controller.
- Read a basic sample and check its response in the intended environment.
Frequently asked questions
Can I use the reading directly in my application?
Check the response with your host and the conditions where it will be used. Analog signals and threshold outputs require different processing from digital measurements.
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
