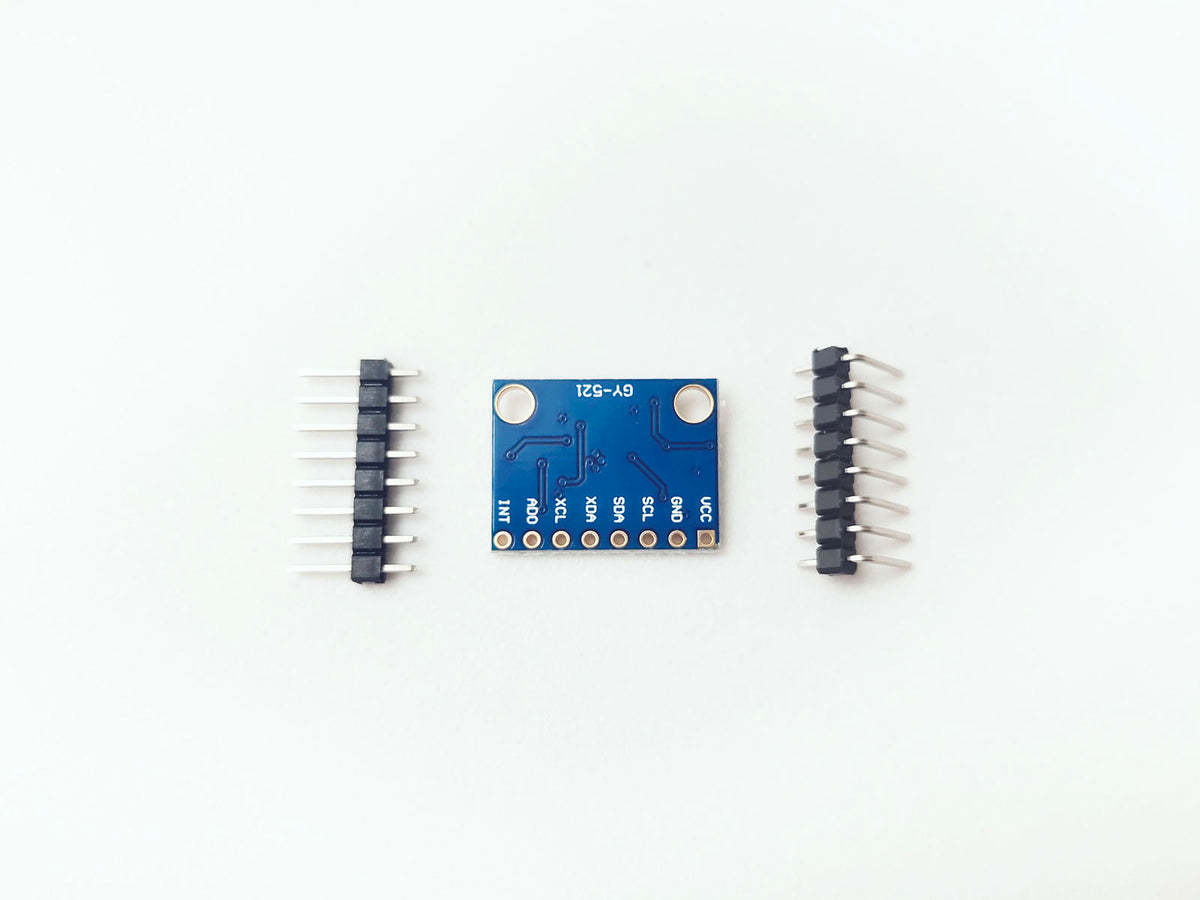

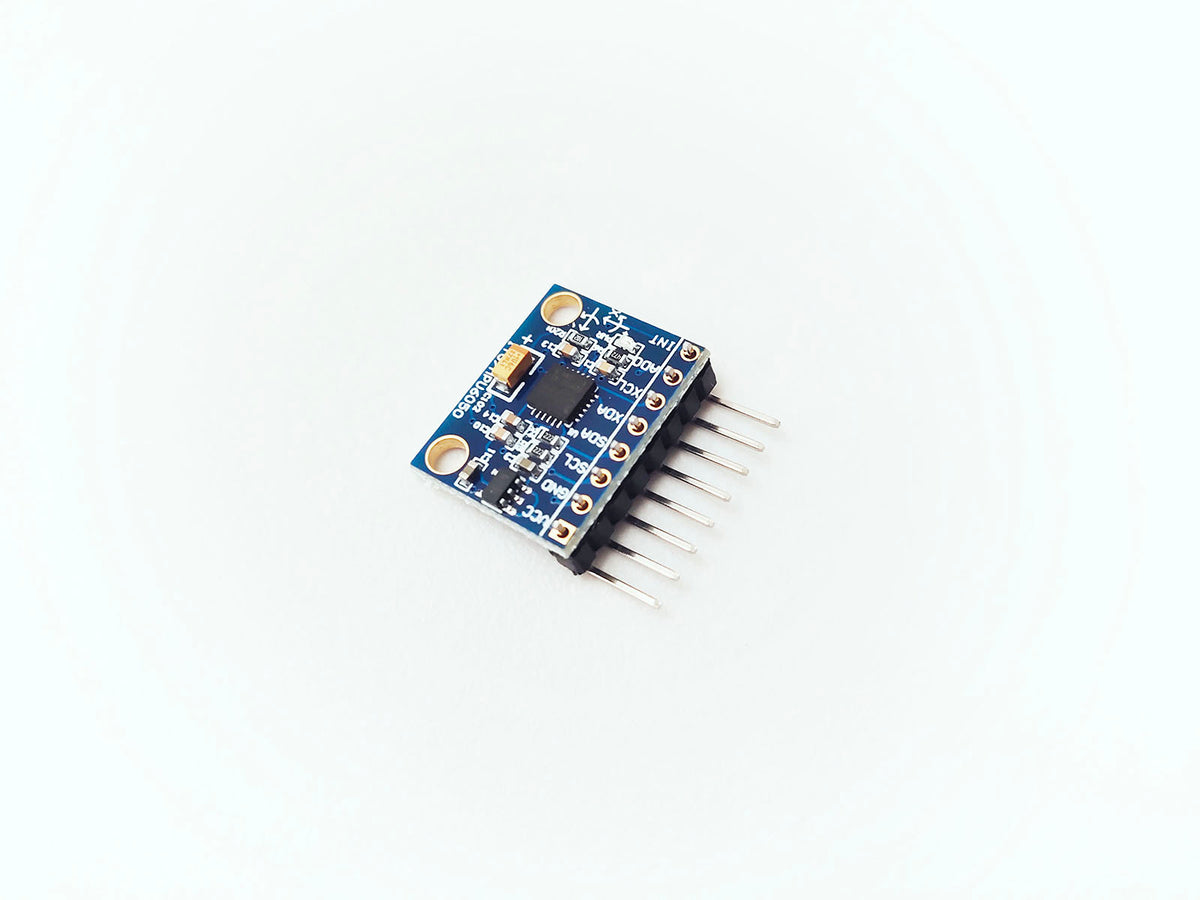

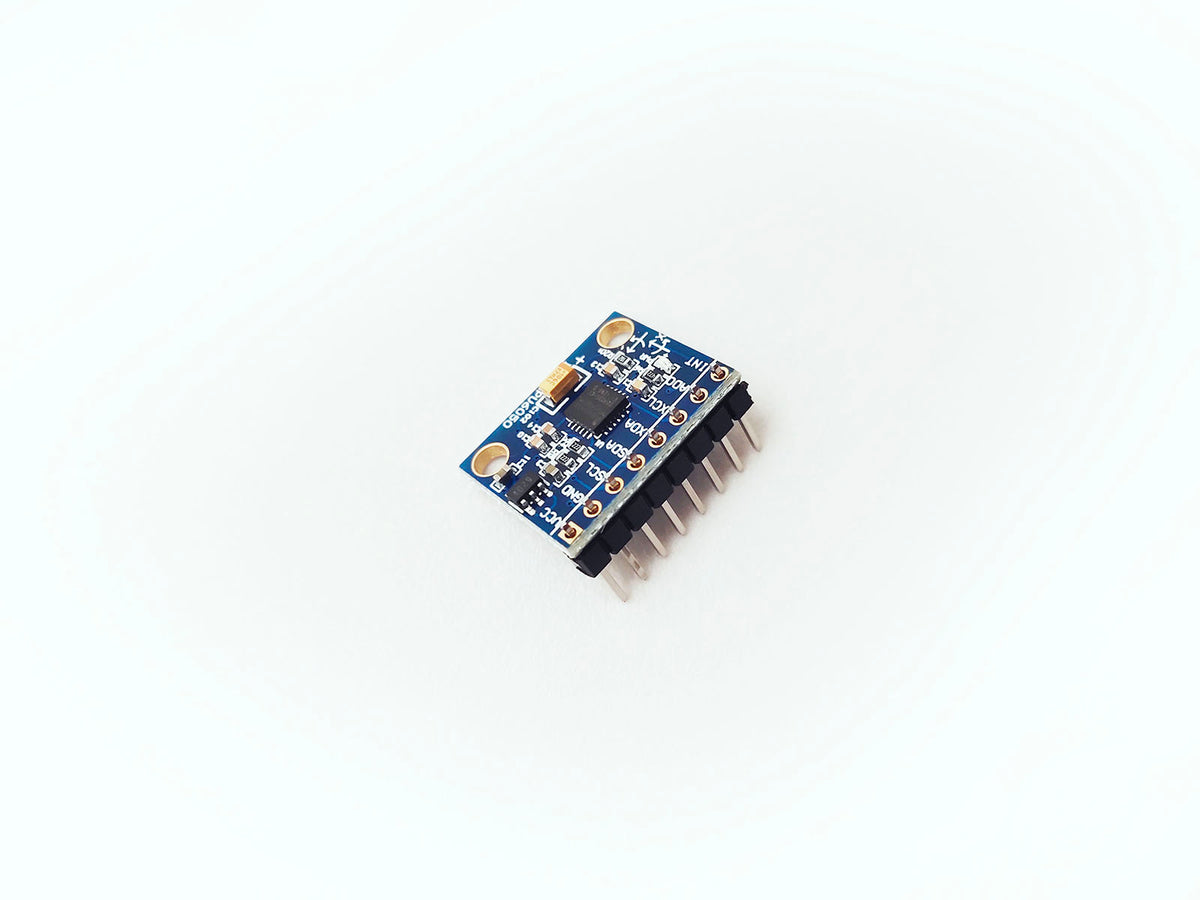

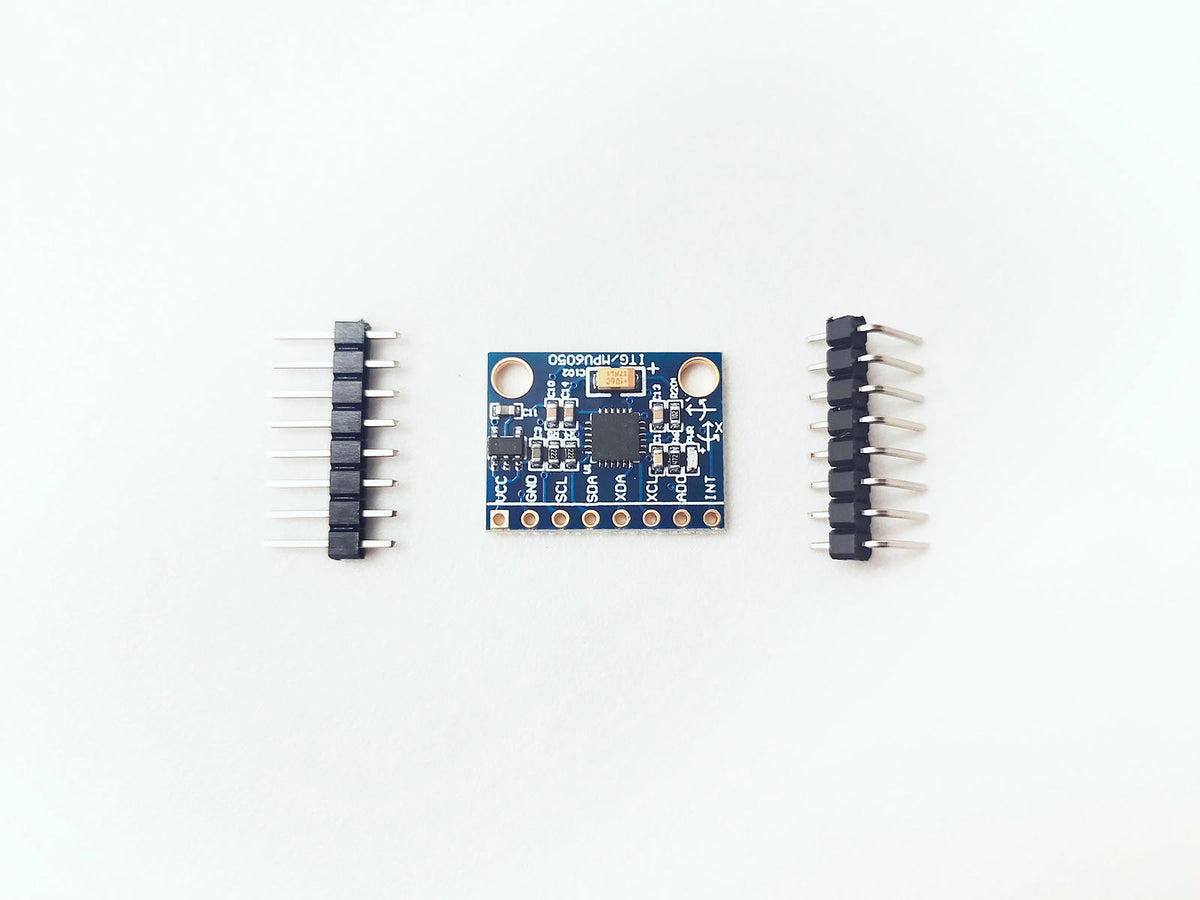

MPU6050 6-DOF ACCELEROMETER AND GYROSCOPE SENSOR
Read acceleration and angular rate over I2C.
Use an MPU6050 module with a three-axis accelerometer and three-axis gyroscope. Select the required measurement ranges and process the data in your controller application.
Before you order: Match power, signal levels and the connector pinout to your host before connecting the module.
Features
| Pins | Name | Description |
|---|---|---|
| 1 | VCC | 3.3/5V Power Input |
| 2 | GND | Ground |
| 3 | IIC_SDA | SDA of I2C |
| 4 | IIC_SCL | SCL of I2C |
| 5 | MPU_INT | Interrupt |
| 6 | MPU_AD0 | Address select, 0x68(GND or no connect), 0x69(VCC) |
- 3.3/5V Working voltage
- I2C Interface (up to 400Kb/s)
- Arduino Library
- Datasheet
| Acceleration measurement range | ±2/±4/±8/±16g |
|---|---|
| Gyroscope measurement range | ±250/±500/±1000/±2000°/s |
| ADC resolution | 16bit |
| Resolution | ACC:16384LSB/g(Max), Gyro:131LSB/(°/s)(Max) |
| Output Speed | ACC: 1KHz(Max), Gyro: 8KHz(Max) |
| Output rate of attitude solution | 200Hz |
| Working temperature | -40℃~85℃ |
| Size | 16x18mm |
Pinout:
References:
Getting started
- Confirm the power, ground and signal pinout.
- Connect to a suitable input or bus on your controller.
- Read a basic sample and check its response in the intended environment.
Frequently asked questions
Can I use the reading directly in my application?
Check the response with your host and the conditions where it will be used. Analog signals and threshold outputs require different processing from digital measurements.
Documentation & downloads
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
