OBD-II TO DB9 CABLE
Connect an OBD-II interface to a DB9 harness.
Use a one-meter OBD-II male-to-DB9 female cable for a compatible connection. Match the pin mapping below to your equipment before use.
Before you order: The DB9 connector is a physical connection and does not convert CAN signals to RS-232. Match the listed wiring to your interface.
Features
- Standard OBD-II male connector
- DB9 female connector
| Length | 1m |
|---|
Pinout & connections
| DB9 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|
| OBD-II | 5 | 4 | 6 | 7 | 14 | 10 | 2 | 15 | 16 |
Frequently asked questions
Does this cable convert communication protocols?
It provides the listed physical wiring. Protocol conversion, signal-level conversion and data processing require suitable interface electronics.
Custom projects & bulk orders
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request. Longan Labs also provides Product Customization Services for suitable electronics projects.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.

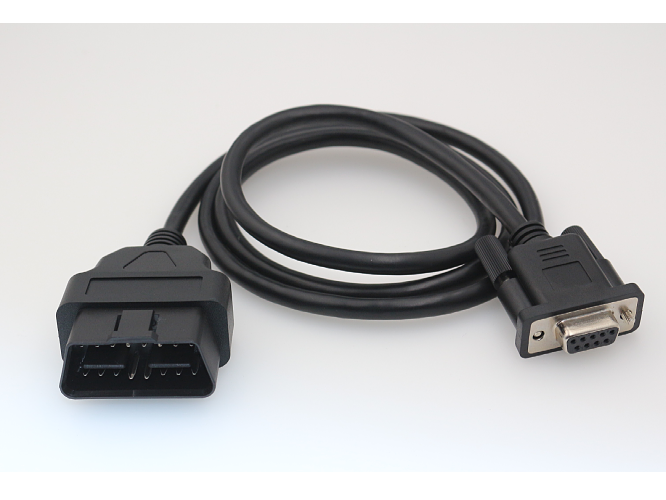

OBD-II to DB9 Cable
SKU: 2020011
