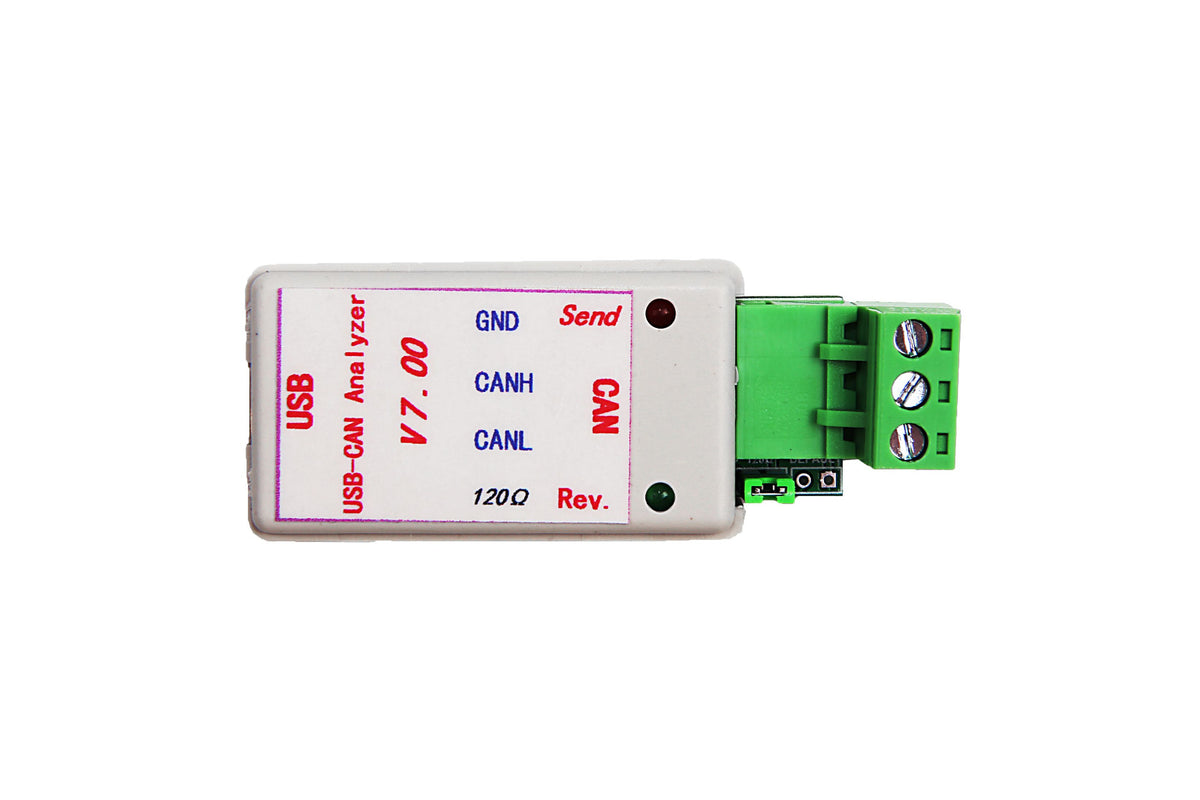

USB TO CAN ANALYZER ADAPTER
Send and receive CAN frames from your computer.
Connect a CAN network to your computer over USB for message inspection and communication tests. The adapter supports Classical CAN, configurable baud rates and software tools for transmitting, receiving and saving frame data.
Before you order: Configure termination for your network: the onboard jumper enables a 120 Ω resistor. CAN bit rate and host throughput are different limits.
Features
- Easily import the acquired CAN-BUS data to your computer for analysis via USB.
- Optimized the conversion protocol, improved conversion efficiency.
- Saving the customized settings automatically.
- Hex number converts to the Decimal number visualized in the software. The decimal number shows both values with the symbol and without symbol, no need to use a calculator.
- Customized receiving ID, easy to debug.
- Visualized CAN-BUS status. Convenient for analyzing CAN-BUS problem.
- Can be saved as Excel or TXT file.
- Receiving data can be refreshed and checked in order.
What's included

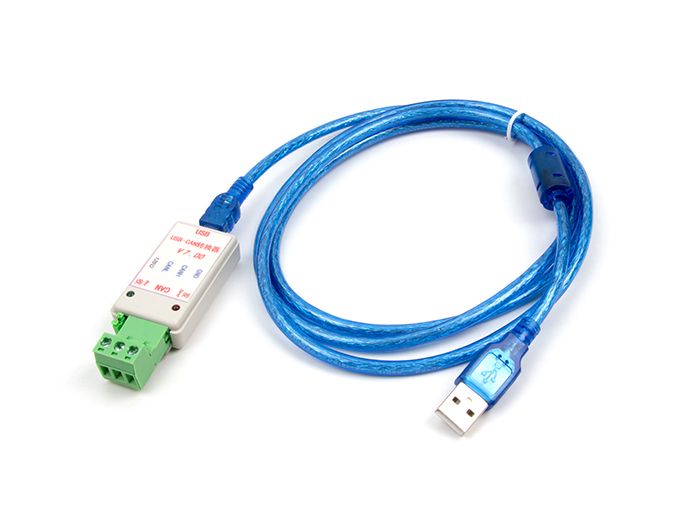

- 1 x USB-CAN Analyzer
- 1 x USB Cable
Hardware features
- Integrated TVS Surge Protection

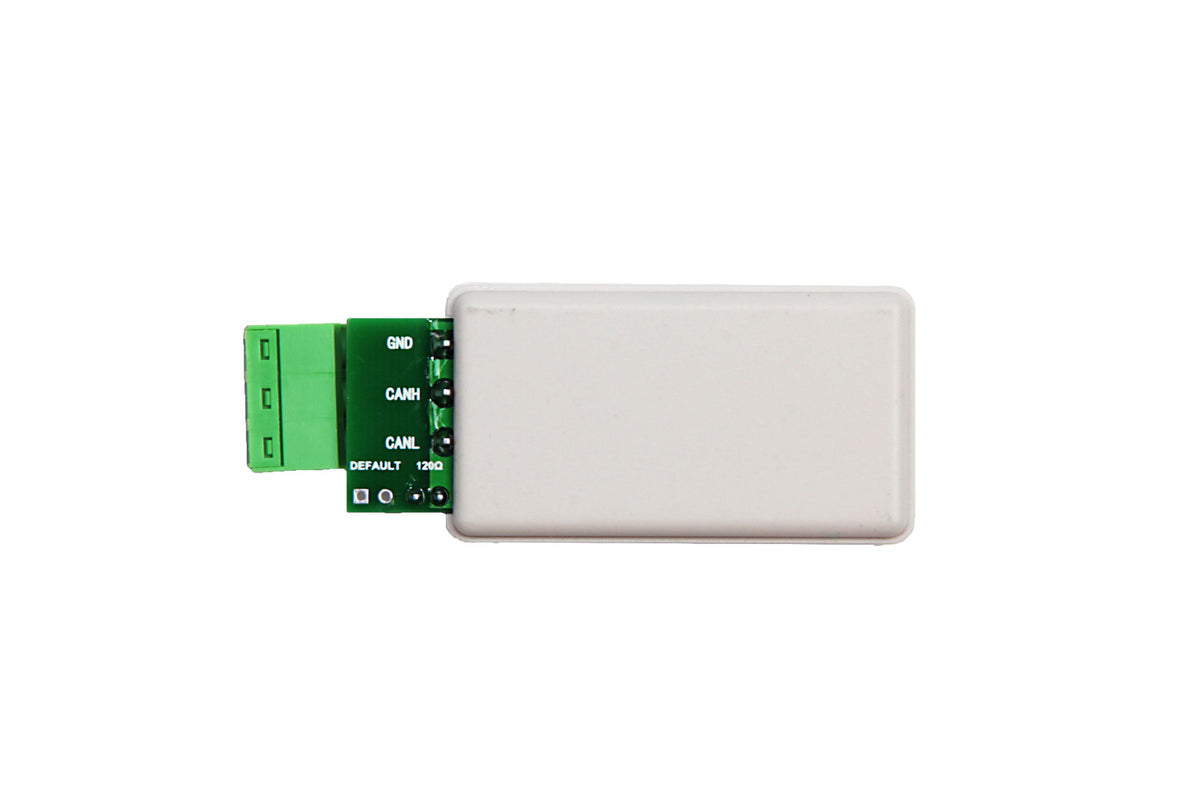

- Including 120 ohms matched resistance.
Communication functions
- Support CAN2.0A(Standard) and CAN2.0B（Expansion）
- CAN baud rate（5K~1M）, customized CAN baud rate.
- CAN send and receive data with time tag，can show the receiving data in order，can refresh data easily.
- Data can be sent by a single frame, multiple frames, manually, regularly, you can even set a certain time to send.
Additional communication modes
- Response to data received from a certain ID.
- Can check CAN Bus status manually.
- Can set to receive from the wanting ID directly, without setting filtering ID or shield ID.
- 4 working mode
- Data can be saved as TXT or Excel.
- Baud rate of virtual COM port can also be modified, default baud rate over 1M, so don’t need to worry about conversion efficiency.
| Standard Mode | CAN communication |
|---|---|
| Loop Mode | Self-testing, in this mode, the analyzer will send and receive data itself, and also send data to CAN Bus. |
| Quiet Mode | Only use to monitor CAN Bus without influence. |
| Loop Quiet Mode | Warm testing |
Configuration & software
- All customized settings saved automatically.
- Easy secondary development，only need to handle 1 command.
- Transparent Transition function
- Software supports English
Documentation & downloads
- USB-CAN Windows Software V7.20
- Windows / Linux Driver
- USB-CAN Instructions and Guides
- Linux user guide
Bulk orders & project enquiries
Need multiple units or a specific configuration? Send your quantity, project requirements and target delivery date so we can review your request.
Discuss your requirementsFor order questions, email info@longan-labs.cc. For technical support, email support@longan-labs.cc.
